Reference Number: 137893

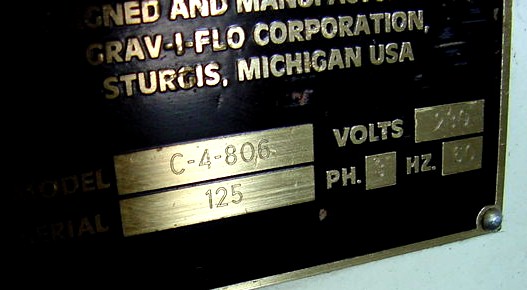

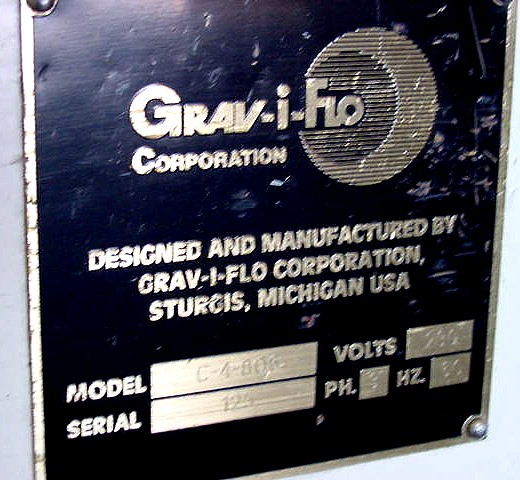

Grav-i-Flo / Grav Co. LLC of Sturgis, Michigan

 Model C-4-806     S/N:125      MFG: 2000

 Specifications
 Barrel Capacity:.......... 5.3
 Load Capacity:............ 21.5
 Force:.................... 2-22 g's
 Space Required:........... 52 x 40 x 54

 Electrical 220/440v (3 Phase)
 Weight 1550 lbs.
 Drive : Variable
 Motor 2 HP

 Here is some information from Grav-i-Flo:

 Construction Details

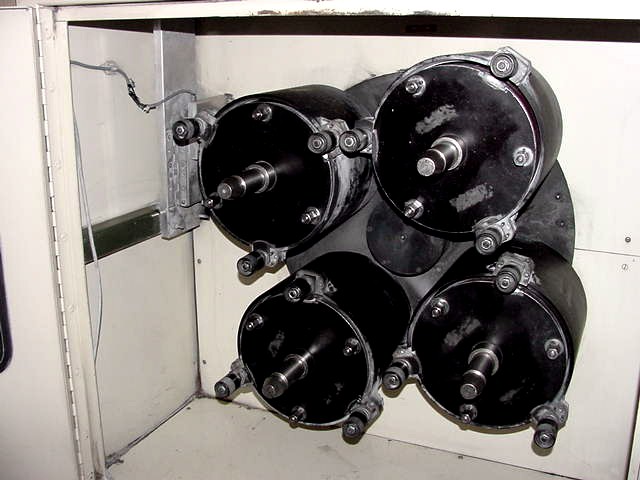

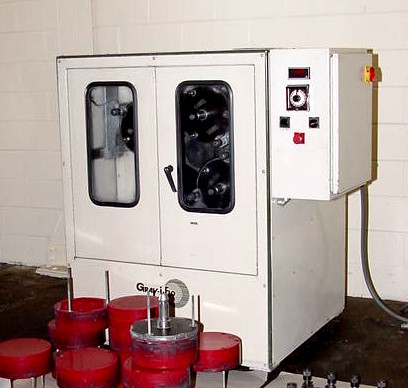

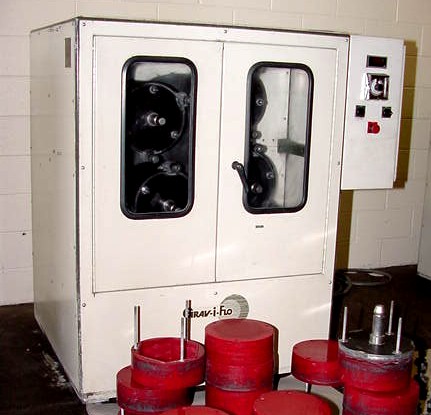

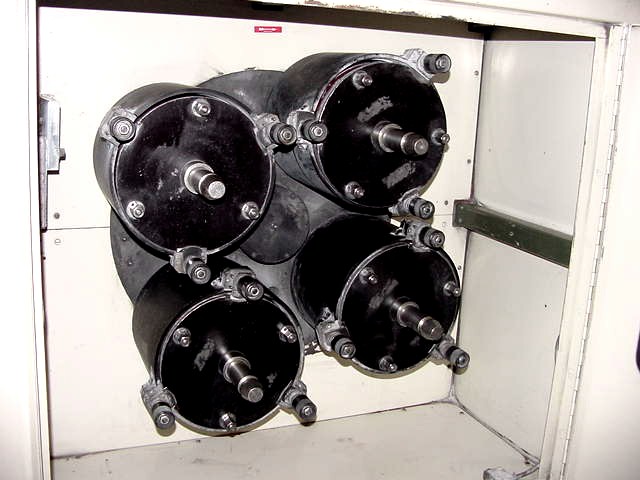

 The Grav-i-Flo C-4-806 Gyra Finish Machine consists
 of a rotating turret on which four hexagonal,
 polyurethane barrels are mounted. As the turret
  rotates, the barrels turn in the opposite direction.
 This unique motion develops strong centrifugal force
 in each barrel, resulting in an extremely high rate
 of work, due to the "weight increase" of the tumbling
 mass.

 The machine is of heavy construction to withstand the

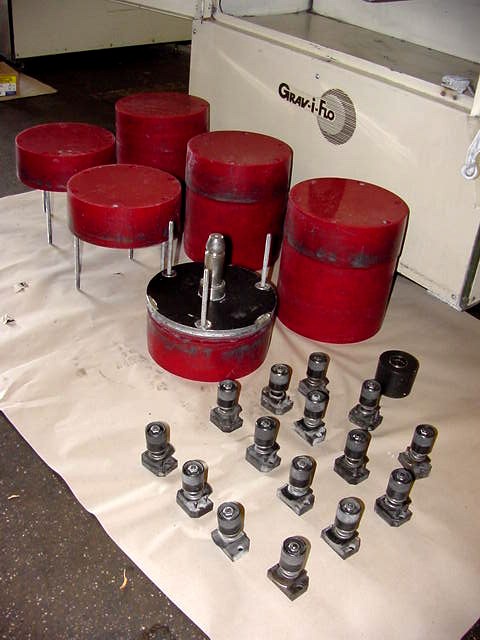

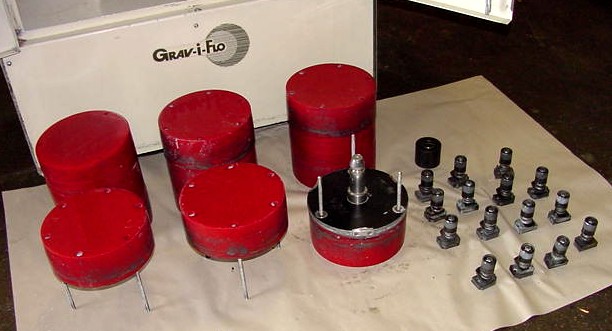

 high "g" forces generated. Entire barrels are molded of
 polyurethane and are inserted into aluminum supporting
 cradles equipped with quick acting locks. For maximum
 utilization of production time the operator may unload
 and reload an extra set of four barrels while the
 machine is operating.


 Applications

 The Grav-i-Flor C-4-806 Gyra Finish Machine can be
 used for wet or dry processing with a variety of medias
 and compounds. Results range from the finest of
 finishes on jewelry and high quality machined parts to
 very aggressive deburring. The "g" forces produced in
 this machine result in less part on part impingement
 than often encountered in tumbling barrels or vibratory
 equipment.

 Parts can be finished or deburred more than twenty
 times faster than a conventional tumbling barrel and
 about eight times faster than vibratory finishing
 equipment.

 Applications vary from small and miniature pieces to
 larger parts, that would otherwise require extensive
 hand finishing. Very small abrasive medias that do not
  work well in tumbling barrels or vibratory machines,
 because of the very slow cut or finish, are very well
 suited for the Gyra machine.
