Reference Number: 138039

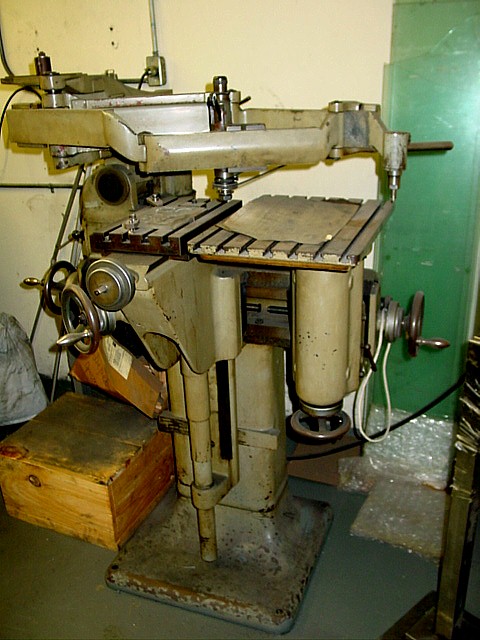

Deckel Three-Dimensional PantographPrice: On Request
Engraving & Profile Engraver
Model: GK-21 S/N: 55576 NEW: 1970
Pantograph Ratio:
Maximum: 1:1.5
Minimum: 1:10
Size of Work Table: 7-7/8 x 13-3/4"
Max. Distance, Spindle Nose to top
of work table: 13-3/4"
Range of Work Table:
Longitudinal: 5-7/8"
Cross: 11-3/4"
Size of copy table: 12-5/8" x 17-3/4"
Maximum distance, pantograph arm
to top of copy holder: 5-7/8"
Copy table swivel range: 360 degrees
(23) Spindle Speeds: 475 - 9,500 rpm
Maximum Collet Capacity: 5/16"
Approx. Dims. 50"W x 41"D x 60"H
Approx. Weight 1,676 Lbs.
Equipped With:
3/60/220 Volt Two-Speed Drive Motor & Electrical Controls
* * F.O.B. HARRISON, N.J * * *
