Reference Number: 138072

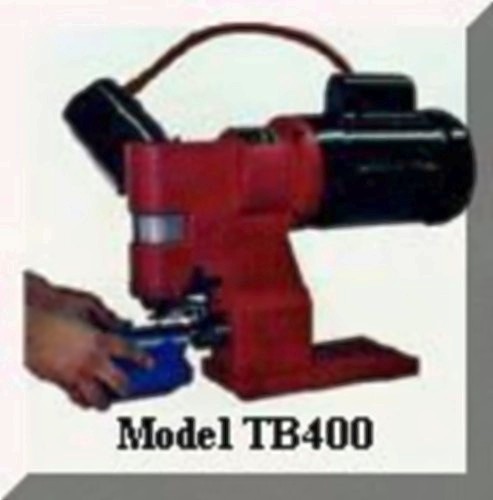

New Heck Tubing NibblerPrice: $2,395
Model: TB400
Features:
The Tubing Nibbler is designed for forming tube ends for 1/2" I.D.
or larger. The high speed tooling cuts material up to 1/8" mild
steel. Interchangeable die anvils are available in 1/4" increments
from 1/2" to 2".
Acetate templates can be made of slightly larger tubing to slip over
the part to be cut, by splitting then expanding a same size tube or
using a larger diameter tubing. Clamping of template to the tubing
is easy by use of a simple hose clamp. Adjustable stroke height
allows for template tracing and punch sharpening.
Specifications:
Cutting Capacity: 1/8"
Mild Steel: .125"
Plastic: 3.1mm
Stainless: .080"
Exotic Metals: 2mm
Throat Depth: 4", 101mm
Strokes Per Minute: 1,725
MOTOR - 3/4 HP 110/220V, 1 Phase
WEIGHT: 130 LBS
*Machine includes 2" anvil, 1-1/4" punch & die, 1-2" clamp, work
light, wrenches and instructions.
