Reference Number: 138076

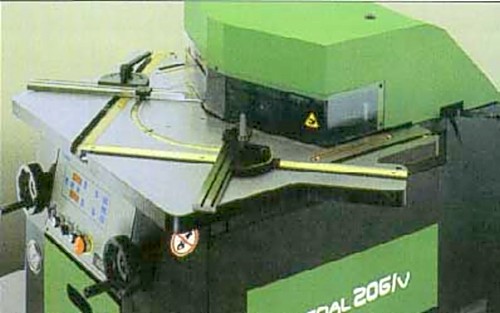

New Heck Hydraulic Notcher
 Variable Angle
 Model: 2006VA

 Features:
 The cutting angle can be adjusted from 30° to 140º by means of two
 hand wheels located at the front of the machine
 Automatic lower blade adjustment ensures the constant and accurate
 cutting and guarantees the total rigidity of the head and guide
 columns during the cutting stage
 Indents every 15° for fast set-up
 Adjustable position hydraulic hold downs
 An electronic stroke adjuster allows you to set different upstrokes
 and downstrokes, enables corner notches and reduces the cutting cycle
 whenever the whole length of the blade is not needed to execute the
 cut
 A handy internal depth adjuster makes it possible to notch strips
 whose length and been previously measured on the scaled ruler

 Specifications:
 Blade Length: 8"
 Angle: 30 - 140 Degrees Variable
 Capacity, Mild Steel: 1/4" (.250)
 Capacity, Stainless Steel: 30 - 60 Degrees = .118",
   60 - 140 Degrees = .157"
 Motor: 4 HP, 220/440V
 Strokes Per Minute: 55
 Oil Tank: 13 Gallons
 Table Size: 47" x 30-3/4"
 Size (W x D x H): 47" x 47" x 47"
 WEIGHT: 2,600 LBS
