Reference Number: 138165

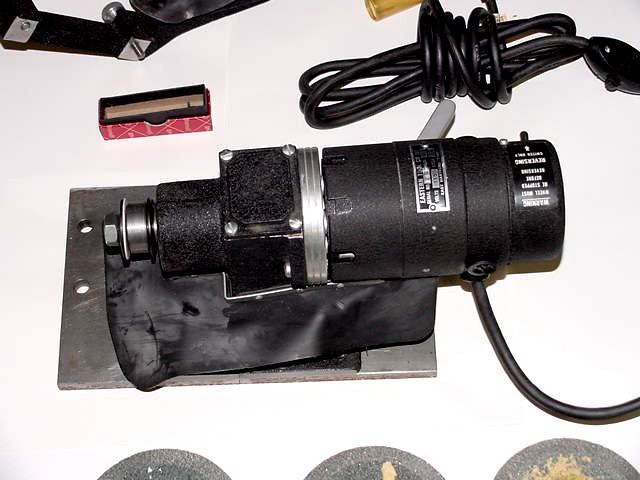

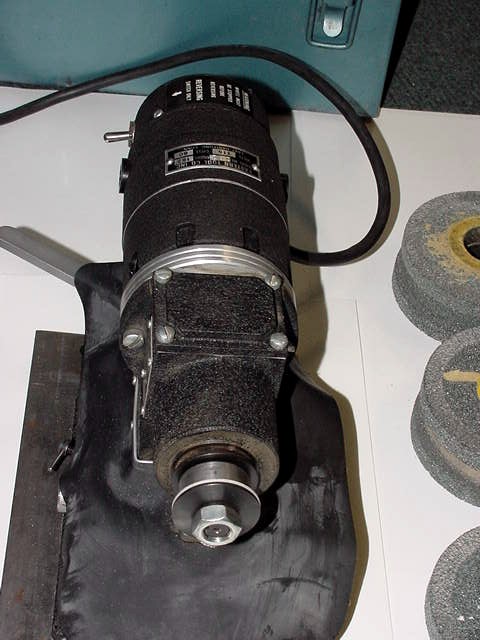

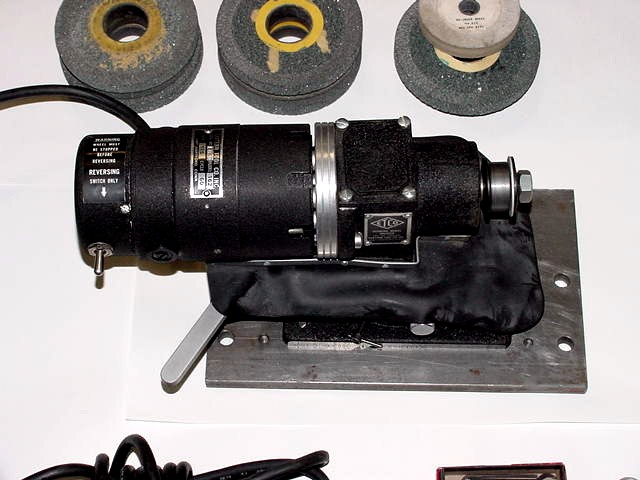

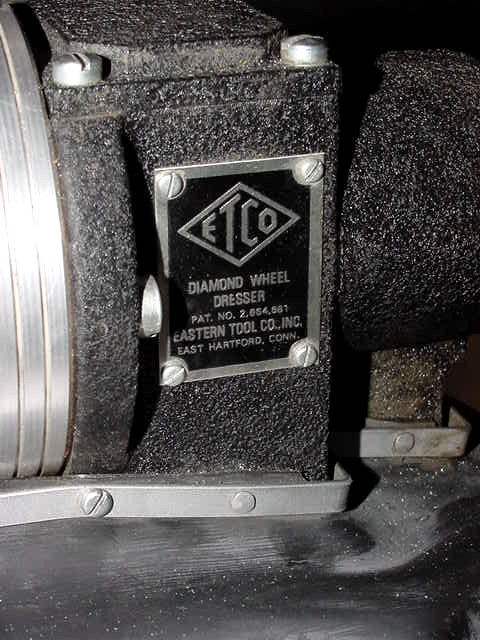

ETCO DIAMOND WHEEL DRESSER/DRESSING MACHINE
 COMPLETE WITH RADIUS DRESSING ATTACHMENT

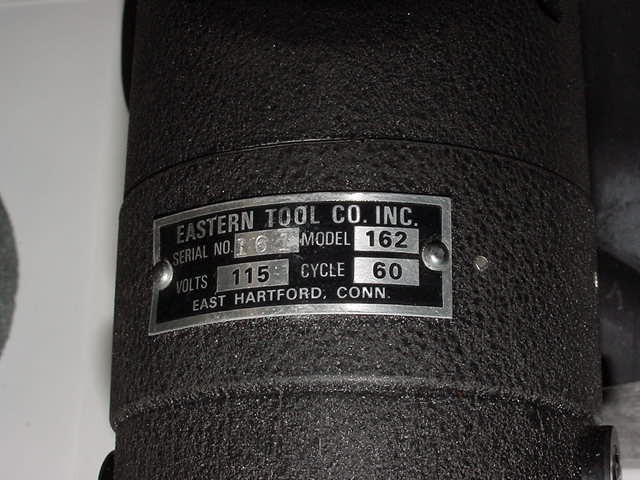

 MODEL:  162      S/N:  161    MFG:  1970's

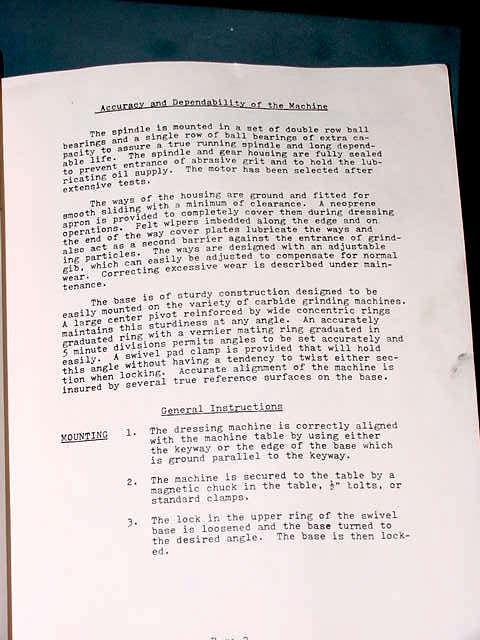

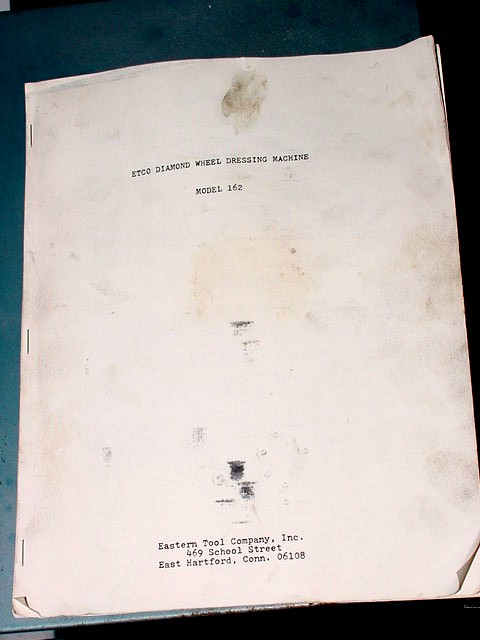

 THE FOLLOWING IS FROM THE FACTORY LITERATURE:
 Applications:
 Slide feature allows dressing of angles on periphery and face wheels
 Attaches quickly to the work table eliminating the need for special
 wheel truing jigs
 Restores original configuration, repeatedly, effortlessly, precisely
 Dresses your diamond wheel right on the spindle for the ultimate
 consistent precision
 All your wheels will cut at top efficiency for maximum production and
 run consistently true for the finest finishes
 Rugged construction assures true running and long life
 Silicon Carbide and Aluminum Oxide grinding wheels available from
 stock

 Features:
 Built-in Vernier Scale for Precise Angular Adjustment of: 5' through
 360º
 3" Dressing Wheel Travel on Ground Dovetail Ways
 Dressing Wheel Size: 1/2" x 1/2" x 3"
 Overall length:  10"
 Over Height:  6"
 Shipping Weight:  32 lbs.

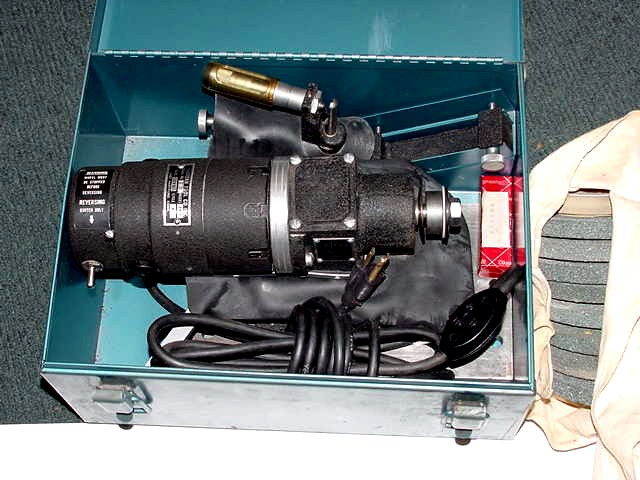

 Metal Storage Case
 Double and single row shaft bearings maintain precise alignment for
 smooth and accurate dressing
 The machine is designed to function properly in the presence of
 abrasive dust to provide years of trouble free, and accurate service

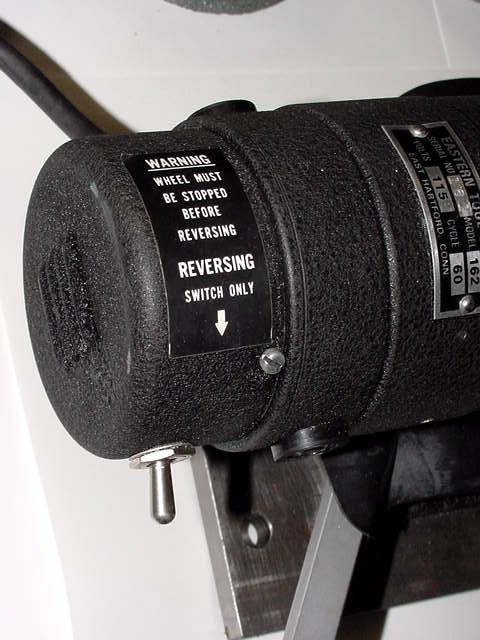

 Operates on 110 volt 60 cycles

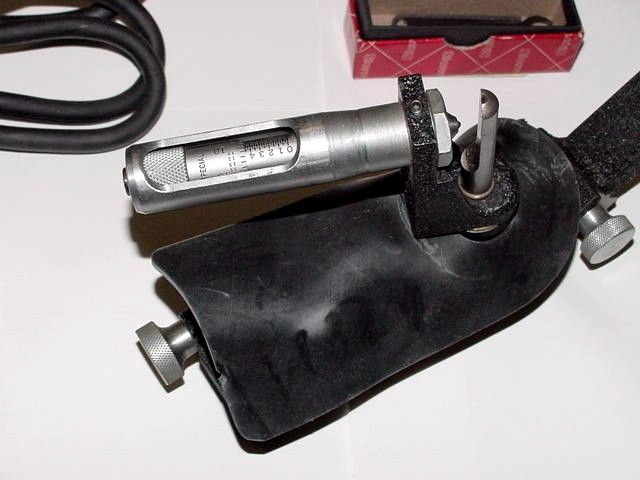

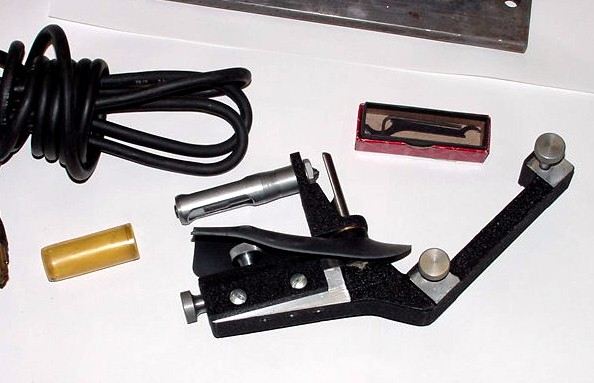

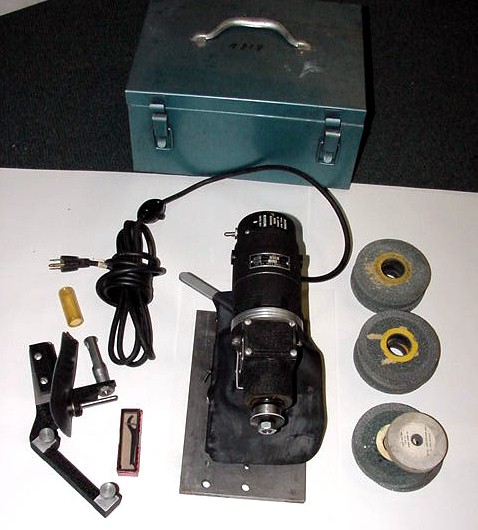

 Optional Radius Attachment (included):
 Swing of Radius Attachment:  180º
 Micrometer Incremental Advance of Dresser:  .001"

 PARTS & SERVICE THRU ALL FIVE TOOL CO. OF BRISTOL, CT. SEE
 THE FOLLOWING WEB PAGES:
 http://www.all5tool.com/pages_all5/all_5_tool_products.htm
 http://www.all5tool.com/pages_all5/a5_wheel_dresser_162.htm
