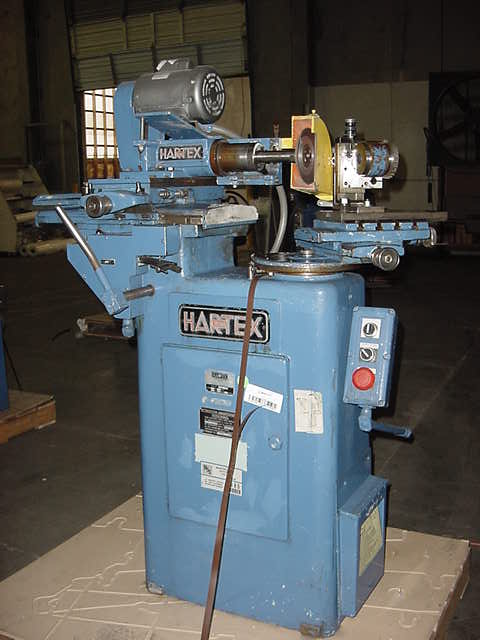

HARTEX RADIUS-TANGENT TOOL & CUTTER GRINDER

 MODEL: #3    S/N: 3-161

  SPECIFICATIONS:
 CAPACITY:
 MAXIMUM CUTTER DIAMETER............................. 10"
 RADIUS-CONCAVE...................................... 5-1/2"
 RADIUS-CONVEX....................................... 5-1/2"
 MAXIMUM LENGTH OF FLUTE ACCOMMODATED WITH
 2" WHEEL SHAFT EXTENSION............................ 7"

  WHEELHEAD MOVEMENTS:
 LATERAL WHEELHEAD MOVEMENT......................... 5- 1/2"
 TRANSVERSE, QUICK ADJUSTMENT ON TEE BOLT SLIDE..... 6- 3/4"
 TRANVERSE, FINE ADJUSTMENT SCREWFEED WITH
 BACKLASH ELIMINATOR................................ 3- 1/4"
 TRANVERSE TOTAL.................................... 9"

  WORKTABLE MOVEMENTS:
 PARALLEL TO CUTTER AXIS, FINE ADJUSTMENT,
 SCREWFEED.......................................... 3- 1/4"
 PARALLEL TO CUTTER AXIS, QUICK ADJUSTMENT, TEE
 SLOT SLIDE......................................... 6"
 PARALLEL TO CUTTER AXIS TOTAL...................... 9- 1/4"
 NORMAL TO CUTTER AXIS, QUICK ADJUSTMENT, TEE
 SLOT SLIDE......................................... 10"
 NORMAL TO CUTTER AXIS, FINE ADJUSTMENT............. 2- 3/4"
 NORMAL TO CUTTER AXIS TOTAL....................... 12- 3/4"
 WORKTABLE SIZE.................................... 8" X 9"
 VERTICAL MOVEMENT OF WORK HOLDER.................. 2- 3/4"
 ROTARY MOVEMENT OF WORKTABLE ON PRELOADED
 TAPERED ROLLER BEARINGS (GRADUATED IN DEGREES).... 210 DEG.
 CENTERLINE OF WHEELHEAD SPINDLE TO PIVOT POINT
 OF WORKTABLE...................................... 7-3/4"

  GRINDING WHEEL:
 SPINDLE SPEED ................................. 4,700 RPM
 MINIMUM/MAXIMUM DIAMETER.......................... 4"/6"
 FACE/THICKNESS................................... 1/8"/1/2"
 BORE.............................................. 5/8"

 APPROXIMATE WEIGHT .............................. 900 LBS.
 APPROX. FLOOR SPACE ............................. 44" X 24"

  EQUIPPED WITH:
 "INDENT ATTACHMENT" - ELECTRICALYY ACTIVATED FOR POSITIVE
  GRINDING & BLENDING OF A TRUE RADIUS WITH TWO STRAIGHT
  SURFACES INSURING PERFECT TANGENCY OF THE RADIUS WITH THE
  STRAIGHT SURFACE.  THE INDENT FIXTURE AUTOMATICALLY LOCKS
  THE GRINDING WHEEL SLIDE AT THE PROPER CENTER POINT
  LOCATION AND AUTOMATICALLY RELEASES THE WHEEL HEAD SLIDE
  AT THE END OF THE RADIUS ARC ENABLING THE GRINDING
  WHEEL TO BYPASS CENTER.

 WORKHEAD w/VERTICAL SLIDE

 ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
