Reference Number: 138198

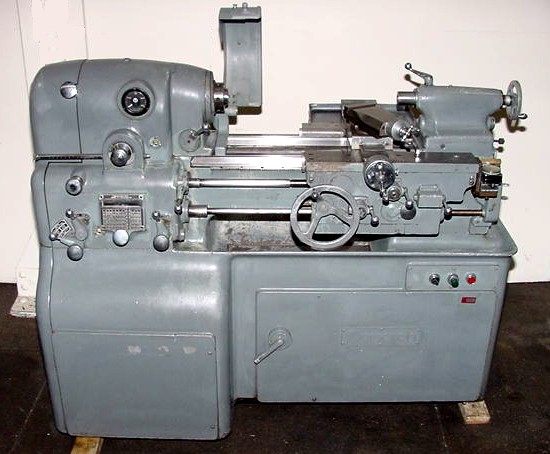

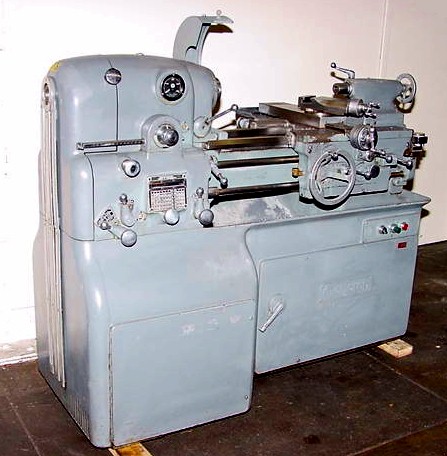

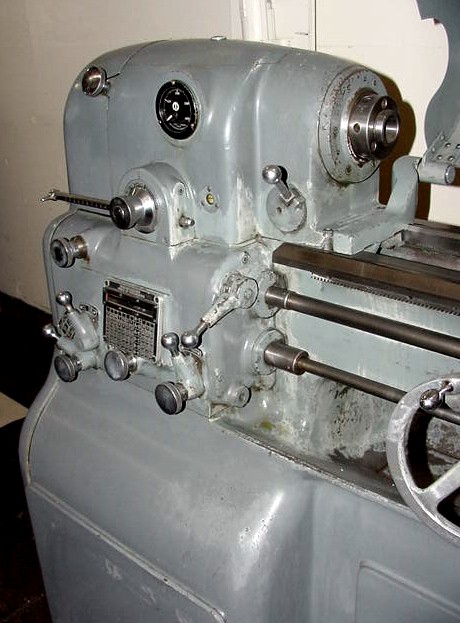

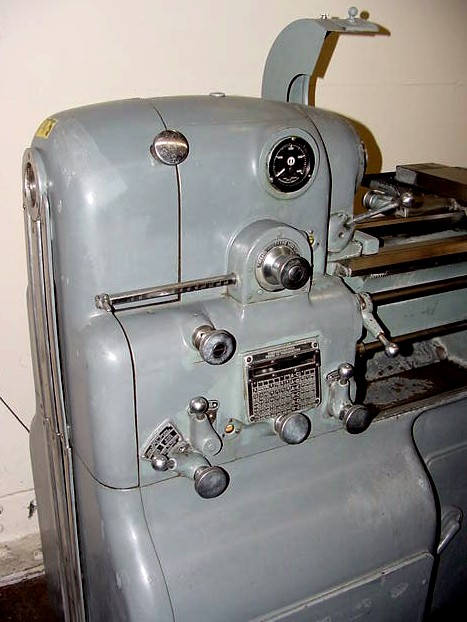

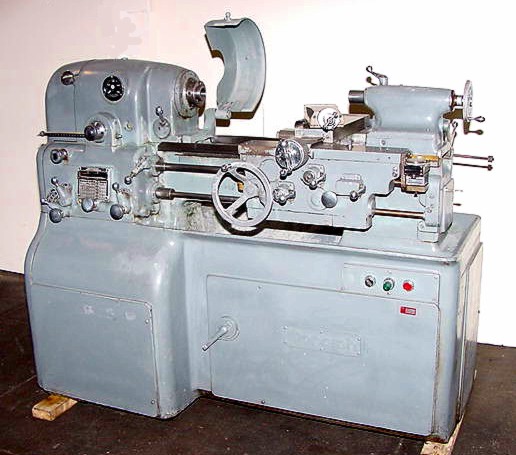

10" X 20" MONARCH PRECISION TOOLMAKER'S LATHE,

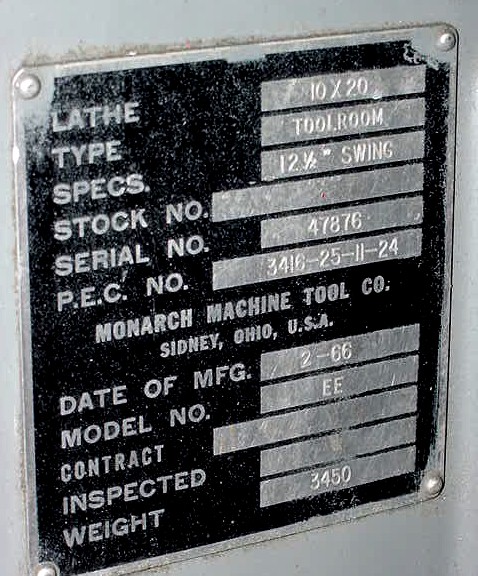

MODEL: 10EE, S/N: 47876, NEW 1966
SPECIFICATIONS:
SWING OVER BED ............................ 12-1/2"
SWING OVER CROSS SLIDE .................... 7-1/4"
DISTANCE BETWEEN CENTERS .................. 20"
HOLE THROUGH SPINDLE ...................... 1-13/32"

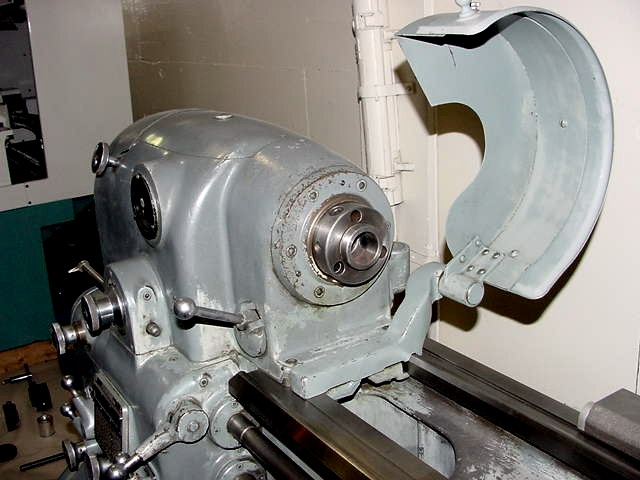

SPINDLE NOSE, CAMLOCK, TYPE ............... D1-3"

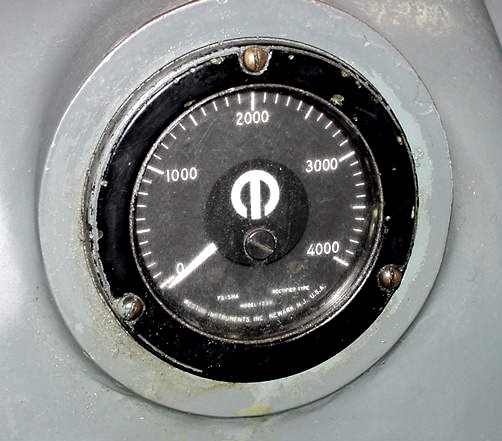

INFINITELY VARIABLE SPINDLE SPEEDS ........ TO 4,000 RPM

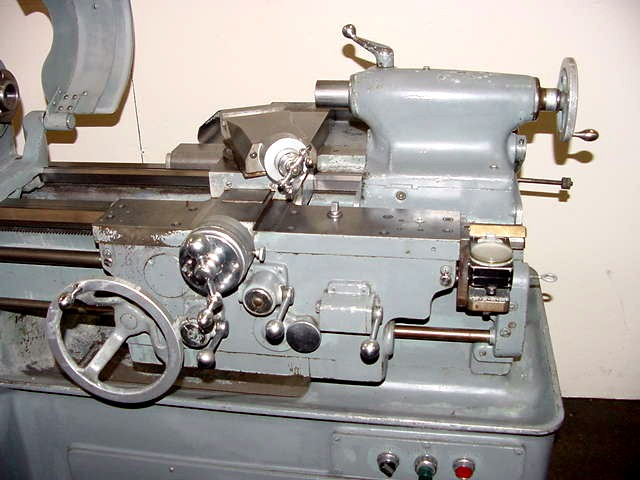

HEADSTOCK & TAILSTOCK SPINDLE CENTER TAPER #2 MORSE
TAILSTOCK SPINDLE DIAMETER ................ 1-1/4"
TAILSTOCK SPINDLE TRAVEL .................. 3-1/2"

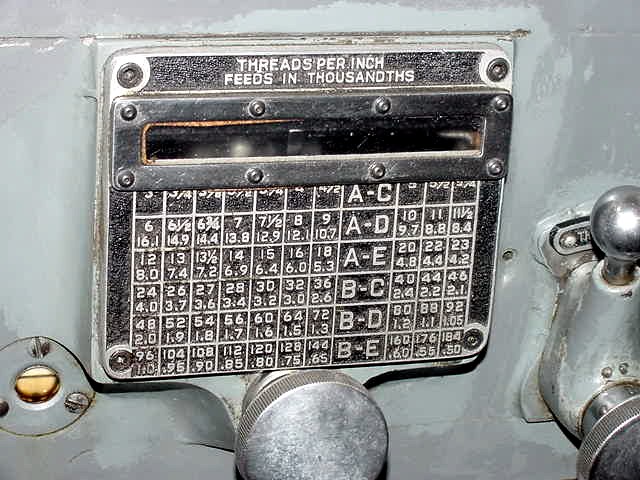

THREADS, INCH (60) ........................ 3 - 184 T.P.I.
FEEDS, LONGITUDINAL (50) .................. .0005-.0161 IPR
APPROXIMATE WEIGHT ........................ 3,350 LBS.
APPROXIMATE FLOOR SPACE ................... 61" x 30"
EQUIPPED WITH:

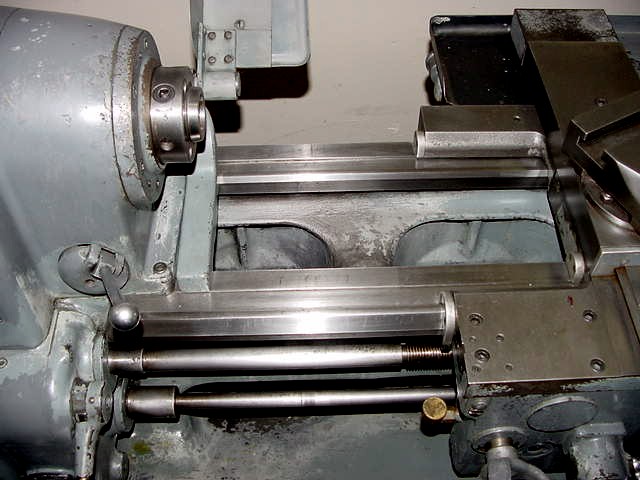

* FLAME HARDENED BED WAYS

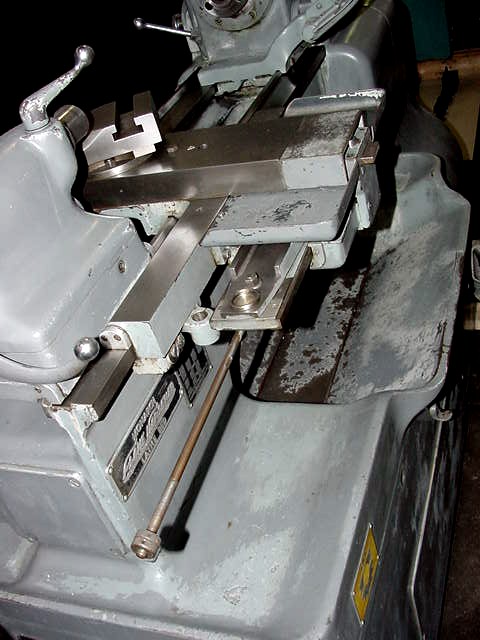

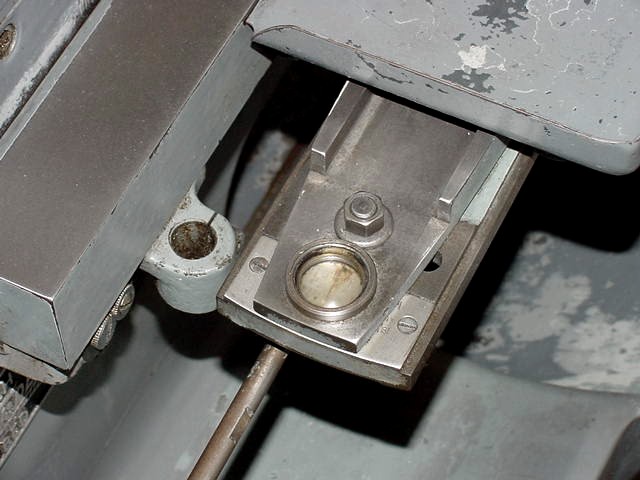

* TAPER ATTACHMENT

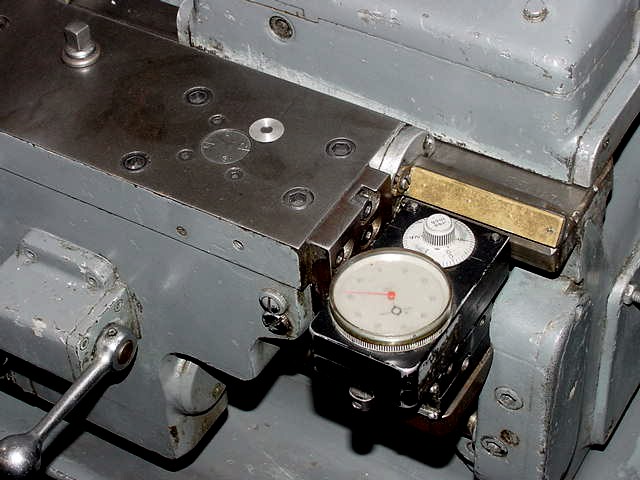

* TRAVEDIAL FOR LONGITUDINAL CARRAIGE TRAVEL
* 5 H.P. DRIVE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
OUT OF FORTUNE 500 CO. R&D LAB
