Reference Number: 138217

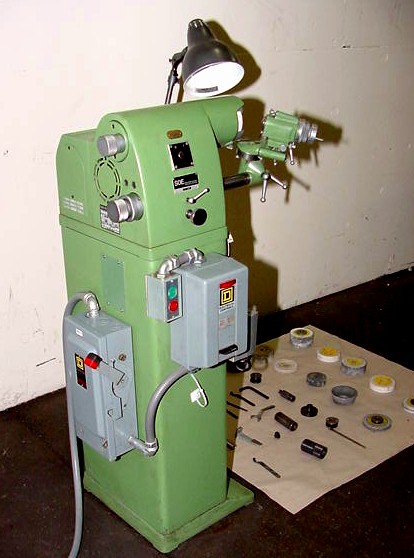

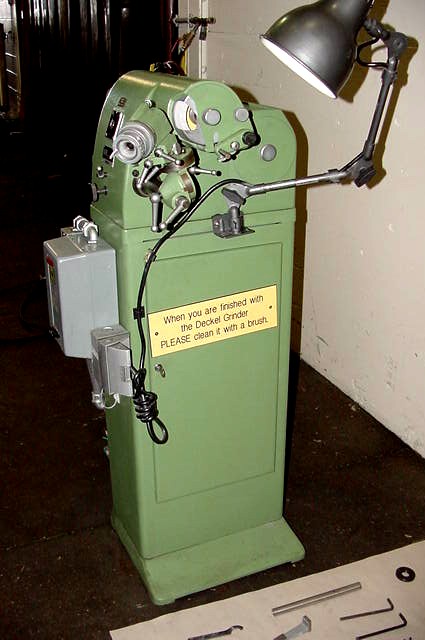

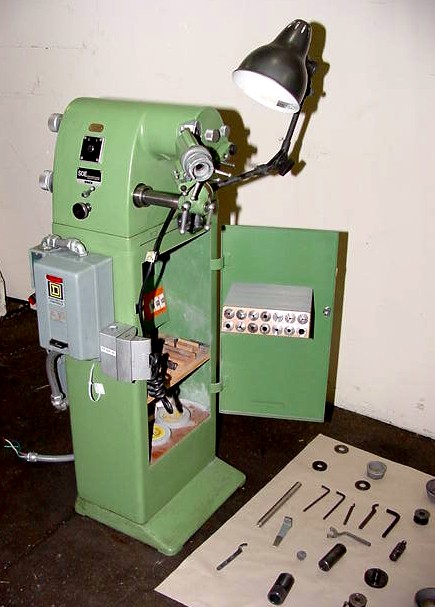

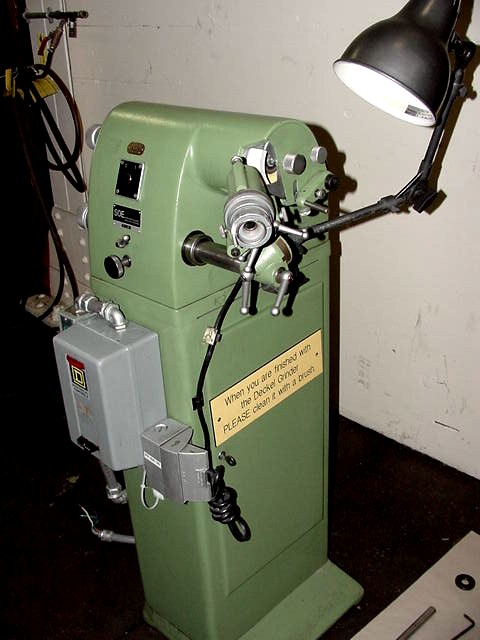

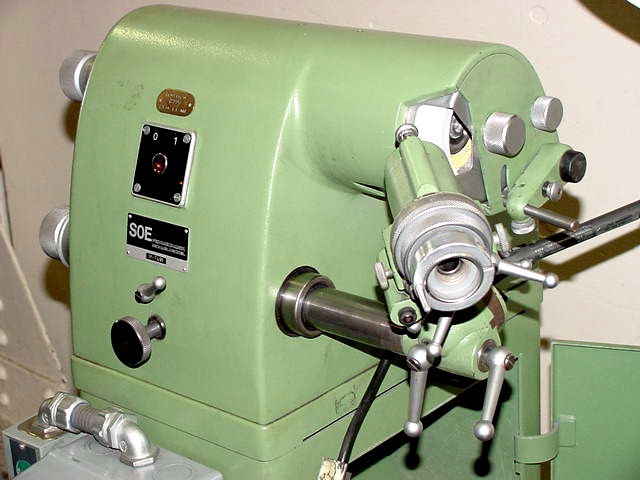

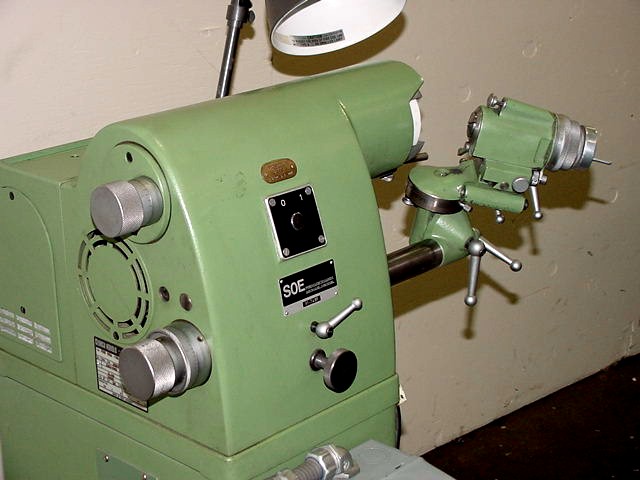

             DECKEL SINGLE LIP CUTTER GRINDER

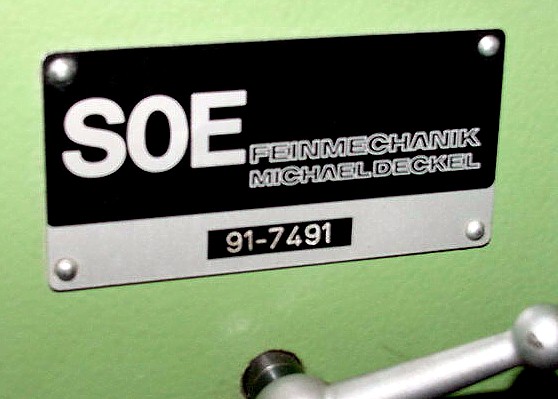

   Model #SOE       S/N: 91-7491       New: 1991

 Uses 4" Dia. x 1" Face x 1/2" Cup Style Wheels
 Grinding Wheel Speed:  4500 RPM
 Lateral Traverse of Index Head Slide for Off Center Radii Both Ways:  3/8" Max.
 Maximum Relief Angle for Right Hand Tools:  45 Degrees
 Maximum Relief Angle for Left Hand Tools:  15 Degrees
 Number of Registers in Index Plate:  12
 Maximum Collect Capacity:  5/8"

 Approx. Weight:  143 Lbs.
 Approx. Dims.:  26" x 22- 1/2" x 12- 3/4"H

 Standard Features:
 Axial Adjustable Grinding Spindle
 Wheel Dresser with Diamond

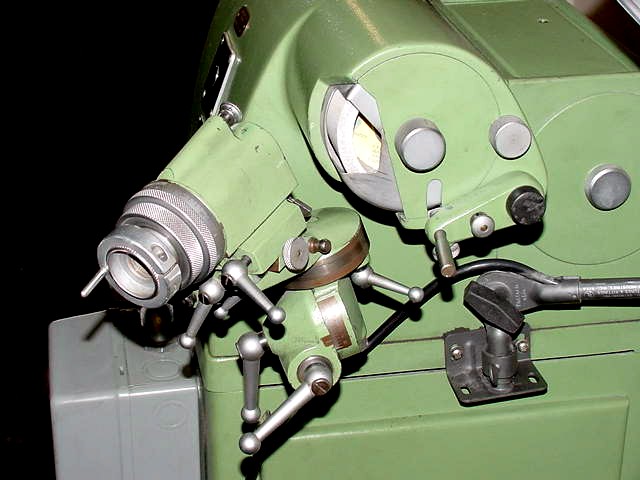

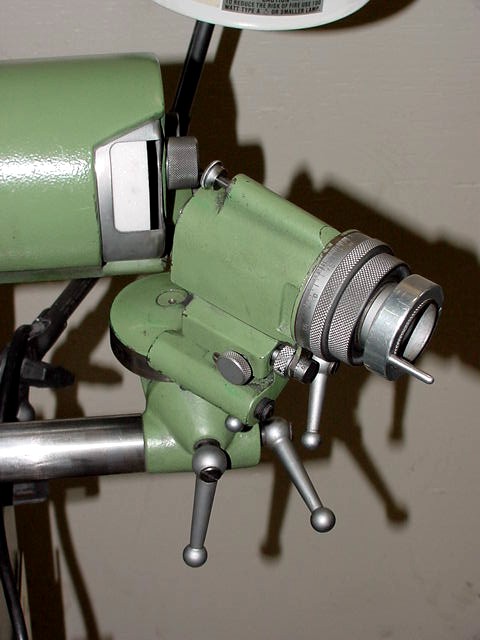

 Manual Hand Movement of Work Holder Head
 Wheel Guard
 Micrometer Adjustment of Wheel In & Out and Tool Slide
  In & Out
 Built-In Dust Collector

 Equipped With

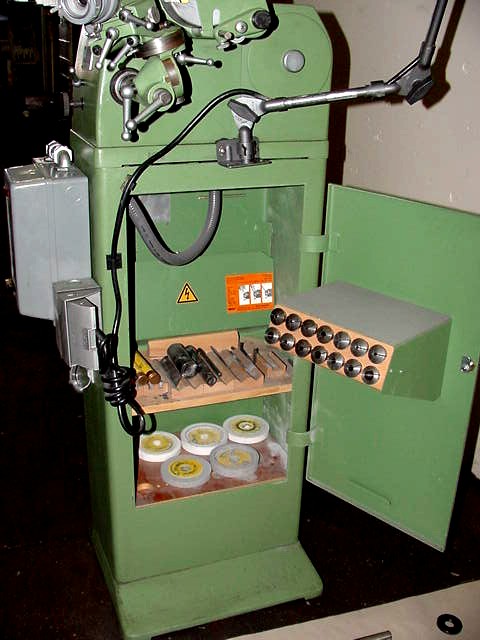

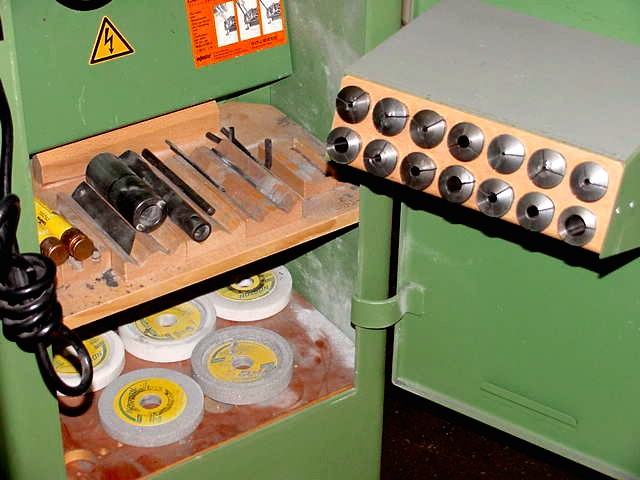

 Bench Model w/Optional Factory Cabinet Base for Tool Storage

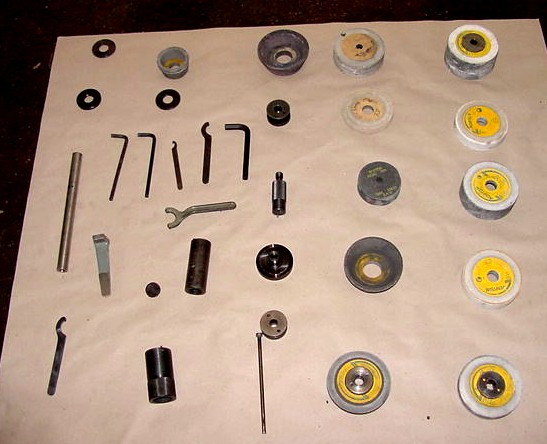

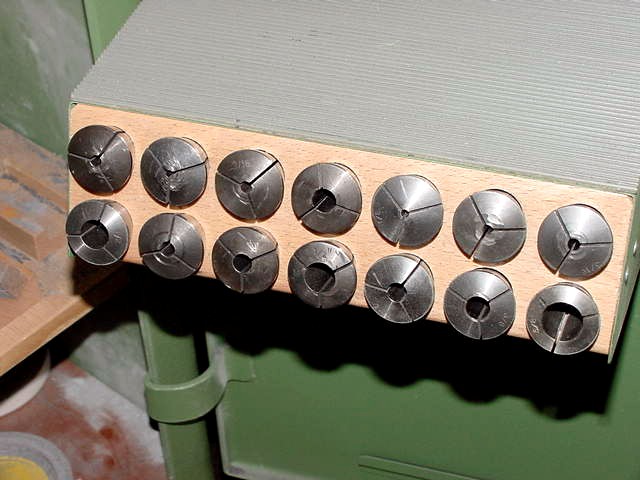

 Collets:  1/8, 1/4, 1/2, 3/8, 5/8, 5/32, 3/16/ 5/16
 Grinding Wheels:  7 Cupped Wheels, 6 Flat Wheels (Some Unused)

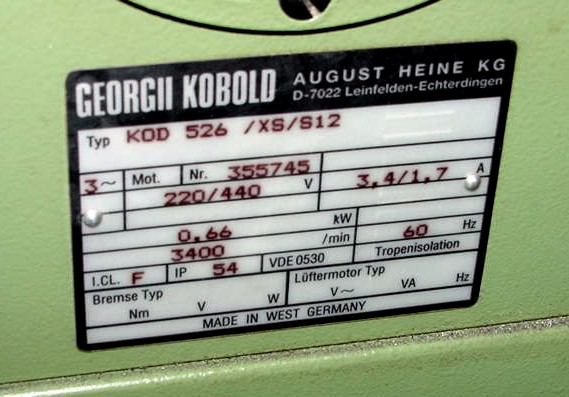

 Machine is Wired for 3/60/220-440 Volts

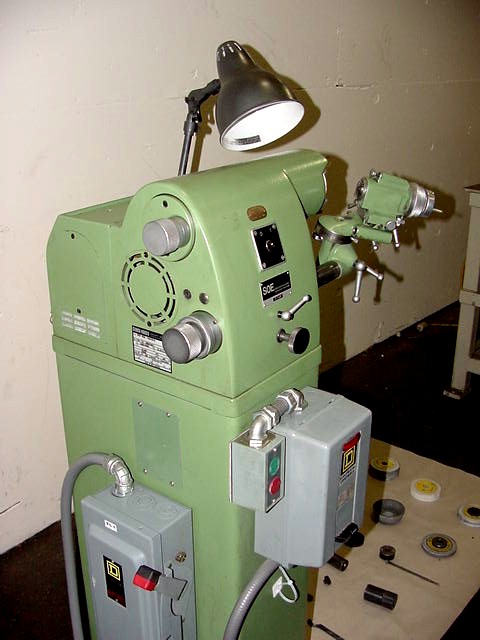

 "Square D" Electrical Push Button On/Off Box Connected to
  "Square D" Electrical Disconnect/Power ON Box

 http://www.gti-usa.com/PDFs/Deckel/SO-SOE_Brochure.pdf

 http://www.gti-usa.com/pages/metal_deckel_SOE.aspx



 ** Inspect Under Power In Our Harrison, N.J. Warehouse **
 ** Absolutely "As New" Condition & Appearance
   - Original "Deckel Green" Paint **
