Reference Number: 138229A

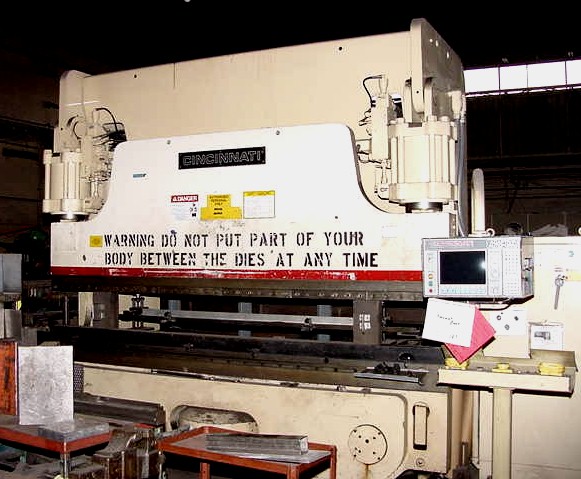

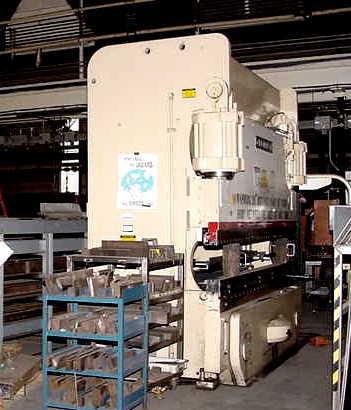

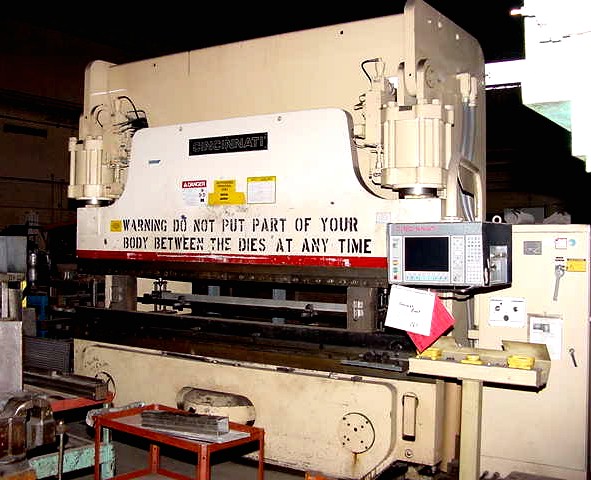

Price: $114,500350 TON X 12' CINCINNATI CNC HYDRAULIC PRESS BRAKE CAPACITY......................................... 350 TON
MODEL 350-AF-10 S/N 46894 NEW 1990
OVERALL BED LENGTH .............................. 144"
DISTANCE BETWEEN HOUSINGS........................ 126"
BENDING CAPACITY ................................ 12' X 1/2"
RAM STROKE (VARIABLE)............................ 10"
OPEN HEIGHT...................................... 18"
CLOSED HEIGHT.................................... 8"
THROAT........................................... 10"
HIGH APPROACH SPEED ............................. 155 IPM
VARIABLE FORMING SPEED .......................... 1-30 IPM
VARIABLE RETURN SPEED ........................... 1-135 IPM
WEIGHT........................................... 49,300 LBS
EQUIPPED WITH:

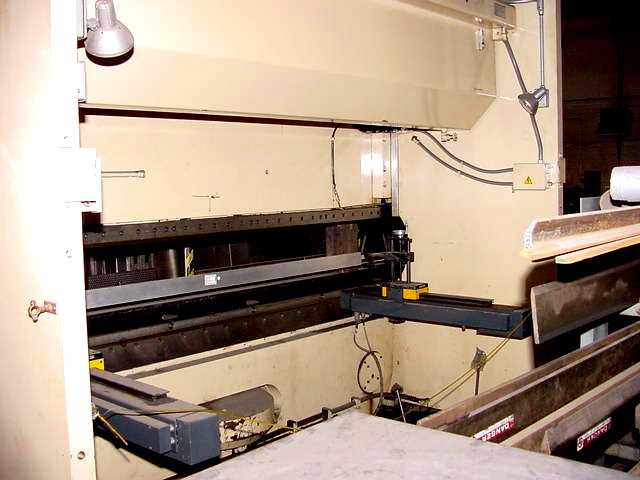

- 24" CINCINNATI 2-AXIS CNC BACK GAUGE
- AUTO CROWNING - PRODUCES CONSISTENT BENDS ALONG ENTIRE
BEND LINE.
- POWER CLAMPING TO RAM
- ADAPTIVE MODE - ALLOWS YOU TO TEACH THE MACHINE TO BEND
MATERIALS WITH INCONSISTENT YIELDS OR TENSILE STRENGTHS CONSISTENTLY.
MOTOR SPECS: 25 HP, CURRENTLY SET AT 460 VOLT
