Reference Number: 138493

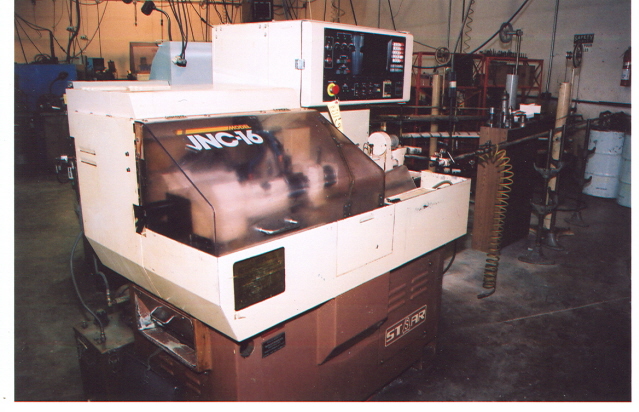

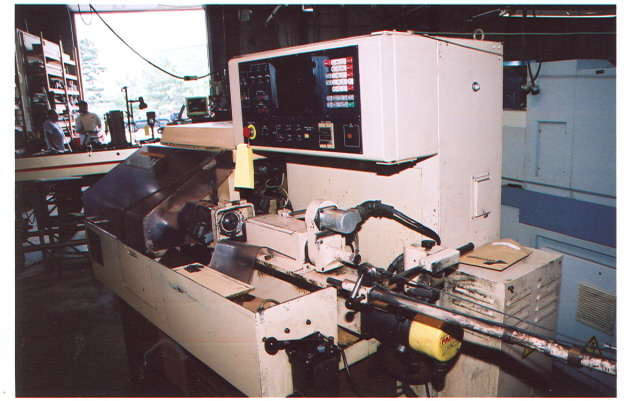

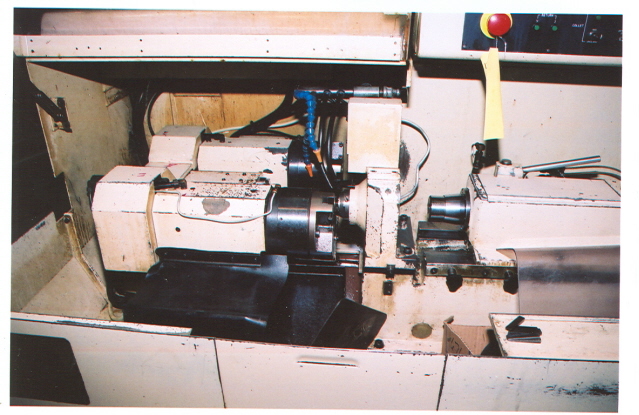

STAR JNC-16 CNC Swiss type Automatic Screw Machine w/ bar-feed, S/N 026060, New 1985Price: $11,500
Max. machining diameter .63"
Stroke of headstock with fixed bushing .063"
Stroke of headstock with Synchronized rotary bushing 3.74"
3 ranges spindle speeds 375-7500 RPM
No. of tools: 6 (3 on each opposed tool posts) shifting
by .394" possible for 1 each
Rapid traverse rate 315 IPM
Max. cutting feed rate 236 IPM
3-Spindle end working attachment specs:
Drilling capacity .314"
Thread cutting capacity M8 X P1.25
EQUIPPED WITH:
Mechanical bar-feed
3-Spindle end working attachment
Threading
Twin tool posts
Parts separator
.4 KW OM X-axis drive
.4 KW OM Z-axis drive
.4 KW hydraulic motor
.18 KW coolant motor
2.2 KW Spindle drive motor
2T-A Fanuc control with RS232 port
3/60/220 volt electrics
Approx. weight: 3,450 lbs.
Floor Space ( machine only): 72"L x 48"W
Condition: Good
