Reference Number: 138546

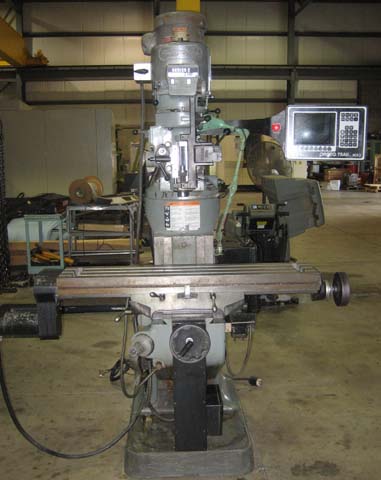

Price: $9,950BRIDGEPORT VERTICAL MILL
MODEL: SERIES I, S/N: 238077, NEW: 1983
SPECIFICATIONS:
TABLE TRAVEL (X-AXIS) .................. 30"
SADDLE TRAVEL (Y-AXIS) ................. 12"
QUILL TRAVEL ........................... 5"
KNEE TRAVEL (Z-AXIS) ................... 16"
RAM TRAVEL ............................. 12"
MINIMUM THROAT DISTANCE ................ 6.75"
MAXIMUM THROAT DISTANCE ................ 18.75"
TABLE TO SPINDLE NOSE GAGE LINE ........ 2.5"
MAXIMUM WEIGHT OF WORKPIECE ............ 750 LBS
TABLE
SIZE ............................. 9" x 42"
T-SLOT, NO. & SIZE ............... 3 ON 2.5" CENTERS
MAXIMUM HEIGHT ABOVE FLOOR ....... 47.25"
SPINDLE TAPER .......................... R8
SPEED RANGE
SPINDLE DRIVE SPEED, INF. VARIABLE ..... 60-500 RPM (LOW)
............................ 500-4200 RPM (HIGH)
POWER QUILL FEED ....................... .0015"/REV.
MANUAL ADJUSTMENT ...................... .003"/REV.
............................ .006"/REV.
DRILLING CAPACITY
MILD STEEL (MANUAL) .................... .75" DIAMETER
MILD STEEL (POWER) ..................... .375" DIAMETER
MILLING CAPACITY - MILD STEEL .......... 2 CU."/MIN
BORING RANGE
MILD STEEL ............................. TO 6" DIAMETER
SPINDLE DIAMETER ....................... 1.875"
QUILL DIAMETER ......................... 3-3/8"
QUILL TRAVEL ........................... 5"
DIMENSIONS: 60" (L-R) X 80" (F-B) X 82" (H)
APPROX. WEIGHT: 2,200 LBS
EQUIPPED WITH:
- PROTO TRAK MX2 2-AXIS CONTROL
- 3-AXIS READ OUT CAPABILITY
- BALLSCREWS X-Y AXES
- WORK LIGHT
- ONE SHOT LUBE
- (6) R8 COLLETS
- FLOPPY DISC DRIVE
- ELECTRICS: 220 VOLTS, 3 PH, 60 CYC
