Reference Number: 138549
Price: $19,500

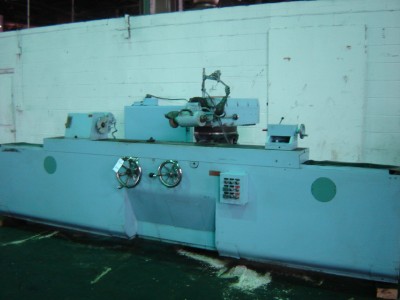

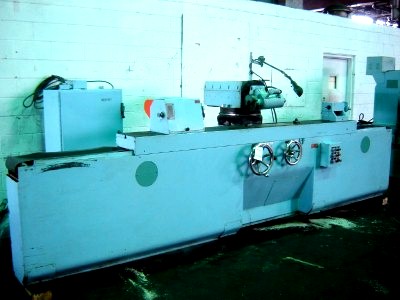

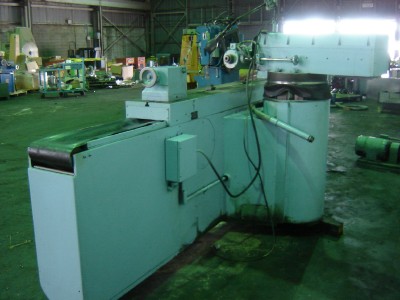

LAPOINTE BROACH SHARPENER
** NOW SET UP TO DO BOTH
ROUND & FLAT BROACHES **

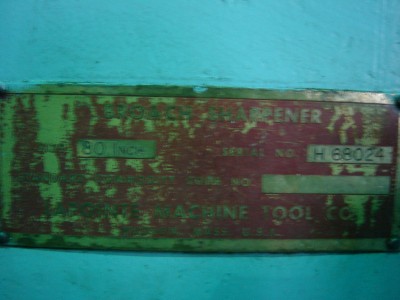

MODEL: BS80 S/N: H68024 NEW: 1968
12" SWING
80" DISTANCE BETWEEN CENTERS
TABLE SIZE IS 13" WIDE x 112" LONG

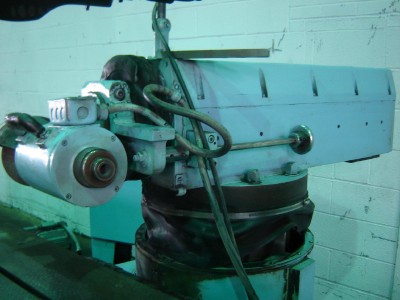

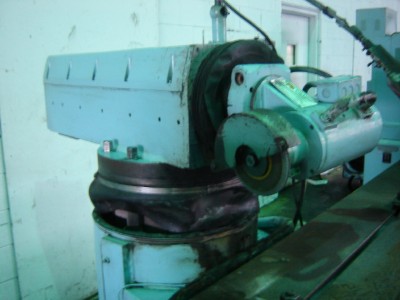

WHEELHEAD SWIVELS 45 DEGREES LEFT & RIGHT
SPINDLE SWIVELS 360 DEGREES CW/CCW

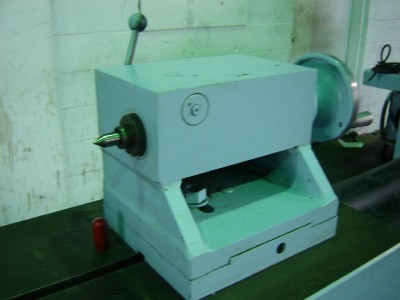

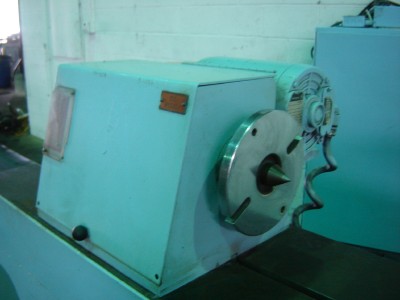

MOTORIZED WORKHEAD & MATCHING TAILSTOCK
WORKHEAD HAS DRIVER PLATE & A CENTER

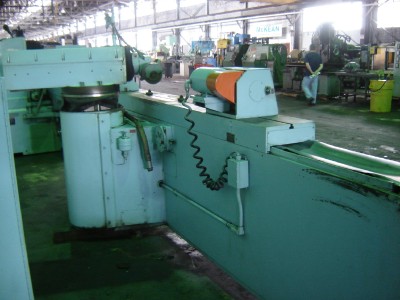

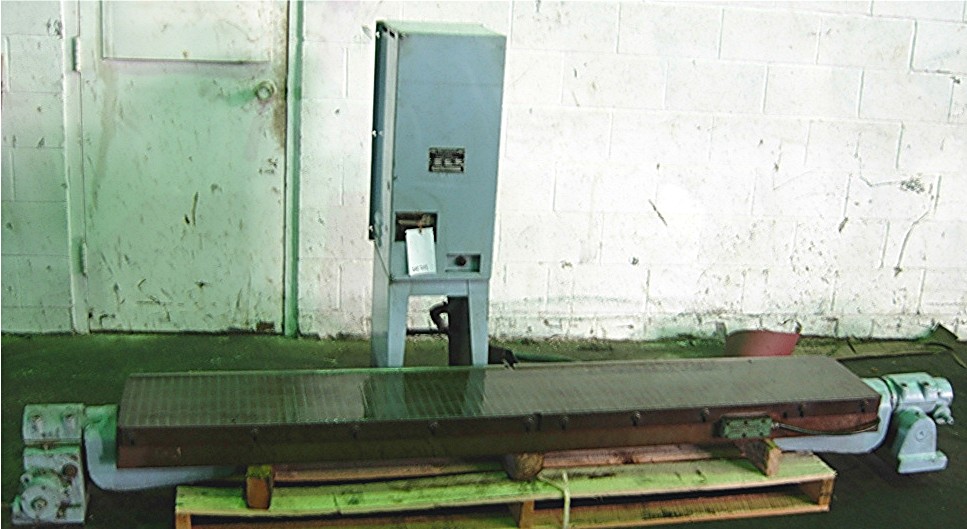

O.S. WALKER 12" x 84" ELECTRO-MAGNETIC CHUCK
CRADLE THAT ALLOWS CHUCK TO TILTED EITHER SIDE
OVERALL LENGTH OF CHUCK WITH CRADLE IS 108"
ELECTRO-MATIC NEUTROFIER CONTROL FOR THE EMC
HARDENED & REPLACEABLE WAYS
SEPERATE ELECTRICAL CABINET
3/60/220-440 VOLT ELECTRICS
DIMENSIONS:
LAPPOINT MACHINE IS APPROX. 12' X 4' X 5', 6500 LBS
CABINET IS APPROX. 3' X 2' X 5'
** EXCEPTIONALLY NICE MACHINE **
** F.O.B. HARRISON, NJ**
