Reference Number: 138570

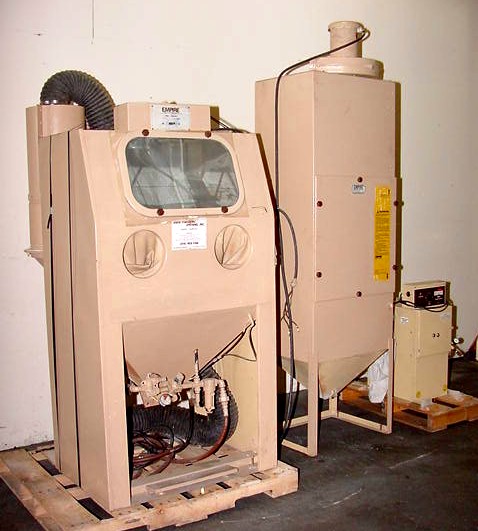

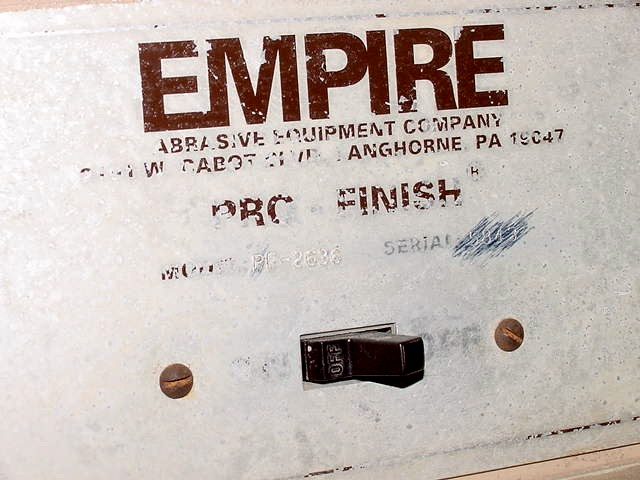

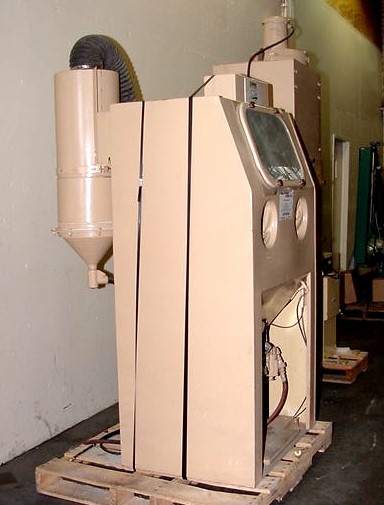

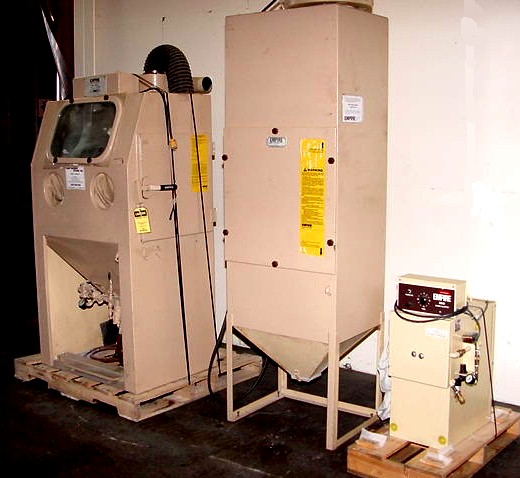

EMPIRE PROFINISH MODEL PF2636
 "SUCTION TYPE" BLAST CABINET
 w/MEDIA RECLAMATION SYSTEM & DUST COLLECTOR

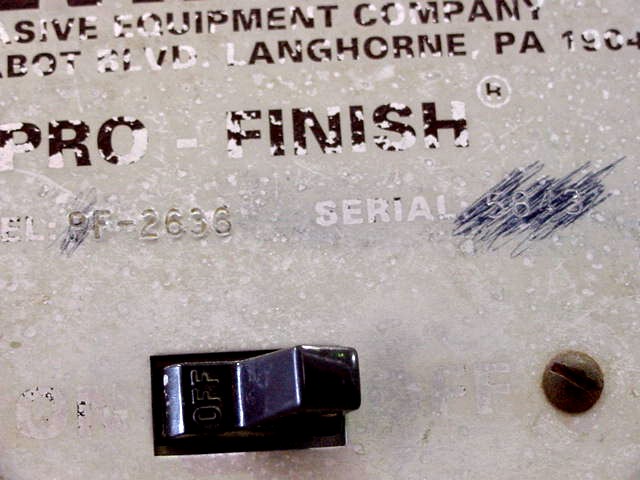

 UNIT SERIAL NUMBER:  5843     MFG:   LATE 1990's

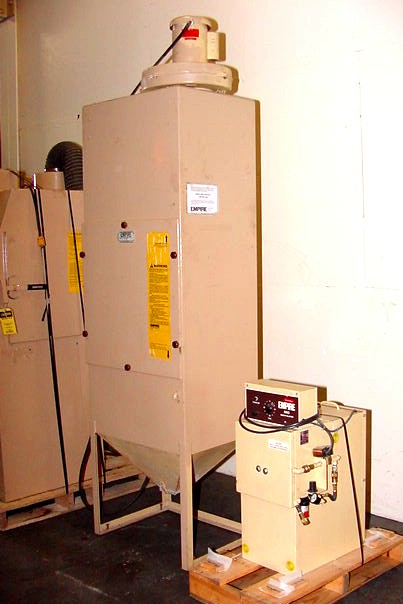

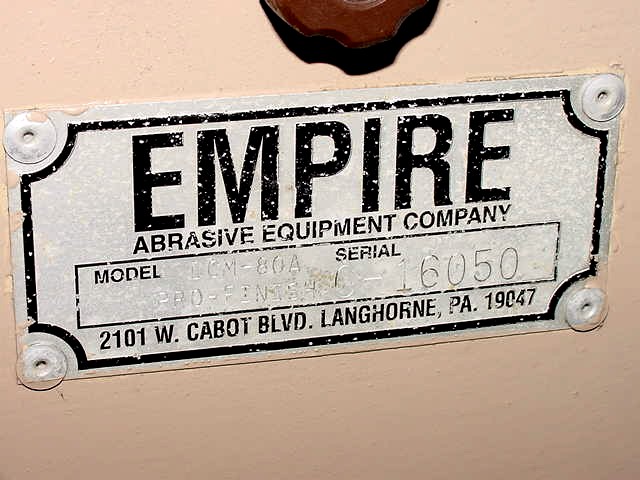

 DUST COLLECTOR MODEL DCM-80A     S/N: C-16050
 Specifications:
 Interior Dimensions (D x W x H):                      26" x 36" x 30"
 Overall Dimensions, Cabinet Only (D x W x H): 28" x 42" x 70"
 Door Opening (H x W):                                    22" x 20"
 Number of Doors:                                           1
 Ceramic Nozzle:                                            5/16"
 Air Jet:                                                          5/32"
 Piping Size:                                                  1/2"
 Reclaimer Specifications:
 Ventilation Rate:                                            400 C.F.M.
 Exhaust Fan Motor:                                       1 HP

 STANDARD PRO-FINISH FEATURES
 Rigid, dual-panel doors stand up to abrasives and seal more tightly than single panel
 doors. Flush construction minimize media spill when the door is open.
 Safety-door switch (patent No. 4,505,077) prevents accidental blasting when doors are
 open. Complies with OSHA requirements.
 Self-adjusting door latch assures continued tight sealing as door gaskets age.
 Simple, pneumatic controls deliver greater reliability than electric controls employing
 limit switches and solenoids that often stick and burn out.
 Wide foot treadle enables operation with either foot
 Moisture separator improves efficiency and reduces downtime by helping to prevent oil
 and moisture in supply lines from contaminating media.
 Large safety-glass window (14"x22") can be change in a few minutes without tools and
 has rounded corners for safe handling.
 Kleensweep™ creates an air stream across the viewing window to reduce dust buildup
 and improve visibility.

 Equipped with:
 Spray Nozzle & Air Gun

 F.O.B. HARRISON, NJ
 ** CONDITION:  "EXCELLENT" **
