Reference Number: 138606
Price: $64,500

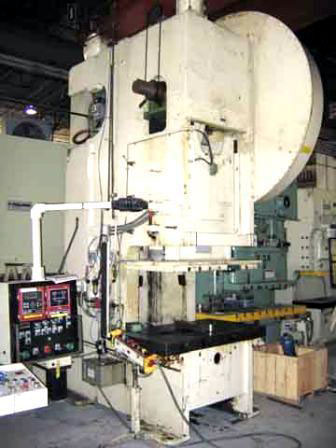

250 TON VERSON OPEN BACK GAP FRAME PRESS
MODEL 250-OBI S/N 24789 NEW 1975
Capacity: 250 Ton,
Air Clutch and Brake with Selector Controls,
Stroke: 8",
Power Slide Adjustment: 6",
Shut Height Over Bed (SDAU): 27",
Bed Area: 62" L-R x 36" F-B,
Slide Face Area: 52" L-R x 34" F-B (T-Slotted),
Opening in Bed: 28" L-R x 21" F-B,
Opening Thru Back: 29-1/2",
Throat Depth: 18-1/2",
Distance Bed to Floor: 35"
Speed: 32 SPM,
Enclosed Gears Running in Oil,
Crankshaft Extension Left Side,
Fixed Base,
Welded Steel Frame
EQUIPPED WITH:
- DiPro 1500 Wintriss Die Protection,
- AutoSet 1500 Plus Wintriss Load Analyzer,
- (2) Air Counterbalances to Slide,
- T-Slotted Bolster Plate (4-1/2" Thick),
- Automatic Recirculating Lubrication System,
- 30HP Main Drive Motor,
- Electrical Controls,
- Dual Palm Button Operation
Weight, Approx. 65,000 lbs.,
Dimensions, Approx. 125" L-R x 80" F-B x 180" H
