Reference Number: 138662
Price: On Request

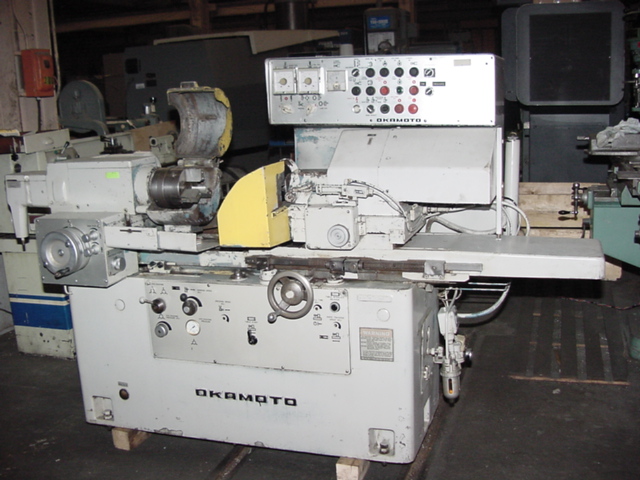

OKAMOTO "AUTOMATIC" INTERNAL GRINDING MACHINE
MODEL: IGM-1E S/N: 1535 NEW: 1981
SPECIFICATIONS:
INTERNAL DIAMETER TO BE GROUND:
STANDARD............................ 15/64"- 4"
MAXIMUM............................. 7 7/8"
MAX. GRINDING STROKE................ 7.88"
MAX. SWIVEL OF WORKHEAD............. 30 DEGREE
SWING INSIDE WHEEL GUARD............ 10.6"
FEED DIAL........................... 0.0005"
FINE FEED DIAL...................... 0.0001"
TABLE SPEED (VARIABLE).............. 1.5 - 30 FPM
GRINDING WHEEL SPEEDS............... 10,000 - 60,000
WORK SPINDLE SPEEDS................. 60-800 RPM
WORK SPINDLE MOTOR.................. 1 HP
HYDRAULIC PUMP...................... 1 HP
GRINDING WHEEL SPINDLE.............. 3 HP
FLOOR SPACE......................... 10' X 4.5'
WEIGHT (APPROX.).................... 4,400 LBS.
EQUIPPED WITH:
CHUCK
(1) INTERNAL GRINDING SPINDLE
AUTO LUBRICATION
COOLANT SYSTEM
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE **
