Reference Number: 138672

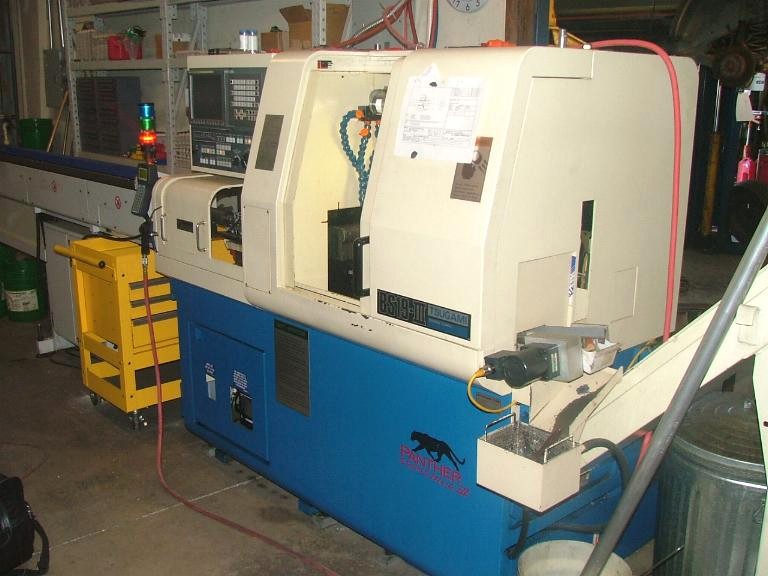

TSUGAMI BS19-III 5 AXIS CNC SWISS W / IEMCA BARFEEDPrice: On Request
2001
SPECIFICATIONS
Chucking Barstock Dia 3 - 19mm
Max. Machining Length 210mm (Rotary G.B.:80mm)
Max. Driling Dia. 7mm
Max. Tapping 6mm
Max. Back Spindle Tapping Dia. 6mm
Max. Cross Drill Chucking Dia. M5 x .08
Max. Back Drill Tapping Dia. 4mm
Max. Back Drill Chucking Dia. M2.5 x
Spindle Speed Range of Main Spindle 200-10,000 RPM
Main Spindle Horsepower 5 HP
Main Spindle Through Hole Dia. 23.5mm
Spindle Center Height 952mm
Spindle Indexinc Incremenmt 15 Degree
Z Axis Travel-Fixed Guide Bushing 209mm
-Chucker Model 45mm
-Driven Guide Bushing 80mm
T1 O.D. Tool Slide Up and Down 129.3mm
X O.D.Tool Slide Right and Left 41.9mm
Number Of Tool Stations: 7 O.D. Tools
3 Cross Driven Tools
3 I.D. Tools
3 Backworking Tools
Spindle Speed Range Of Sub-Spindle 200-8000
Sub-Spindle Through Hole Dia. 19.5mm
EQUIPPED WITH
FANUC LK-1 CNC CONTROL
CHIP CONVEYOR
IEMCA GENIUS 120 MAGAZINE BARFEED
ALL AVAILBLE TOOLING
ALL AVAILABLE MANUALS
**ONLY 744 HOURS**
