Reference Number: 138737A

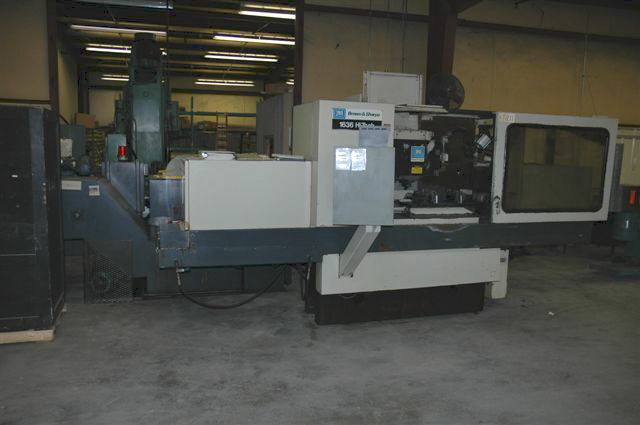

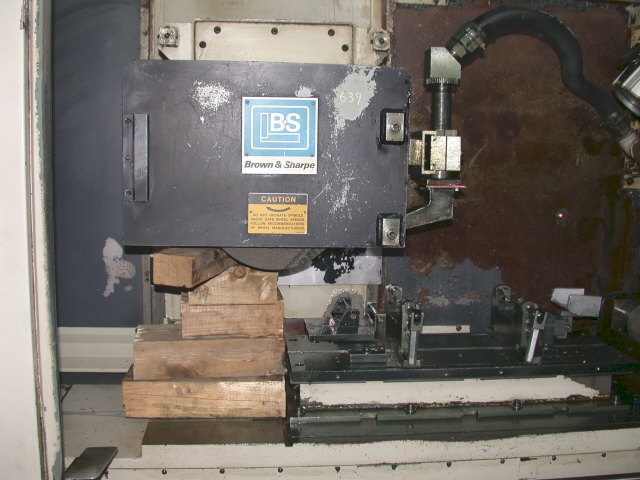

Price: On Request16" x 36" BROWN & SHARPE PROFILE AND CREEP FEED GRINDER
Hi-tech 3-axes CNC controlled Surface, New approx. 1991
SPECIFICATIONS:
Minimum table stroke .4"
Maximum grinding stoke 40"
Nominal grinding length 36"
Maximum grinding width 17"
Nominal grinding width 16"
Table size 16" x 36"
Max. work height Under 14" Dia. wheel 18"
Max. work height Under 16" Dia. wheel 16"
Wheel size 16" Dia. x 3" Width
Infinitely variable table speed range .4 to 100 IPM
Infinitely variable wheel speeds 100 to 3000 RPM
Max. reciprocation rate of table 200 S.P.M.
Continuous feed rate 0 to 225 IPM
Incremental feed, minimum .000010"
Incremental feed, maximum 1"
Vertical feed of wheel head 19 ¼"
Rapid traverse rate of wheel head 0 to 40 IPM
EQUIPPED WITH:
Ball screw drives for cross and wheel slides
14"x32" electromagnetic chuck w/ control

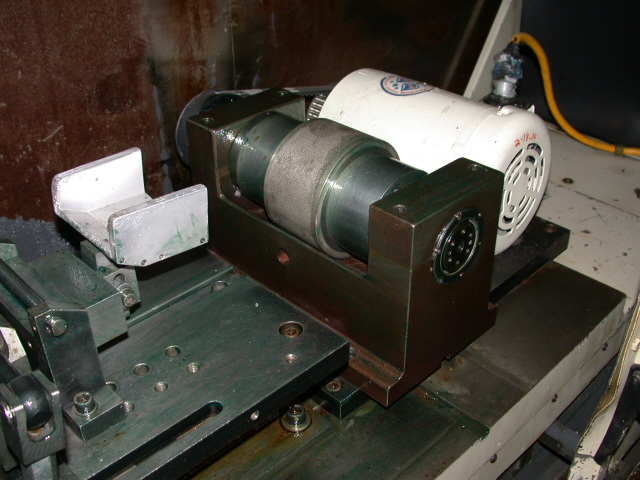

Dresser

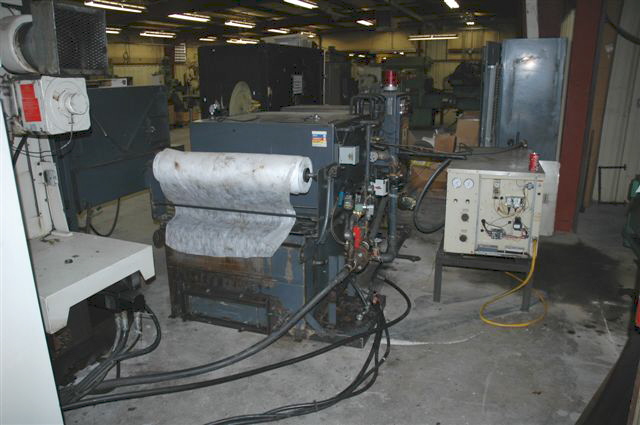

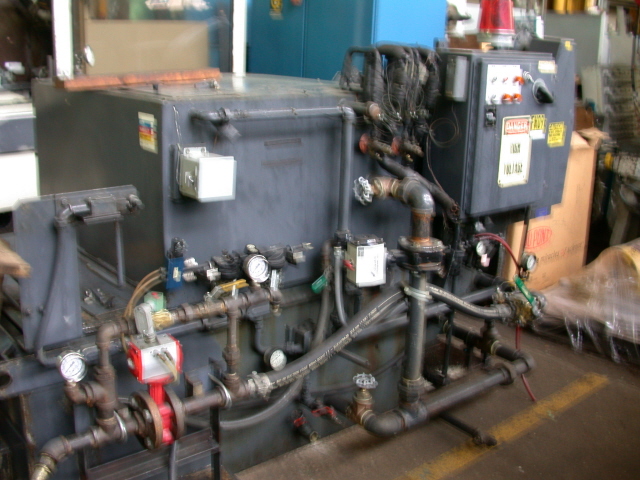

Coolant filtration System
Coolant Splash enclosure
Wheel mount
Automatic lubrication
Integral cartridge type Spindle drive
15 H.P. DC Variable speed Spindle drive

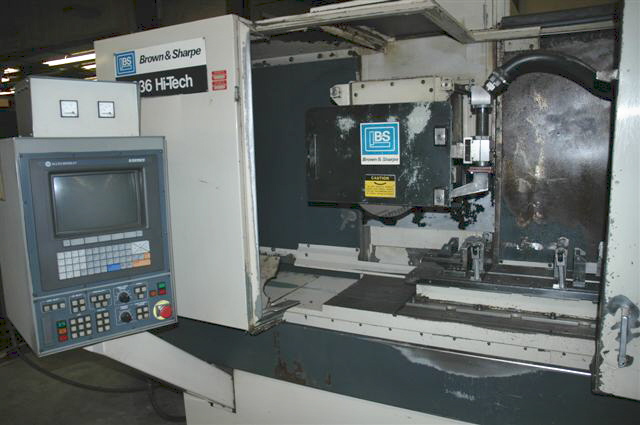

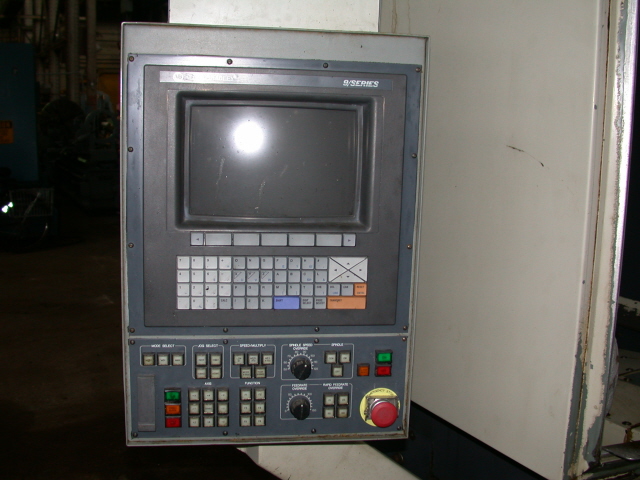

Allen Bradley Series 9 CNC control with CRT, port
Approx. weight: 14,000 lbs.
Dimensions: 142"L x 124"FB x 105"High
Condition: Excellent
