Reference Number: 138885

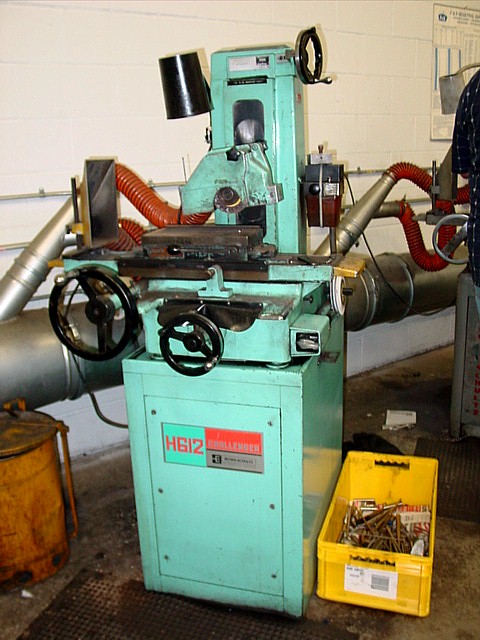

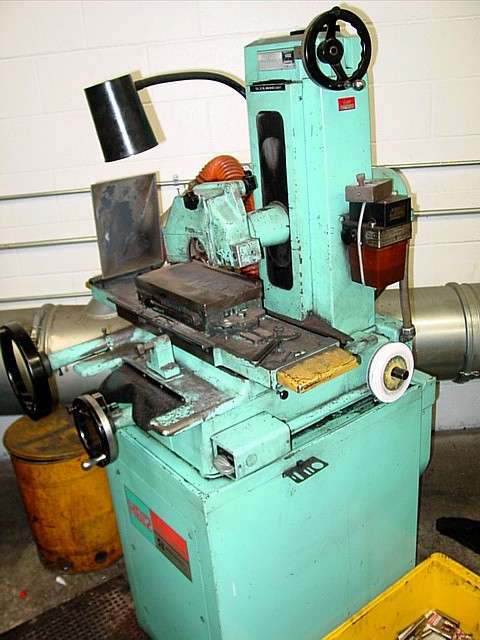

6" X 12" BOYAR SCHULTZPrice: On Request
HAND FEED SURFACE GRINDER
MODEL: H-612 "CHALLENGER" SERIES
S/N: K61200582 NEW: 1986
SPECIFICATIONS:
WORKING SURFACE OF TABLE................. 6" X 18"
TABLE TRAVEL, LONGITUDINAL............... 19- 7/8"
CROSS.................................... 6- 13/16"
GRINDING WHEEL, MAXIMUM DIAMETER......... 7"
MINIMUM/MAXIMUM WIDTH.................... 3/16"/ 5/8"
HOLE SIZE................................ 1-1/4"
MAXIMUM DISTANCE, TOP OF PERMANENT CHUCK
TO BOTTOM SIDE OF 7" DIAMETER WHEEL...... 9-1/2"
HANDWHEEL GRADUATIONS, DOWNFEED
(VERNIER TO .0001")...................... 0.0005"
CROSS.................................... 0.001"
APPROX. MACHINE WEIGHT .................. 1,125 LBS.
EQUIPPED WITH:
-6" X 12" WALKER CERAMAX FINE-DIVISION PERMANENT
MAGNETIC CHUCK
-AUTOMATIC LUBRICATION SYSTEM
-1 H.P. 3/60/230-460 VOLT 3,450 RPM DIRECT MOTORIZED
-HARDENED STEEL WAYS
-WORK LIGHT
-BUILT-IN DUSCTOLLECTOR
-PRESENTLY WIRED FOR 3/60/220 VOLTS
** EXCEPTIONAL CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
