Reference Number: 138886
Price: On Request

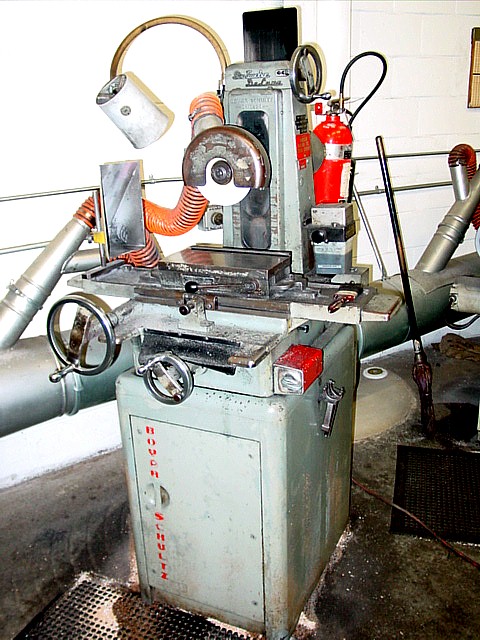

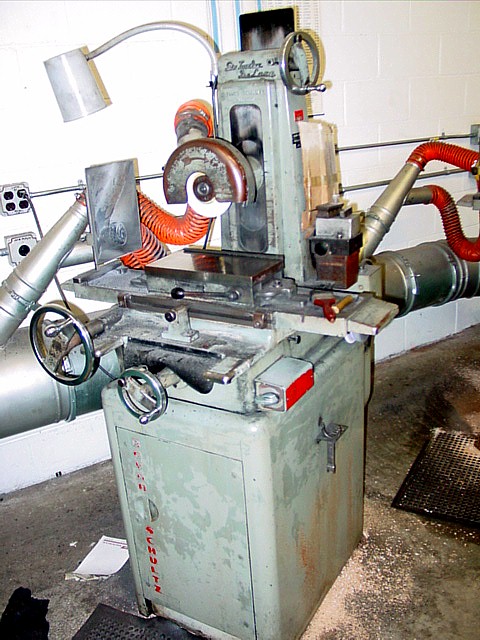

6" X 12" BOYAR SCHULTZ
HAND FEED SURFACE GRINDER
** NEW SPINDLE BEARINGS **
MODEL: 612 DELUXE S/N: 3844-H NEW: 1966
WIDTH & LENGTH GROUND ..................... 6" X 12"
LONGITUDINAL TRAVEL ............................ 13"
CROSSFEED TRAVEL ................................ 7"
MAXIMUM WORK HEIGHT UNDER WHEEL ............. 9-1/2"
STANDARD GRINDING WHEEL ...... 7"D X 1/2"W X 1-1/4"B
HANDWHEEL GRADUATIONS:
DOWNFEED (VERNIER TO .0001") ................ 0.0005"
CROSSFEED .................................... 0.001"
APPROX. DIMENSIONS ............... 43"L X 38"W X 62"H
APPROX. WEIGHT .............................. 800 LBS
EQUIPPED WITH:
6" X 12" WALKER "CERAMAX" FINE-DIVISION PERMANENT
MAGNETIC CHUCK
BUILT-IN DUST COLLECTOR
WORK LIGHT
AUTIOMTIC POWER LUBRICATION SYSTEM w/MANUAL OVERIDE
1 H.P. 2850/3450 DIRECT DRIVE SPINDLE
3/60/220/440 VOLT ELECTRICS
MACHINE IS PRESENTLY WIRED FOR 220 VOLTS
** CLEAN CONDITION **
** INSPECT IN OUR HARRISON, N.J. FACILITY **
