Reference Number: 139037

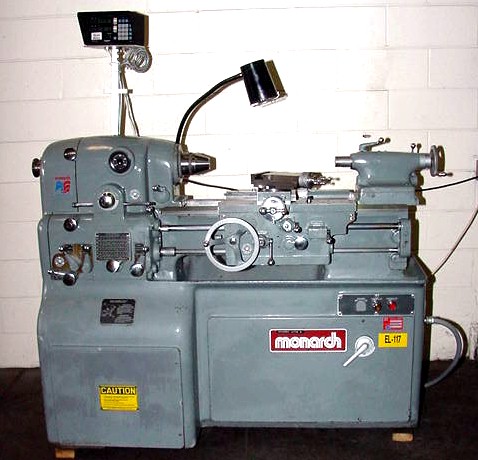

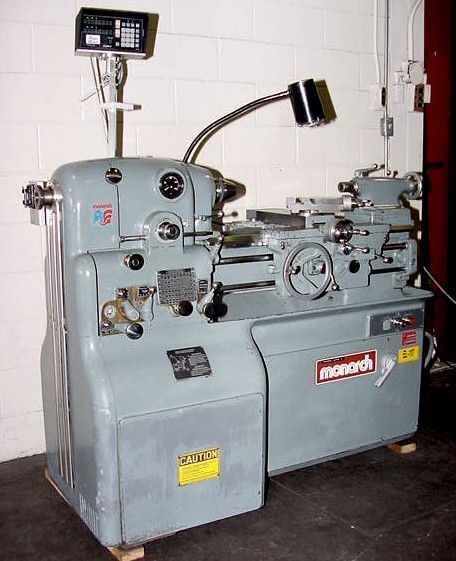

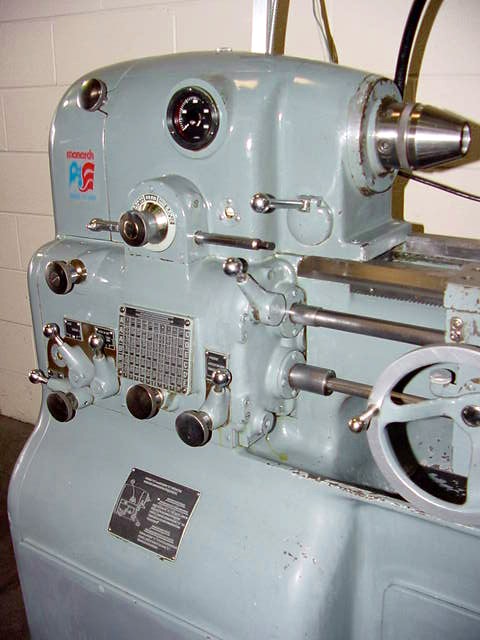

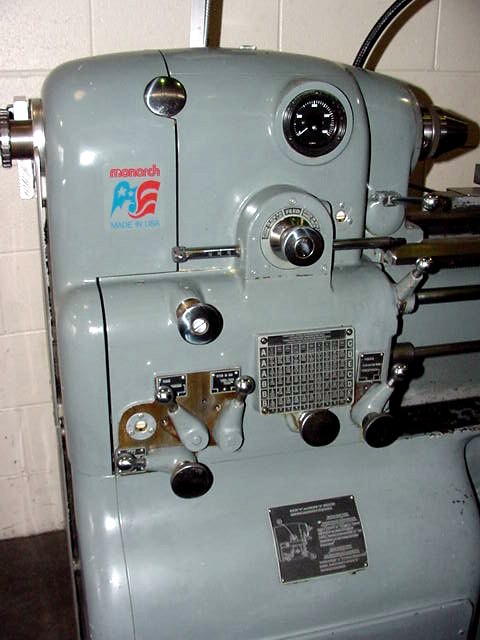

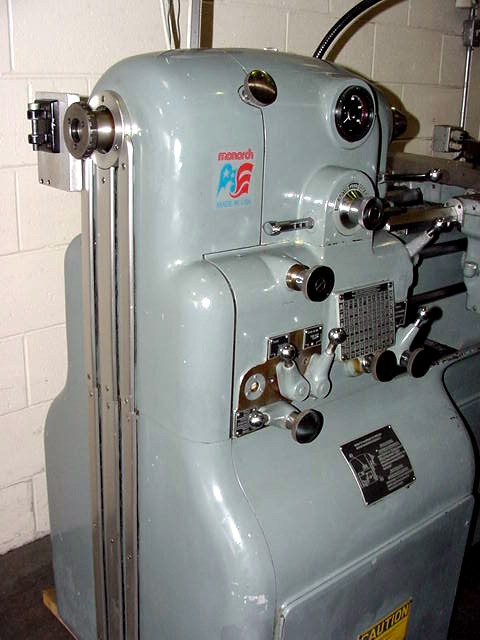

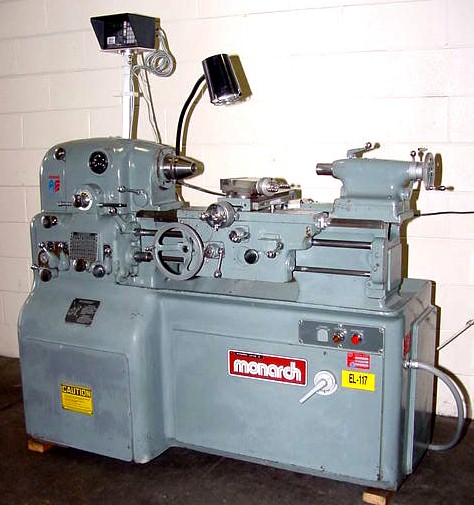

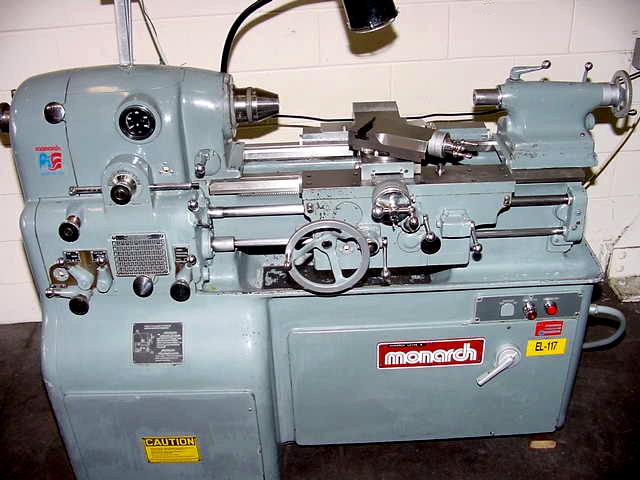

10" X 20" MONARCH PRECISION TOOLMAKER'S LATHE
 BIGGER, FASTER & HEAVIER THAN A HARDINGE HLV-H
 AND JUST AS ACCURATE - COSTS TWICE AS MUCH AS
 A HARDINGE HLV-H WHEN PURCHASED NEW

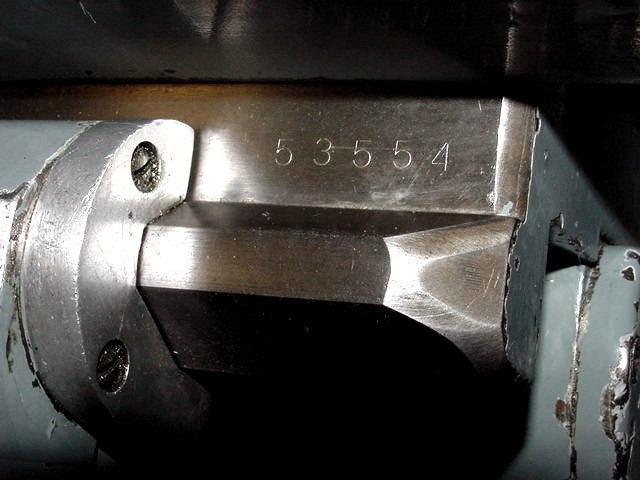

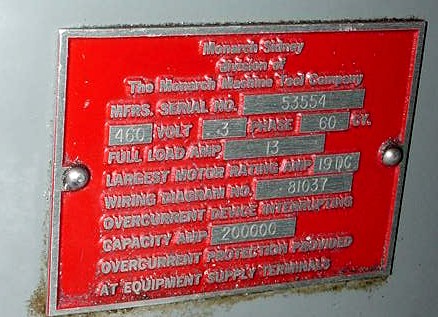

 MODEL: 10EE, S/N: 53554, NEW 1985


 SPECIFICATIONS:

 SWING OVER BED ............................ 12-1/2"

 SWING OVER CROSS SLIDE .................... 7-1/4"
 DISTANCE BETWEEN CENTERS .................. 20"
 HOLE THROUGH SPINDLE ...................... 1-13/32"
 SPINDLE NOSE, CAMLOCK, TYPE ............... D-1-3"

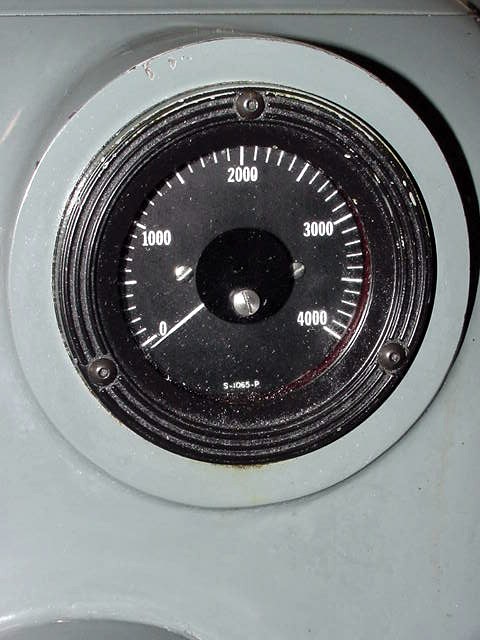

 INFINITELY VARIABLE SPINDLE SPEEDS ........ TO 4,000 RPM
 HEADSTOCK & TAILSTOCK SPINDLE CENTER TAPER  #2 MORSE

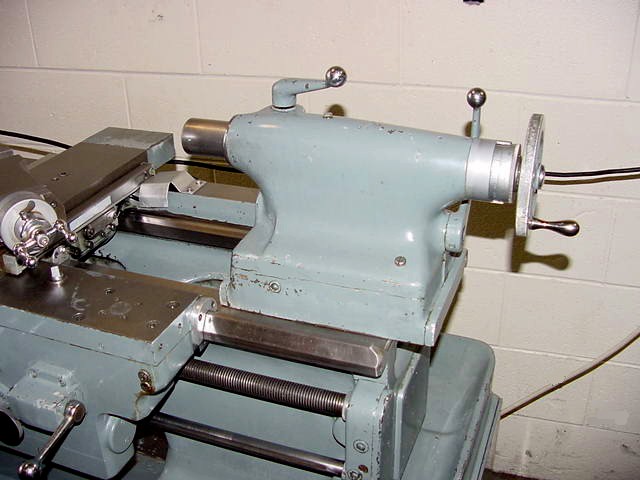

 TAILSTOCK SPINDLE DIAMETER ................ 1-1/4"
 TAILSTOCK SPINDLE TRAVEL .................. 3-1/2"

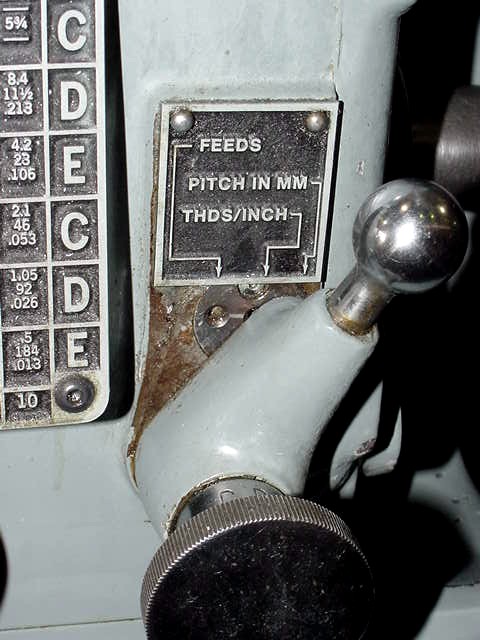

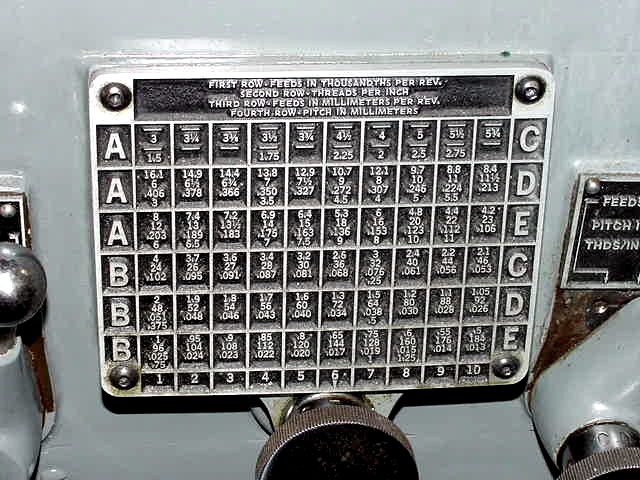

 THREADS, INCH (60) ........................ 3 - 184 T.P.I.
 THREADS, METRIC (25) ...................... .25 - 11 MM

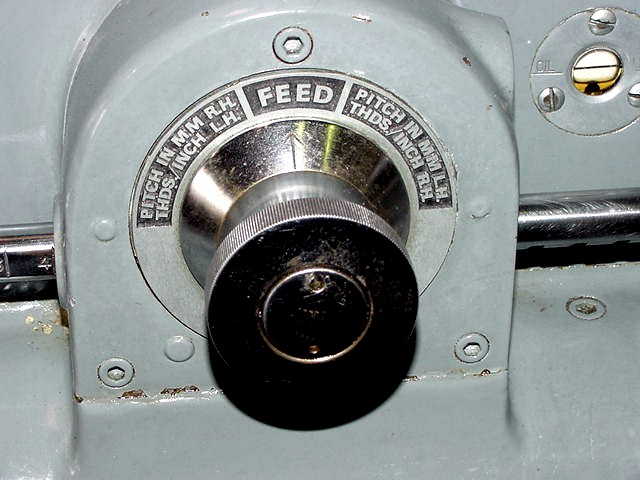

 FEEDS, LONGITUDINAL (50) .................. .0005-.016 IPR

 APPROXIMATE WEIGHT ........................ 3,450 LBS.
 APPROXIMATE FLOOR SPACE ................... 61" x 30"

 EQUIPPED WITH:

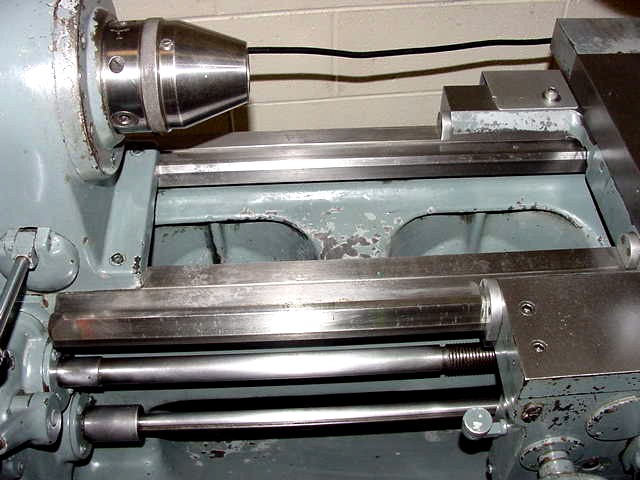

* FLAME HARDENED BED WAYS

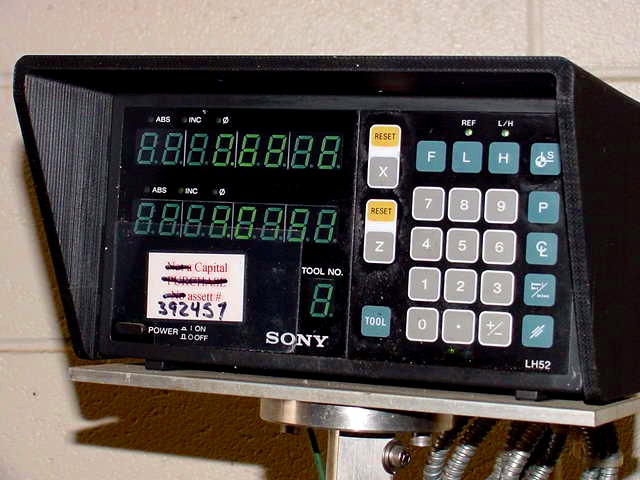

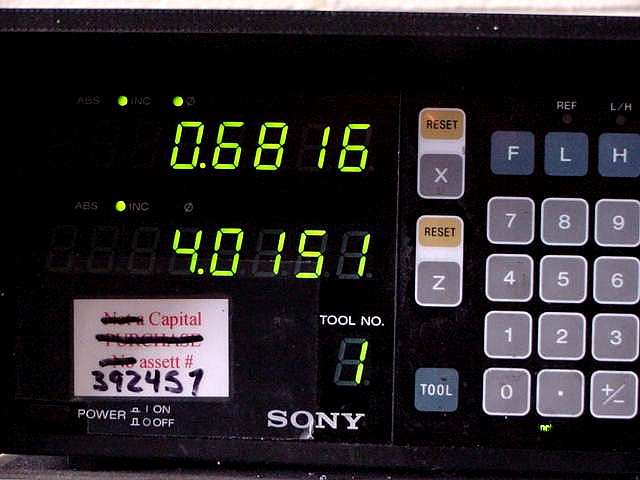

 SONY MAGNASCALE HIGH-ACCURACY TWO-AXIS DIGITAL READOUT
 * 5C LEVER-TYPE COLLET CLOSER
 * 6-JAW CHUCK
 * ALORIS QUICK CHANGE TOOLPOST
 * ALBRECHT DRILL CHUCK FOR TAILSTOCK
 * THREAD CHASING DIAL
 * ADJUSTABLE CARRIAGE STOP
 * 5 H.P. DRIVE MOTOR

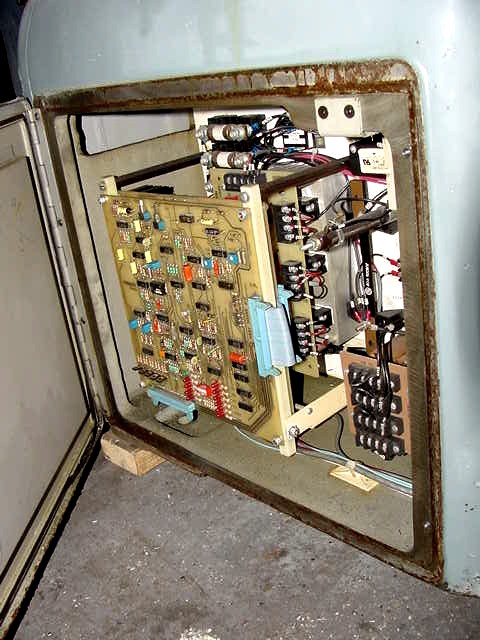

 * NEWER STYLE ORIGINAL MONARCH SOLID STATE DC DRIVE


 INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE


 CONDITION:   ***  SUPERB ***
 REPLACES TODAY FOR OVER $90,000
