Reference Number: 139066

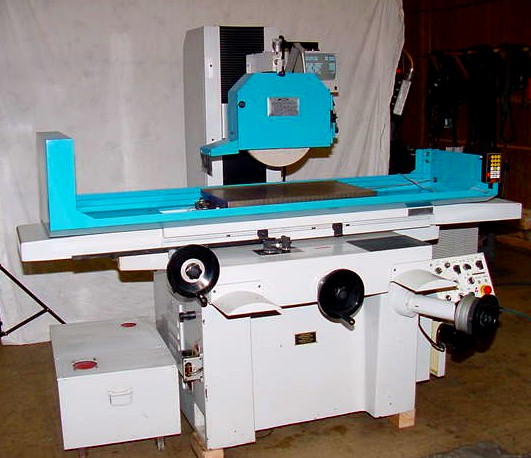

16" x 28" MARK
 (MADE BY PROTH) (ALSO SOLD BY SHARP)

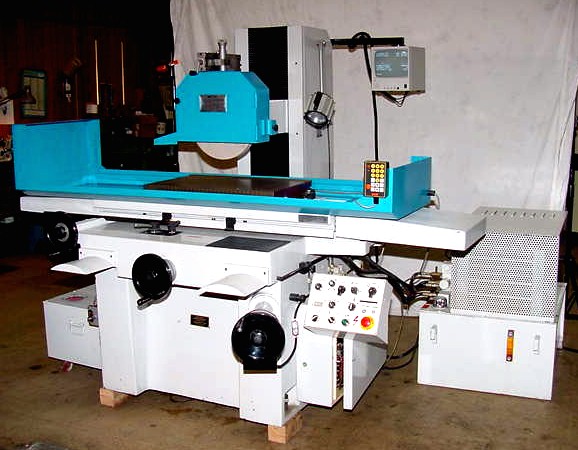

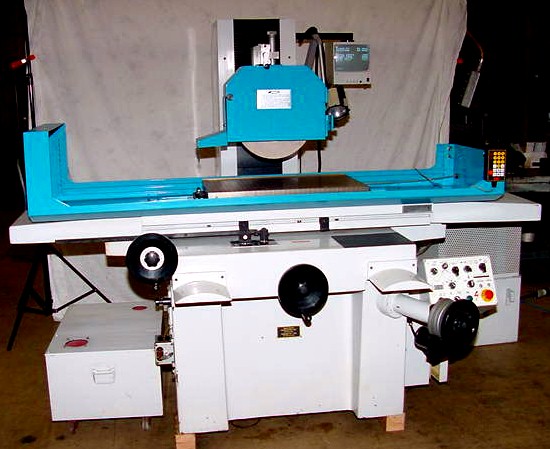

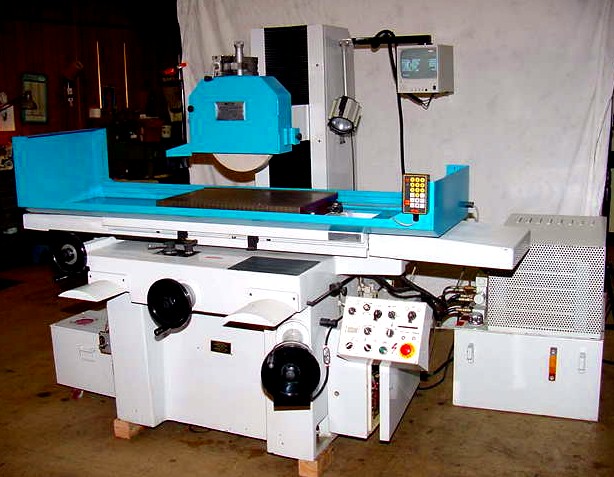

  PRECISION SURFACE GRINDER

 NEW, NEVER USED!

 "AMW" MODEL CD-26
 PROGRAMMABLE MICROPROCESSOR
 AUTO INCREMENTAL DOWNFEED CONTROL

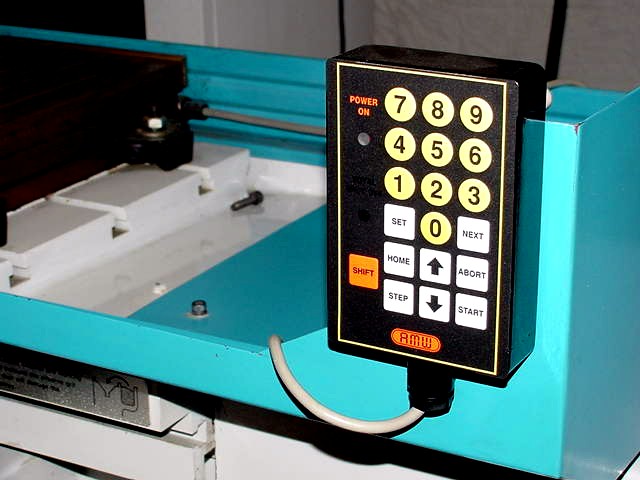

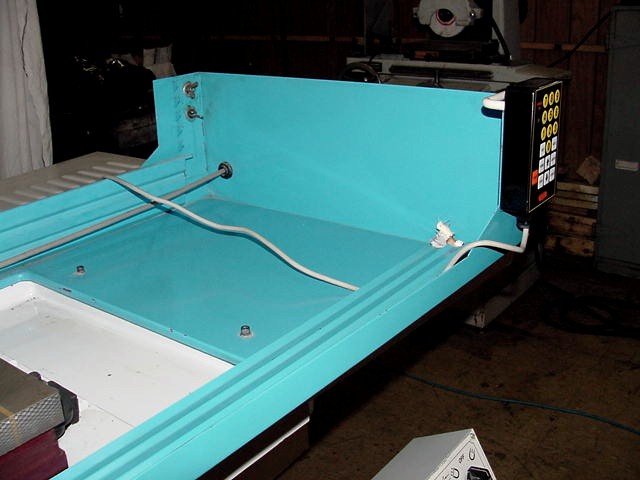

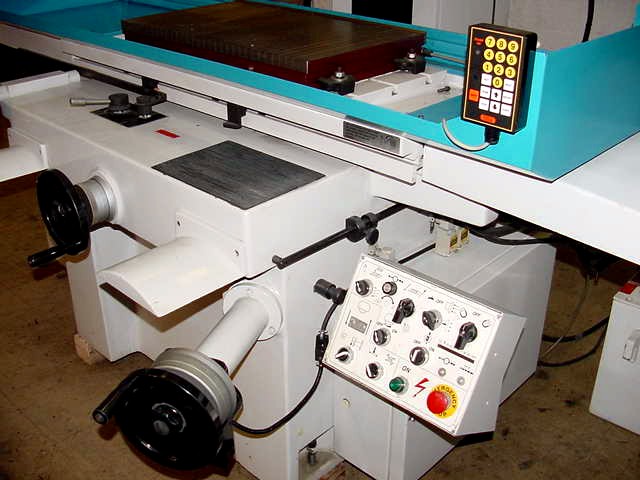

 w/CRT DISPLAY & PENDANT MDI
ADDED TO MACHINE IN 2007 BY FACTORY
 TRAINED TECHNICIAN

 MODEL:   SH-1628
 S/N: 007203-1
 MFG. DATE: 2001



 CAPACITY
 Nominal grinding length: 28"
 Nominal grinding width: 16"
 Maximum distance: table to spindle center: 23.6"

 TABLE
 Table travel (cross x longitudinal): 18" x 33.6"
 Longitudinal hydraulic table feed: 6.6 - 82 FPM
 Intermittent cross feed (in. feed): 0.004 - 0.4 IPM
 Continuous cross feed: 39 IPM
 Number of graduations on dial: 200
 Feed per graduation: 0.0005"
 Feed per revolution: 0.1"

 VERTICAL TRAVEL
 Number of graduations on dial: 500
 Feed per graduation: 0.0001"
 Feed per revolution: 0.05"
 Rapid downfeed: 18.9 IPM

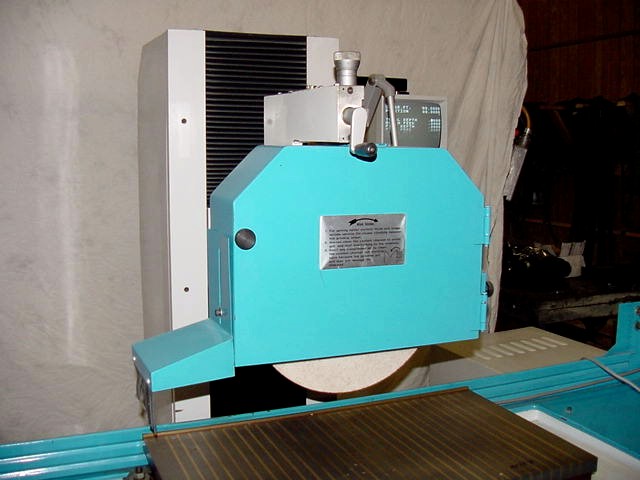

 SPINDLE AND WHEEL
 Wheel size (OD x W x ID): 14 x 1.5" x 5"
 Spindle motor: 5 hp

 GENERAL
 Approximate weight: 7,700 lbs
 Packing crate dimensions (W x D x H): 8' x 6' x 7'

 EQUIPPED WITH:
Model CD-26 Programmable Microprocessor

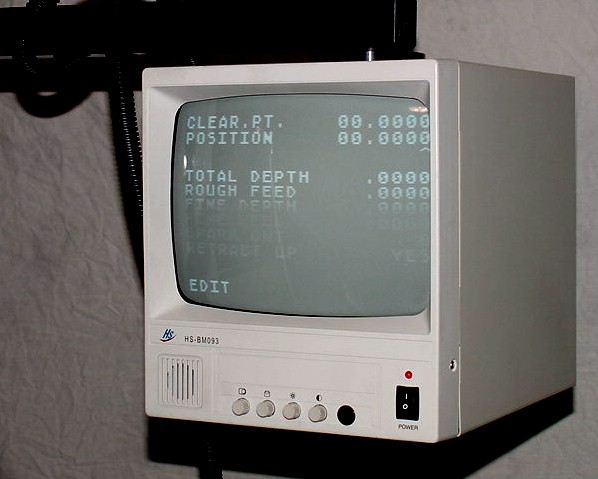

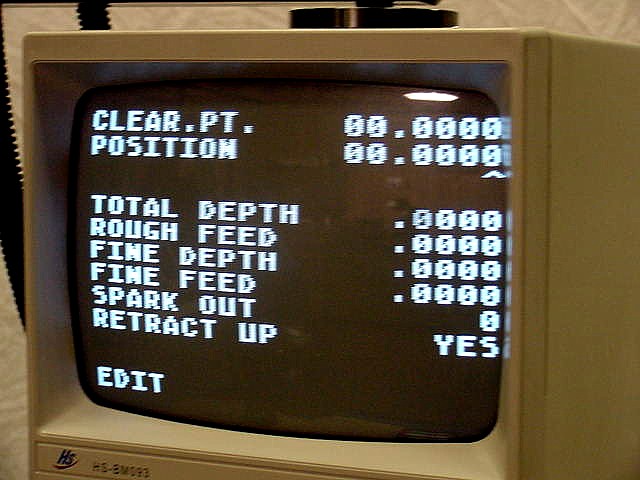

 Auto IDF Control w/CRT Display

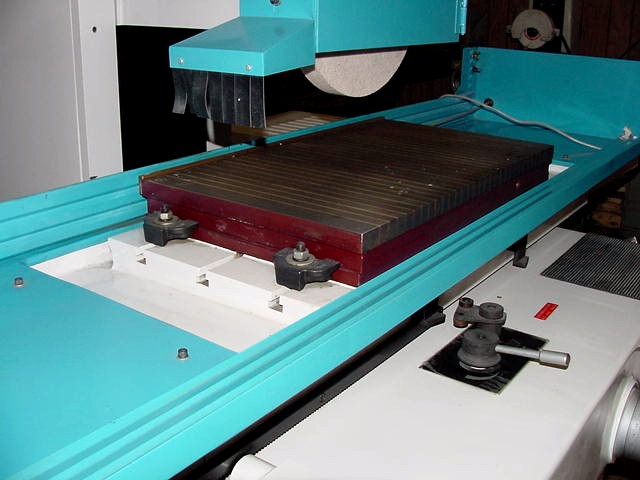

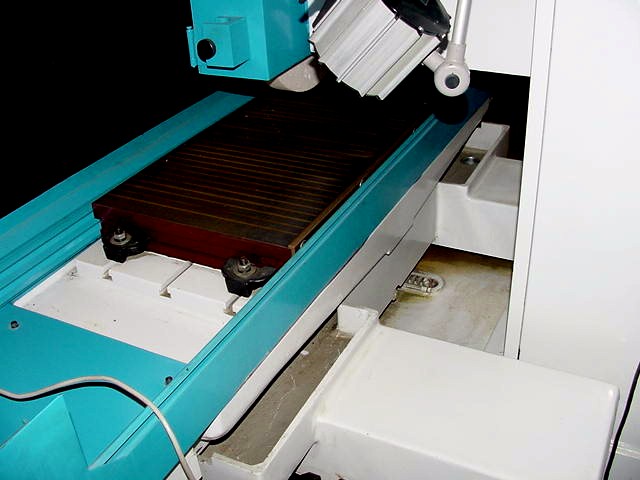

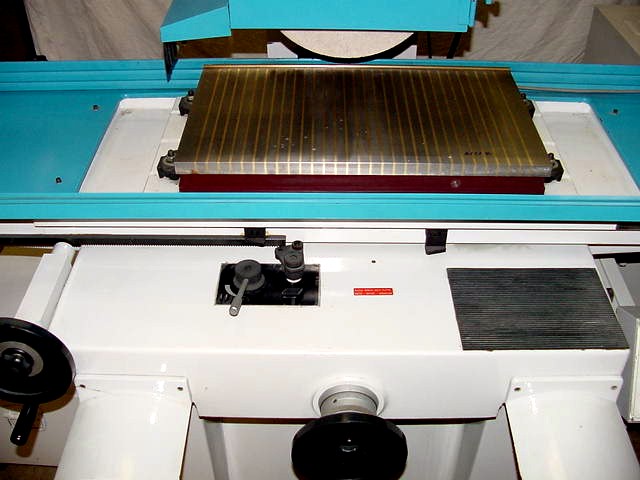

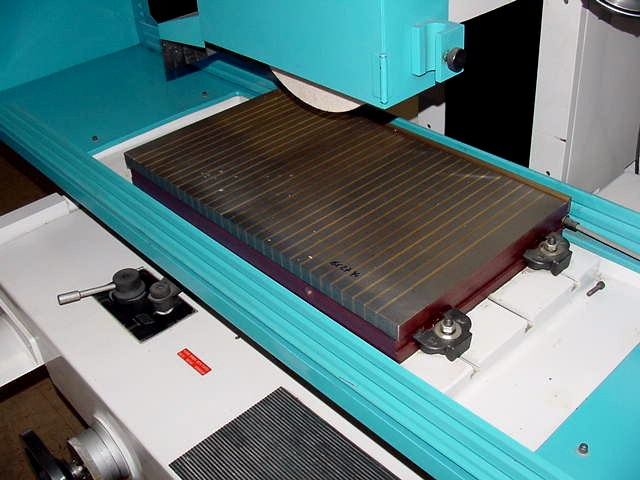

16" x 27- 1/2"" Fine-Division Electro-Magnetic Chuck
 with VARIABLE HOLD Control

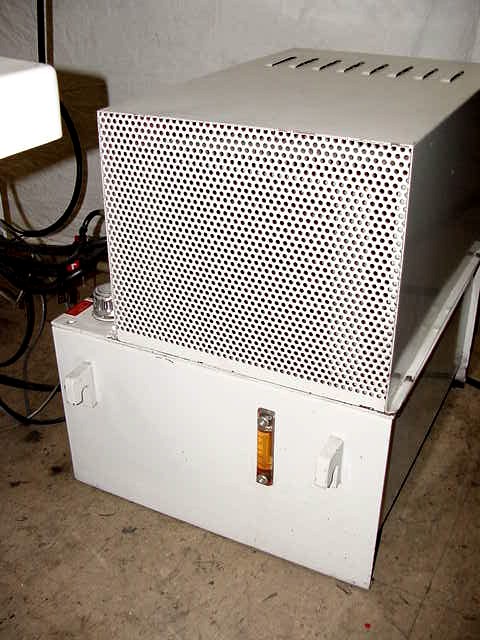

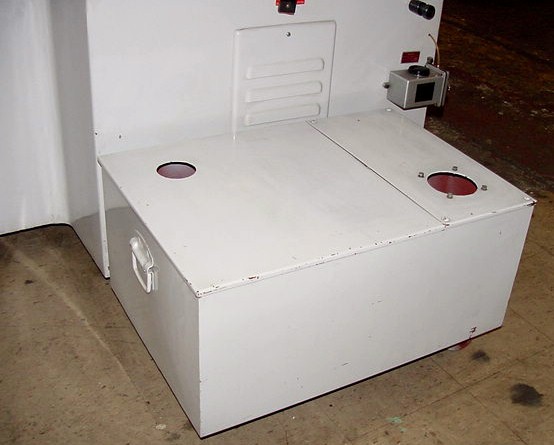

 Coolant system (Complete)

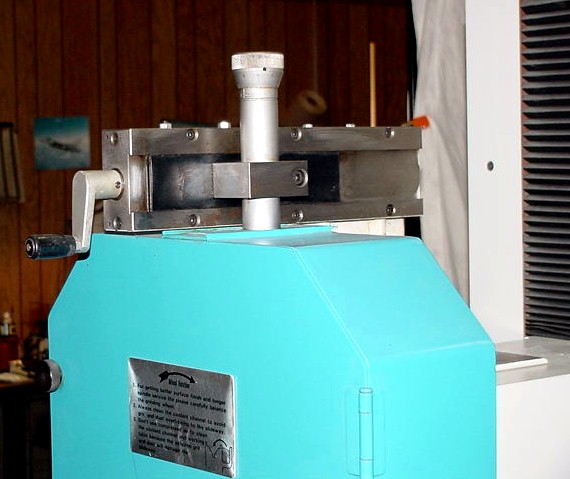

 Parallel dresser
 Wheel balancing stand & Puller

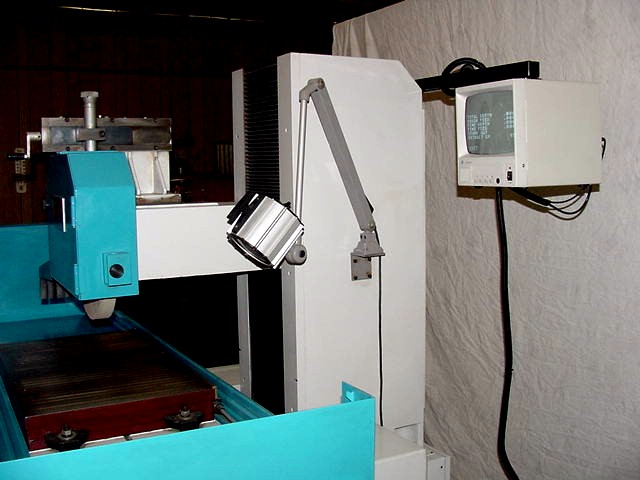

 Work light

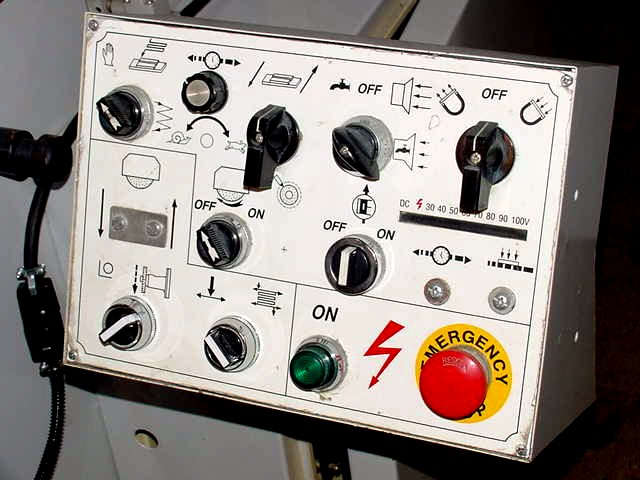

 Push-Button Rapid Up & Down Wheelhead
 Hydraulic Longitudinal Feed
 Power Electric Cross feed

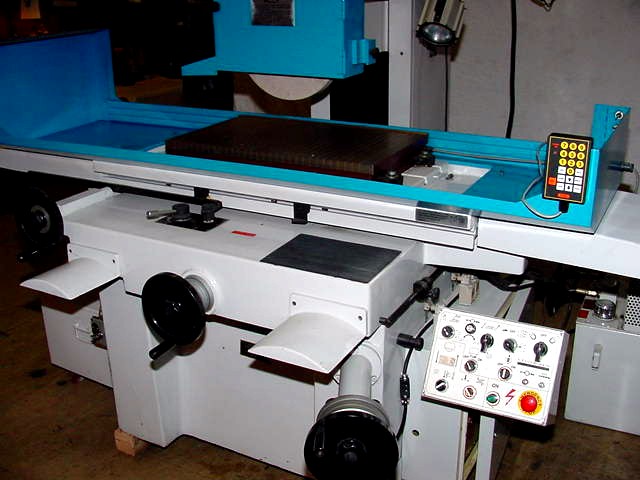

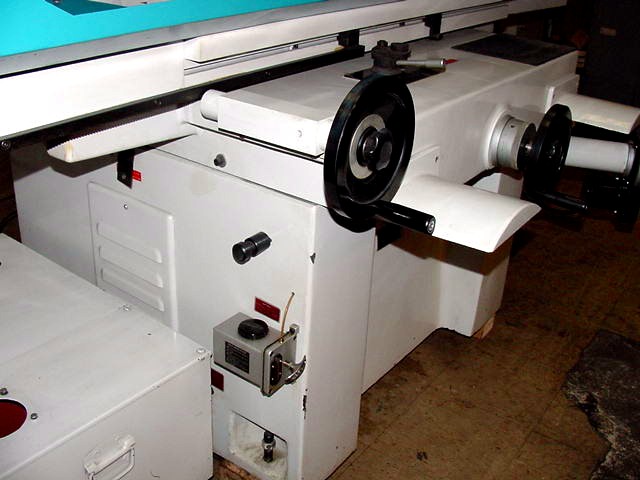

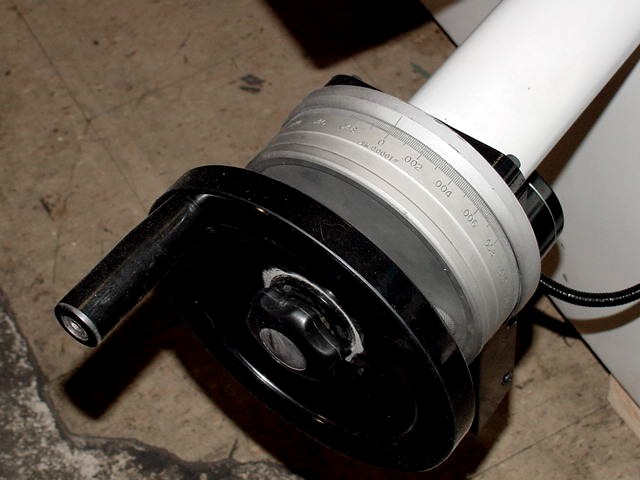

 All (3) handwheels @ operator's hip level
 Machine is presently wired for 3/60/220 volts

 MACHINE WAS MFR'D IN 2001 **
 ** NEW, NEVER USED MACHINE **
** F.O.B. HARRISON, N.J. **
