Reference Number: 139068

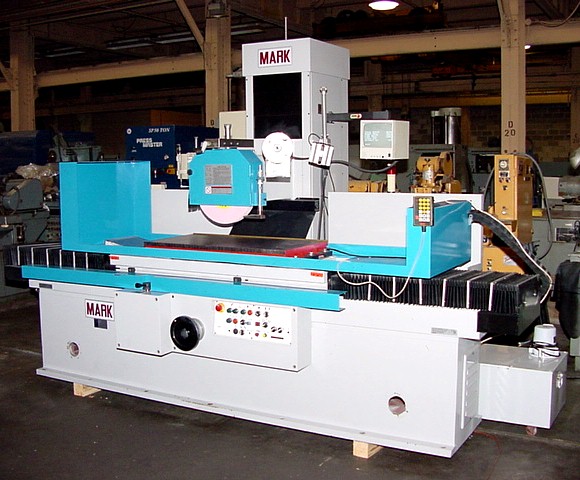

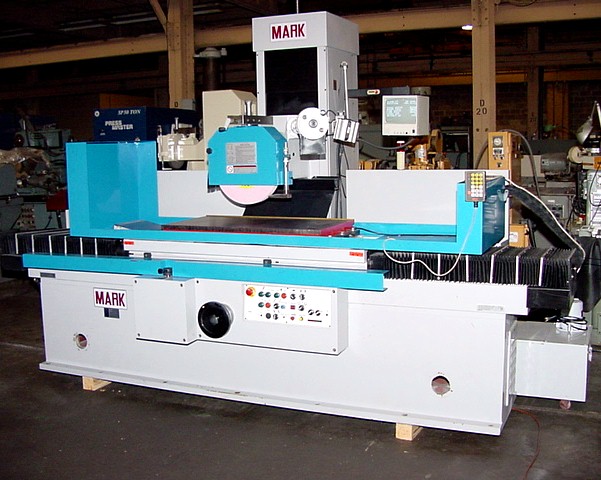

20" x 40" MARK "HEAVY DUTY" COLUMN TYPEPrice: On Request
(MADE BY PROTH) (ALSO SOLD BY SHARP)
PRECISION SURFACE GRINDER
NEW, NEVER USED!
MODEL CD-26
PROGRAMMABLE MICROPROCESSOR
AUTO INCREMENTAL DOWNFEED CONTROL
w/CRT DISPLAY & PENDANT MDI
ADDED TO MACHINE IN 2007 BY FACTORY
TRAINED TECHNICIAN
MODEL : 2040 S/N: 0108J-01 NEW: 2001
WIDTH & LENGTH GROUND ....................... 20" X 40"
CROSS TRAVEL .................................... 20.9"
LONGITUDINAL TABLE TRAVEL ....................... 47"
SPINDLE CENTER TO TABLE SURFACE ................. 27.6"
LONGITUDINAL HYDRAULIC TABLE FEED ..... 6.6' TO 82' FPM
INTERMITTENT CROSS FEED (IN. FEED) .. 0.004" - 0.6" IPM
CONTINUOUS CROSS FEED (BALLSCREW) ............. 39" IPM
NO. OF GRADUATIONS ON DIAL ........................ 200
FEED PER GRADUATION ........................... 0.0001"
FEED PER REVOLUTION ............................ 0.200"
VERTICAL TRAVEL
NO. OF GRADUATIONS ON DIAL ........................ 100
FEED PER GRADUATION ........................... 0.0001"
FEED PER REVOLUTION ............................ 0.010"
RAPID DOWNFEED (OPTIONAL) .................... 11.8 IPM
WHEEL SIZE (OD X WIDTH X ID) ............. 14" X 2" X 5"
SPINDLE MOTOR ................................... 10 HP
COOLANT SYSTEM MOTOR ........................... 1/8 HP
APPROXIMATE WEIGHT ......................... 16,000 LBS
APPROXIMATE DIMENSIONS (W X D X H) ..... 180"L-R x 90"D
x 101"H
EQUIPPED WITH:
"AMW" MICROPROCESSOR CONTROLLED (CRT DISPLAY) AUTO
INCREMENTAL DOWNFEED CONTROL (PLUNGE & SURFACE GRIND
MODES) ..... INSTALLED NEW IN 2007.
MANUAL "OVER-THE-WHEEL" DRESSER
HYDRAULIC POWER LONGITUDINAL TABLE FEED
POWER ELECTRIC CROSS FEED w/BALL SCREW
POWER RAPID WHEELHEAD POSITIONING
ANTI-FRICTION COATING ON WAYS
20" X 40" ELECTRO-MAGNETIC CHUCK W/NEUTROFIER CONTROL
COOLANT SYSTEM
** NEW!, NEVER USED! - WOW! **
** INSPECT IN OUR HARRISON, NJ FACILITY **
