Reference Number: 139147

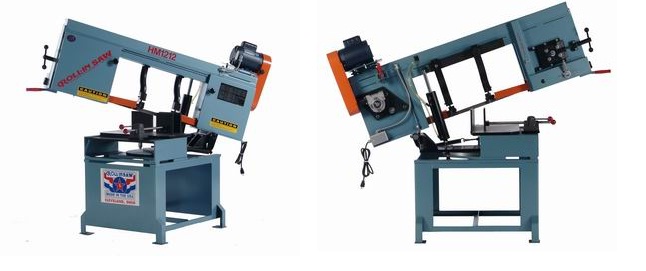

Price: $4,650THE NEW ROLL-IN "SPIDER" Model HM-1212
THE INDUSTRY'S TOP HORIZONTAL MITRE BAND SAW
Roll-In Saw's horizontal miter band saws are ideal for your
precision-cutting needs. This model is fast and accurate for
straight and angle cuts at 60° in both directions. You will be
purchasing the highest capacity saw in its class. The heavy duty
Roll-In Saw design assures you years of reliable and efficient
service.
Special Features:
Blade cleaning brush
Adjustable cast iron guide arms
Automatic shutoff (safety magnetic starter)
Quick action vise (can be moved to either side)
SPECIFICATIONS:
Capacity Under Guides 12" Round @ 90°, 12" x 10" Rectangle @90°
9" Round @ 45°, 9" Square @ 45°
6" Round @ 60°, 6" Square @ 60°
Motor 1 HP 110/220V single-phase
Blade Size 1" x 11'8" .035 thick (bi-metal)
Swivel Swivels 60° both directions
Blade Guards Pulleys and blade
Blade Speeds 70/140/270 sfpm
Table Height 30" from floor
Feed Systems Hydraulic cylinder for controlled feeds
Wheels Cast Iron Wheels
Dimensions 26"W x 63"H x 73"L
Shipping Weight 700 lbs., F.O.B. Cleveland, Ohio
Optional Equipment:
Casters 4 Per Set
Made in the USA
One Year Limited Warranty
