Reference Number: 139190
20" OPTICAL GAGING PRODUCTS, INC. (O.G.P.)Price: On Request

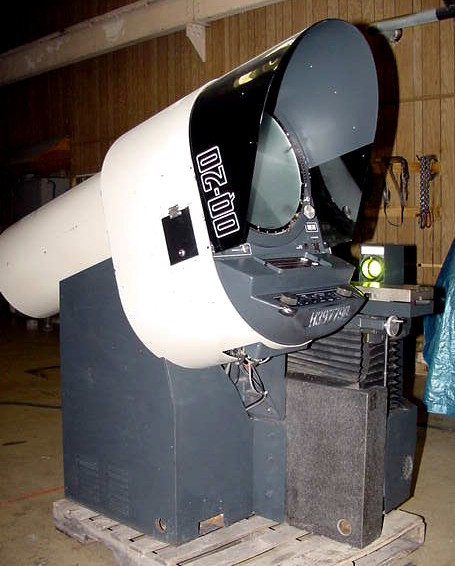

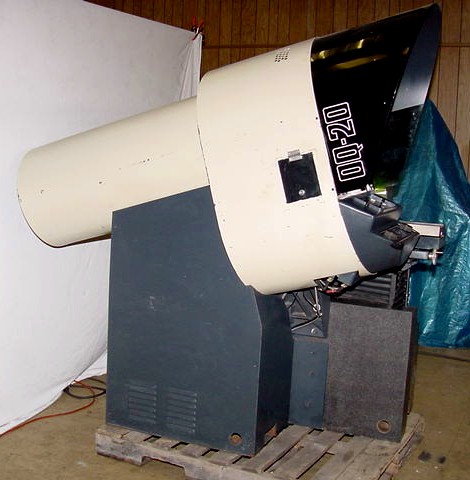

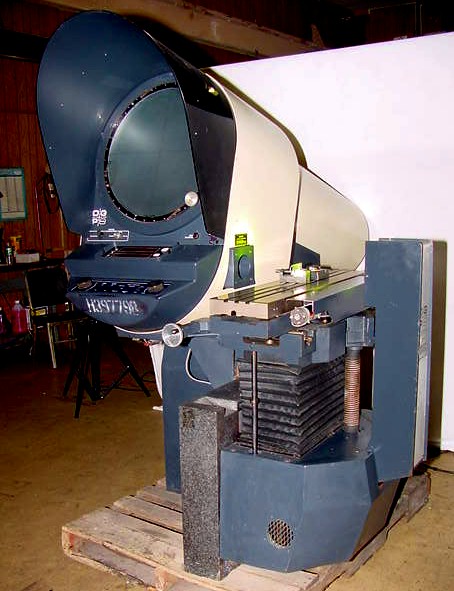

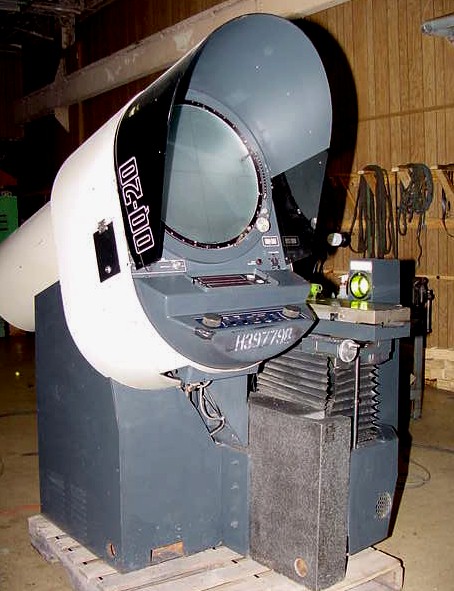

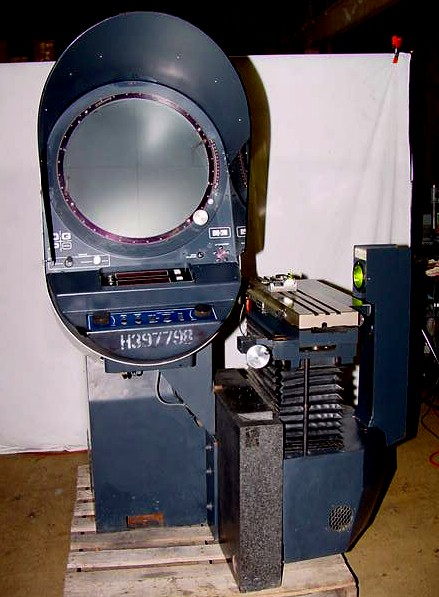

HORIZONTAL PROJECTION FLOOR TYPE OPTICAL COMPARATOR

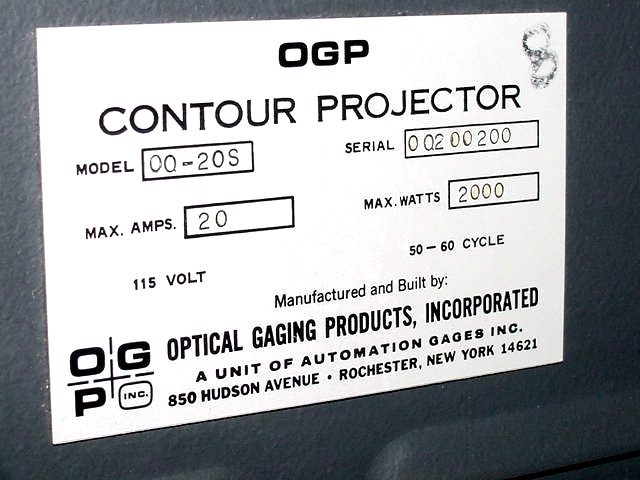

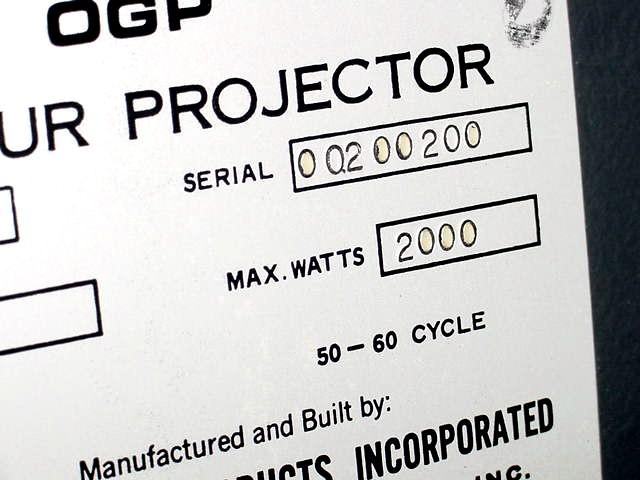

MODEL: OQ-20S S/N: OQ200200 NEW: 1983

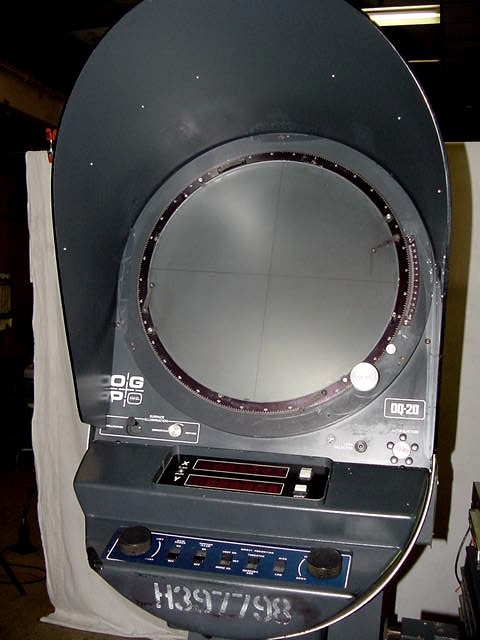

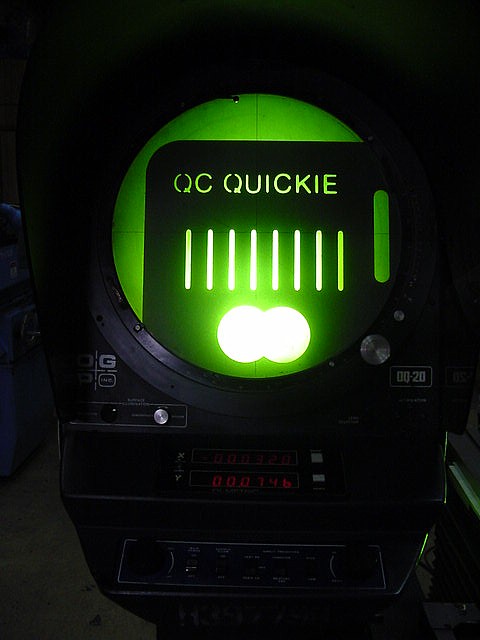

20" DIAMETER SCREEN
SIDE TABLE MOUNTING

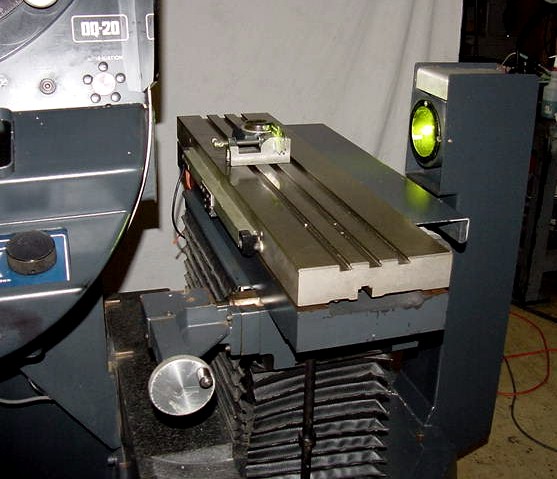

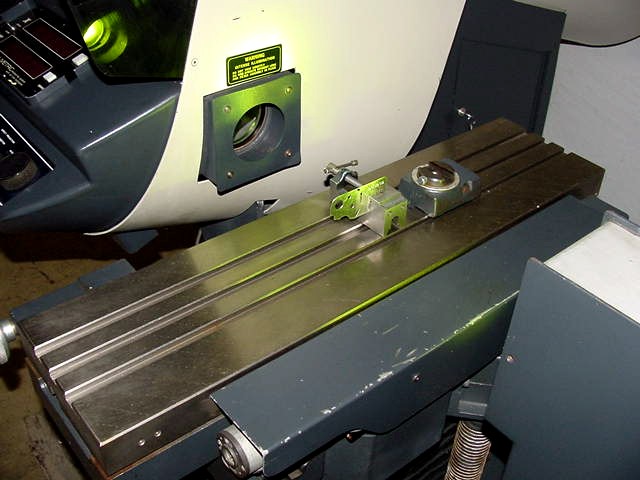

8" X 32" TABLE
12" HORIZONTAL TABLE TRAVEL
9" VERTICAL
HELIX ROTATION (TO 5 DEG. ARC) ................. +/- 10 DEG.
OPTICAL AXIS TO WORK TABLE W/HELIX TABLE ... 3/4" TO 9- 3/4"
OPTICAL AXIS TO WORK TABLE W/0 HELIX TABLE ....... 2" TO 11"
APPROX. DIMENSIONS ............... 77" F-B x 54" L-R x 78"H
APPROX. WEIGHT .................................. 2,200 LBS.
EQUIPPED WITH:

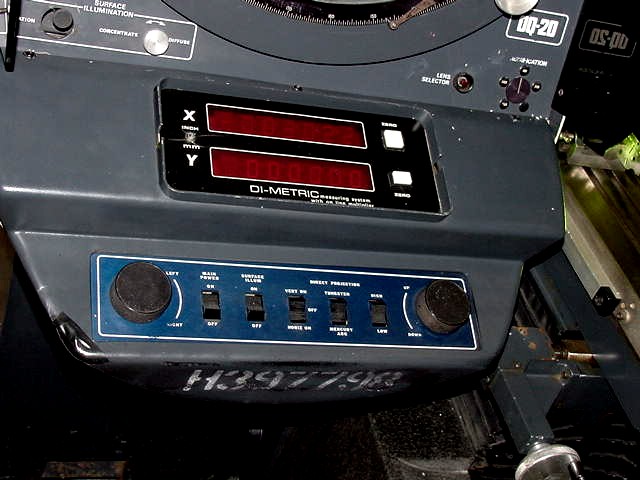

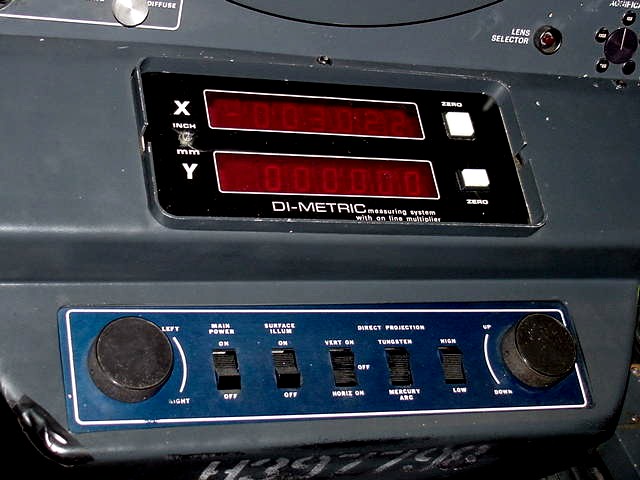

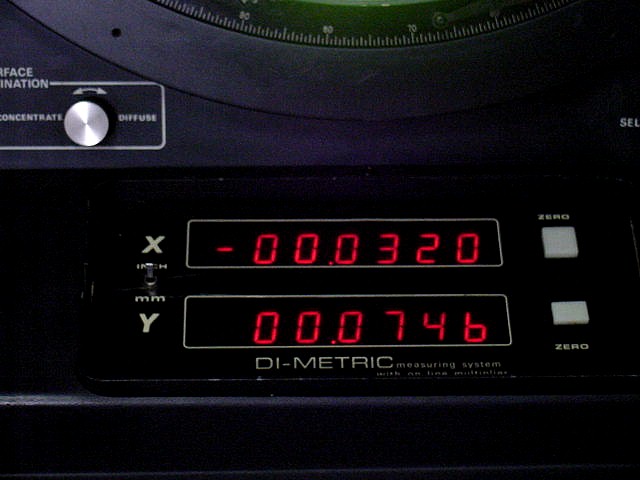

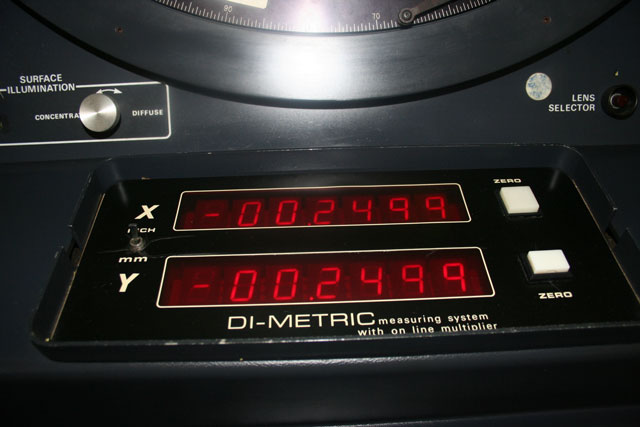

"DI-METRIC" 2-AXIS DIGITAL READOUT DISPLAY
FUNCTION CONTROL CENTER MOUNTED ON AN IN-BUILT
CONSOLE LOCATED IN FRONT OF THE VIEWING SCREEN
HIGH INTENSITY LIGHTING

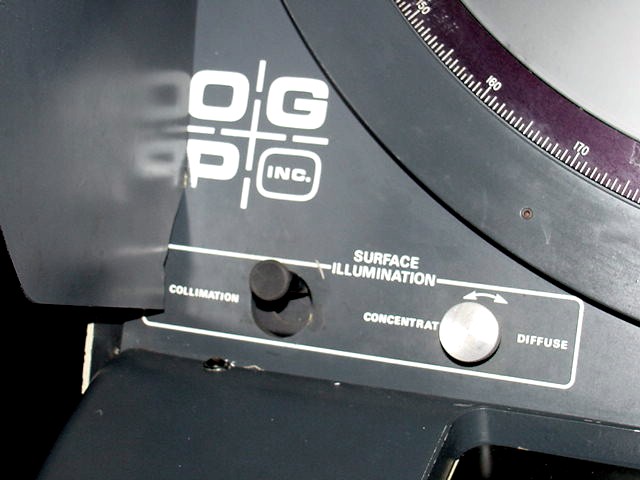

SURFACE ILLUMINATOR
TELECENTRIC RELAY LENS SYSTEM & MIRRORS FOR ERECT,
UNREVERSED IMAGE

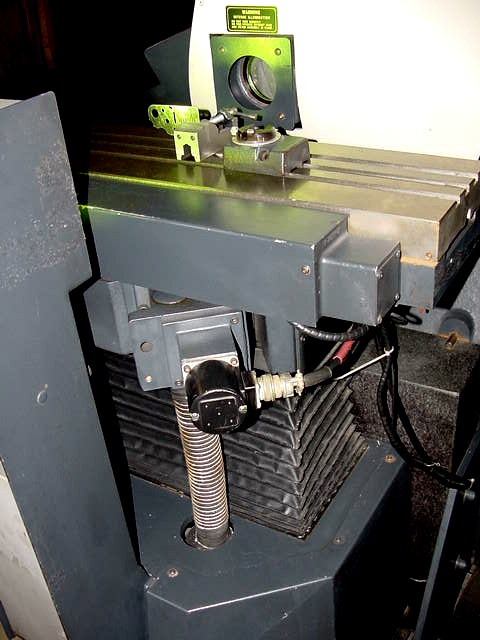

POWER TABLE (LEFT TO RIGHT) (UP AND DOWN)

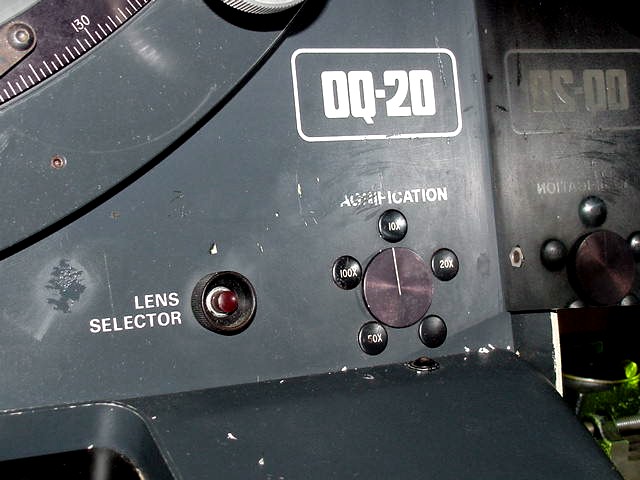

5- POSITION POWER LENS TURRET
w/10X, 20X & 50X LENSES LENSES
SINGLE PHASE/115 VOLT ELECTRICS
** EXCELLENT CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
