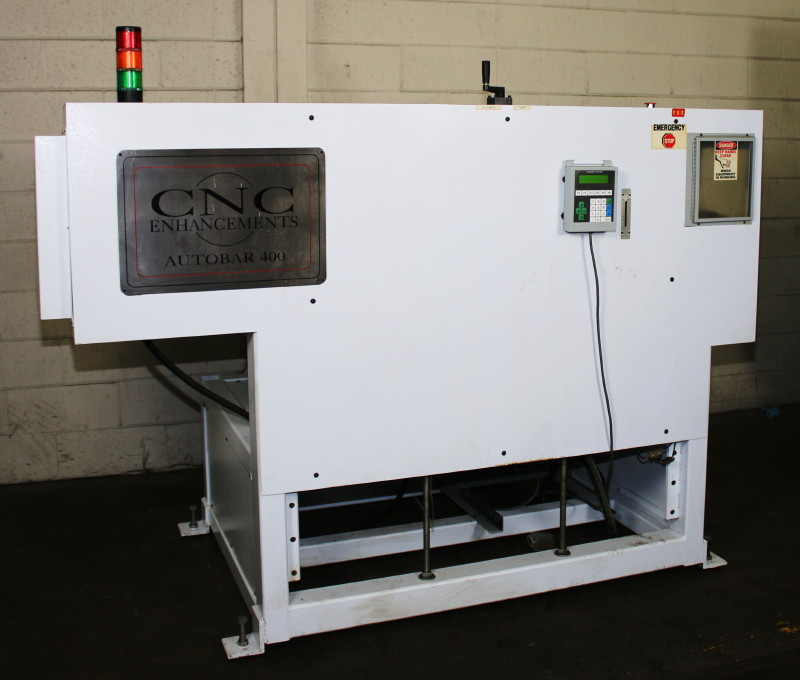

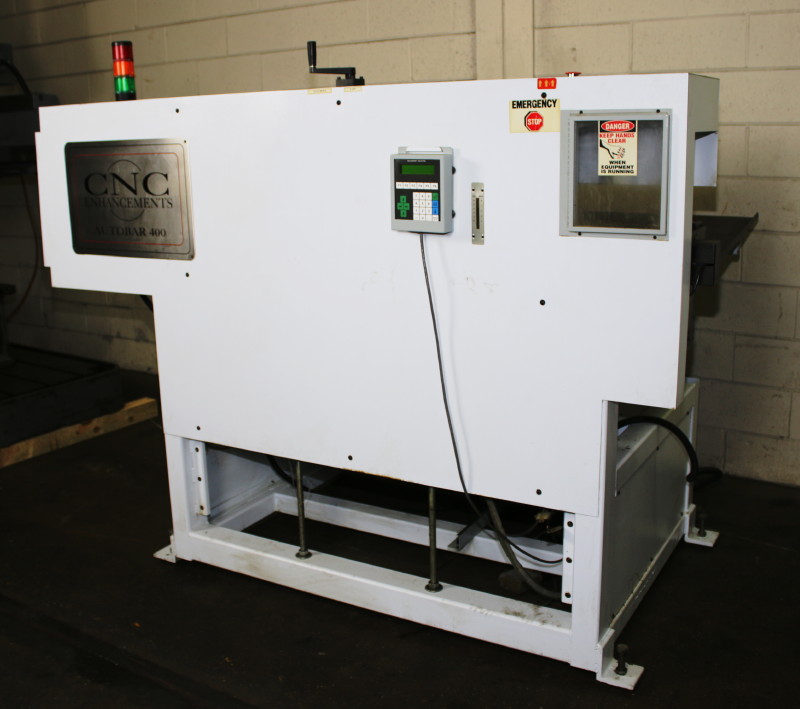

4'' Dia. 5' Length ft CNC Enhancements AB-400 BAR FEED


Reference Number: 139205

CNC ENHANCEMENTS AUTOBAR 400 Automatic Bar Feed, S/N 523, New 1999

Capacity .25" to 4" Diameter
Max. bar length 60"
Material tray capacity (42)-1" Dia. bars
(10)-4" Dia. bars
Air requirement 80 PSI
Spindle height 28" to 55"


Single point centerline adjustment
Programmable feed length
Sub-spindle mode
Collet stop
Ball measurement system for random length bars
Parts counter
Status light
Ball screw driven pusher
Full closed loop encoder feed back
(3) pusher bars
Spindle liner
Adjustable material tray
3/4 H.P. vector AC inverter drive
Mitsubishi Keypad PLC, remote operation, M-Code input
3/60/220 Volt electrics

Approx. weight: 1,500 lbs.

Dimensions: 92"L x 65"W x 81"High

Condition: Exceptional

Price: $6,950
