Reference Number: 139222

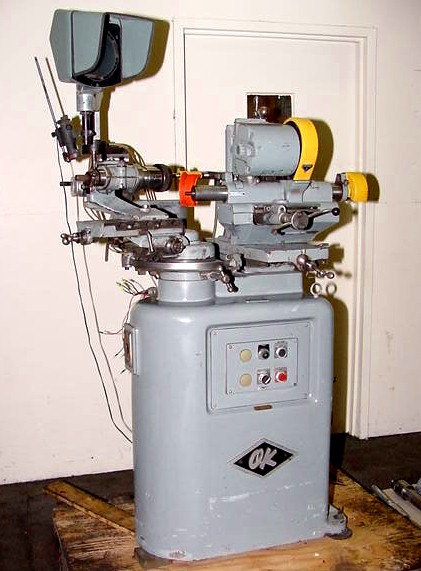

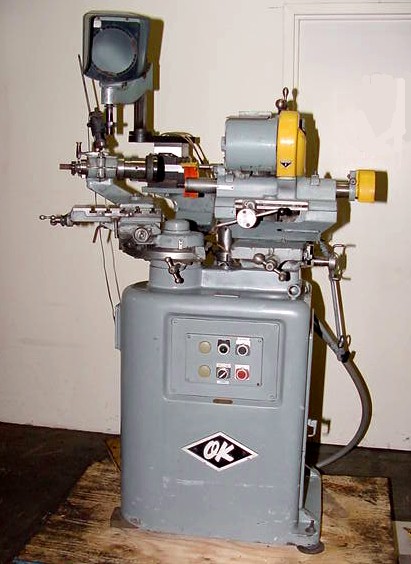

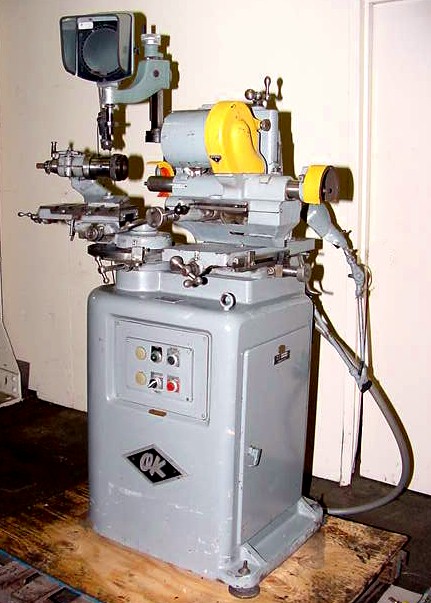

O.K. Tool Radius Grinder

 ** Optical Comparator **

 Model: R6     S/N: R89329    New 1989

  -GRIND END MILLS, REAMERS, MILLING CUTTER,
   COUNTERBORES, COUNTERSINKS, ALL LATHE, SHAPER
   & PLANER FLAT FORM TOOLS .. CARBIDE OR HIGH
   SPEED STEEL, INCLUDING THE FLUTE GRINDING OF
   STRAIGHT FLUTED TOOLS (TAPS, COUNTERBORES,
   ETC.)

  -GRIND BALL NOSE, EVEN ON TAPERED TOOLS, & OTHER
   DIFFERENT SHAPES

  -PUT ACCURATE CORNER RADII WITH PERFECT BLENDS ON
   END MILLS, MILLING CUTTERS, REAMERS, OUNTERBORES
   & SPECIALIZED TOOLING

  -GRIND CLEARANCE ANGLE ON REGULAR OR TAPERED
   FLUTES, STRAIGHT OR HELICAL, AS WELL AS MULTIPLE
   STEPS ON ALL TYPES OF TOOLS

  -WILL ACCOMODATE FLUTE LENGTH TO 4- 1/2".

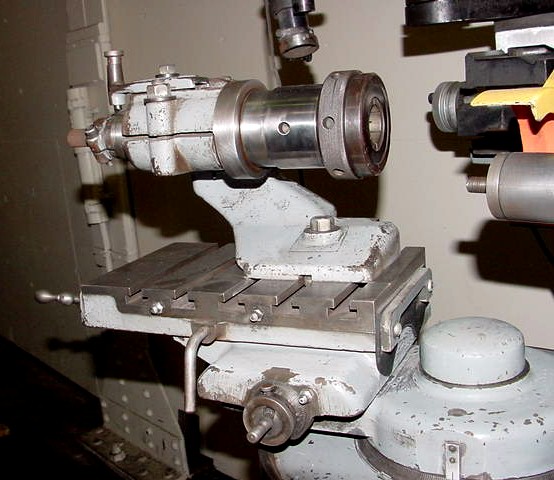

  -WORKHEAD FEATURES X & Y MOTIONS PLUS ROTARY
   & TILT.

  -GRINDING WHEELHEAD MOVES IN X, Y & Z.

  -THE #R6 HAS AN ADDITIONAL GRINDING WHEELHEAD
   FOR HAND GASHING OPERATIONS, SUCH AS OPENING
   UP THE POINT OF A BALL NOSE CUTTER.



 Capacity
 Maximum length of flute accommodated by
   standard machine:....................... 4- 1/2"
 Maximum mill diameter (for head with #9
   B&S spindle) over table:................ 9-1/2"
 Maximum mill diameter (for head with #9 B&S
   spindle) in front of table:............. 12"

 Wheel Spindle Movement
 Axial Travel:............................. 4- 1/2"
 Vertical adjustment:...................... 5-3/8"
 Cross Travel:............................. 6-1/4"
   By rack and pinion feed:................ 4"
   By screw feed for fine adjustment:...... 2-1/4"

 Work Table Size:............... 6-7/16" x 10-7/8"

 Work Table Movement
 Graduated swivel range:.............. 210 degrees
 Adjustment toward and from swivel center:. 3-1/4"
 Cross adjustment:......................... 1-1/4"

 Cutter Head Angular Range
 Tilting of cutter head (each way)......... 20 degrees
 Wheel Spindle Speed, RPM:................. 5,000

 Approx. Weight ......................... 1000 Lbs.


 Equipped With:

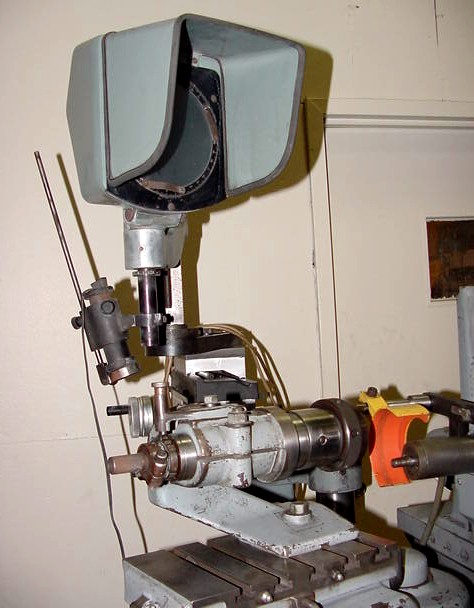

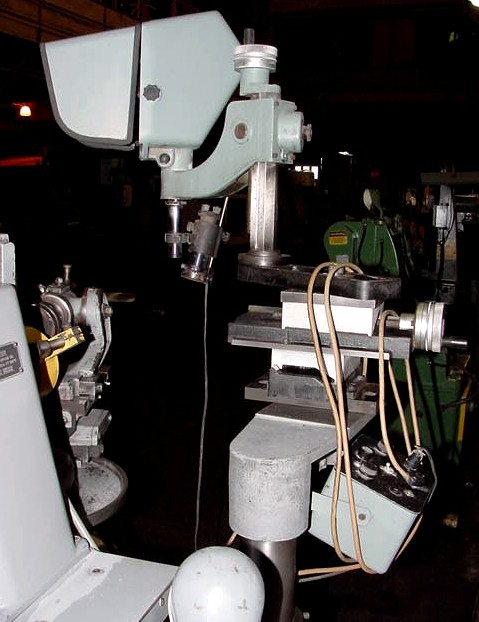

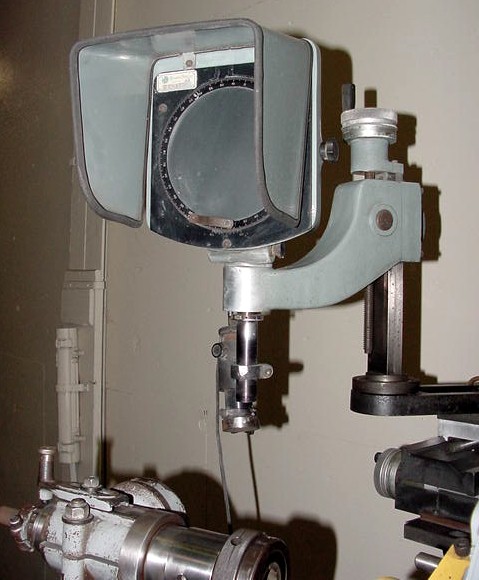

 Optical Comparator Mounted on Independent
  Bracket with Cross Sliding Positioning.
 Ball Bearing Slides for Frictionless Movements
 Workhead with B & S #9 Taper
 Ericson Collets

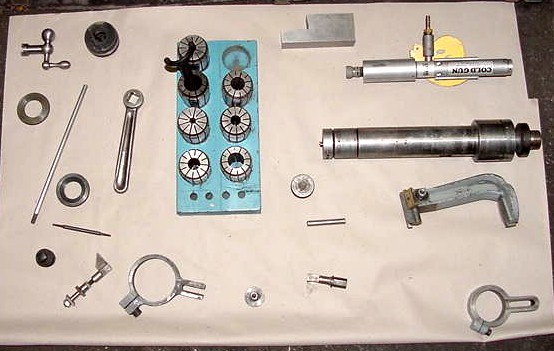

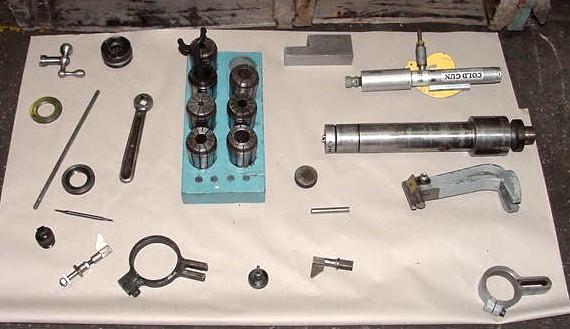

 Extra Accessories
 1/3 HP 3/60/230-460 Volt spindle drive motor

 ** Inspect Under Power in our Harrison, NJ
   Warehouse **

 ** Superb Condition & Appearance **
