Reference Number: 139247

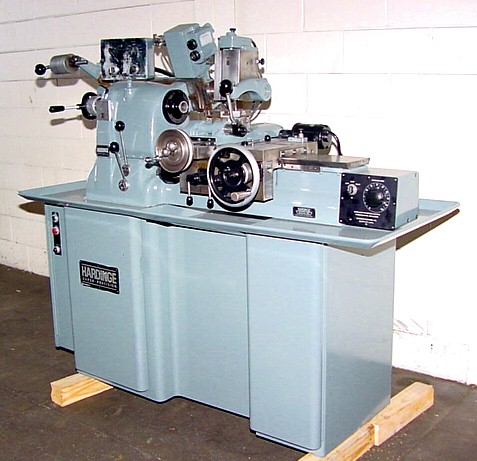

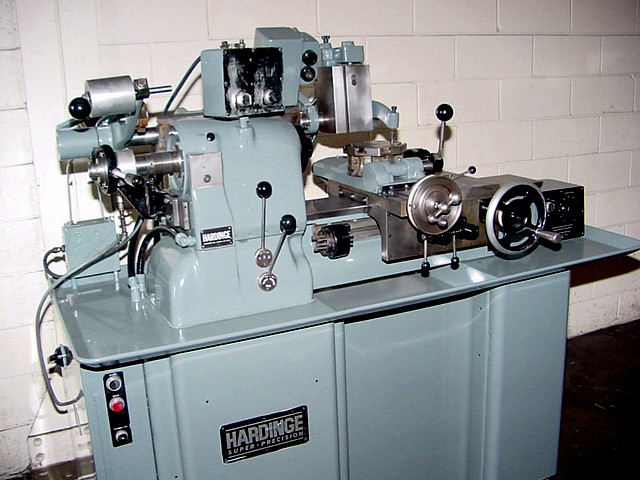

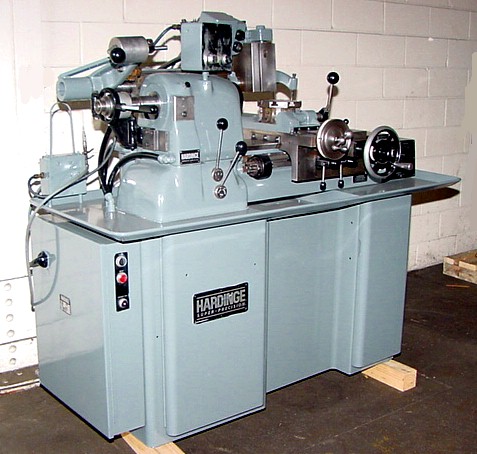

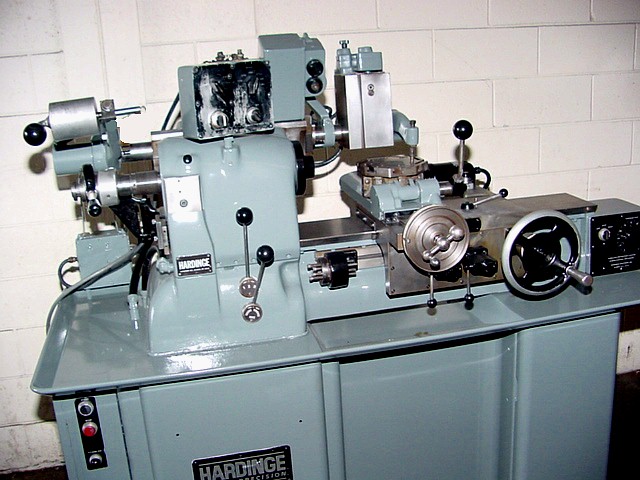

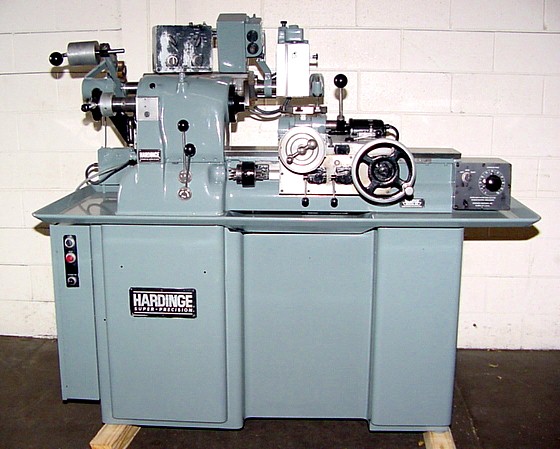

HARDINGE PRECISION CHUCKING LATHE

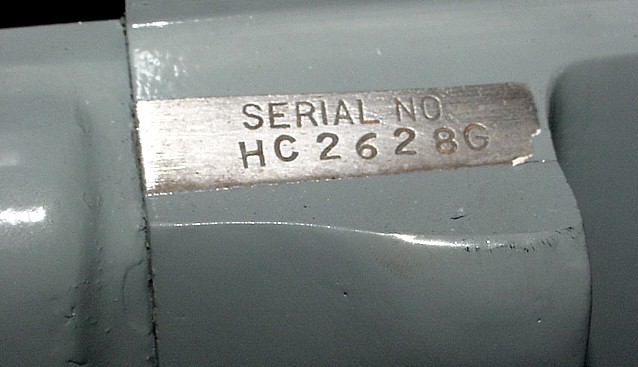

 MODEL HC, S/N HC 2628-G, NEW 1968
 SPECIFICATIONS:
 MAX FIXTURE DIAMETER ................. 9"
 MAX DISTANCE FROM FACE OF TURRET
     TO SPINDLE ..................... 14"
 SPINDLE CAPACITY
     WITH ROUND 5C COLLETS .......... 1-1/16"
     WITH 5C STEP CHUCKS ............ 1-1/16" TO 6"
     WITH JAW CHUCKS ................ 6"
 SPINDLE TAPER ........................ HARDINGE THREADED NOSE
 TRAVEL OF CROSS SLIDE ................ 4-1/2"
 CROSS SLIDE POWER FEED RANGE ......... 11/32 TO 6-1/4 IPM
 CARRIAGE POWER FEED RANGE ............ 1/4 TO 10 IPM

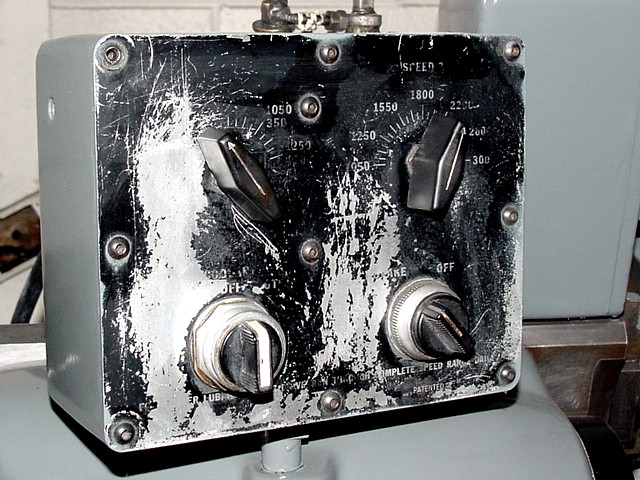

 VARIABLE SPINDLE SPEEDS, (3 SELECTOR)
     LOW SPEEDS ..................... 125 - 1,100 RPM
     HIGH SPEEDS .................... 1100 - 3,000 RPM
 APPROXIMATE WEIGHT ................... 1,750 LBS.

 EQUIPPED WITH:
 - HARDENED AND GROUND DOVETAIL BED

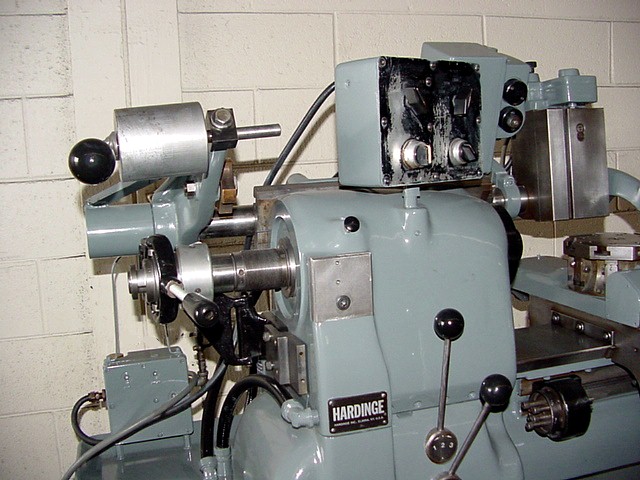

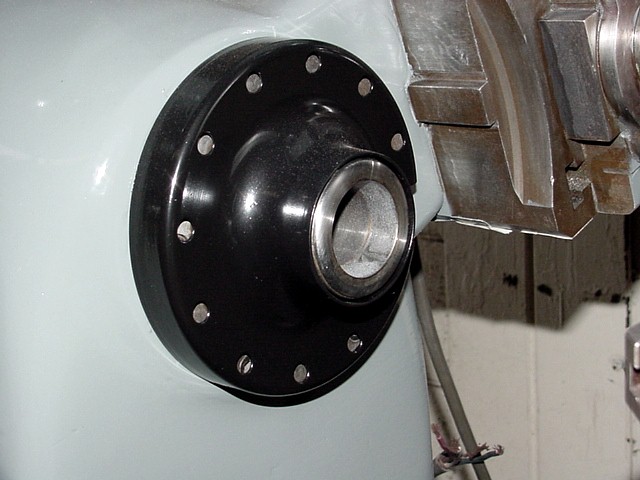

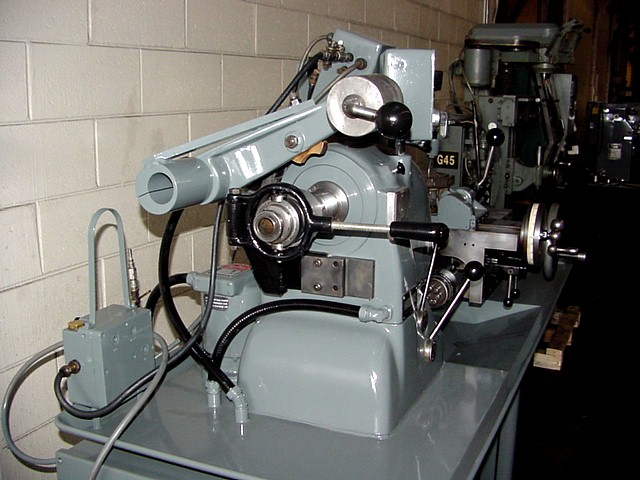

 - LEVER-TYPE COLLET CLOSER FOR TYPE 5C COLLETS

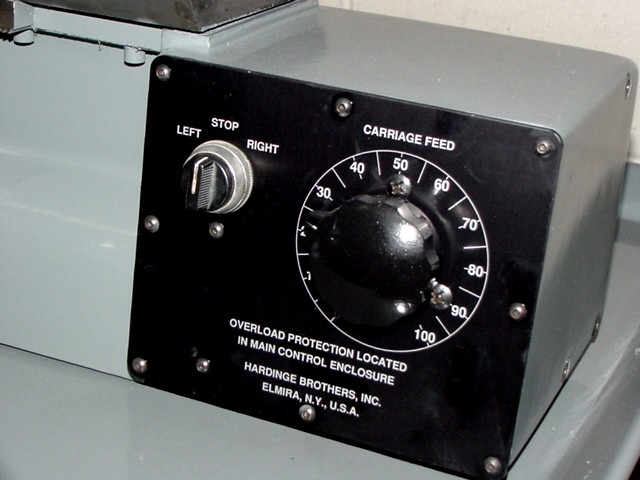

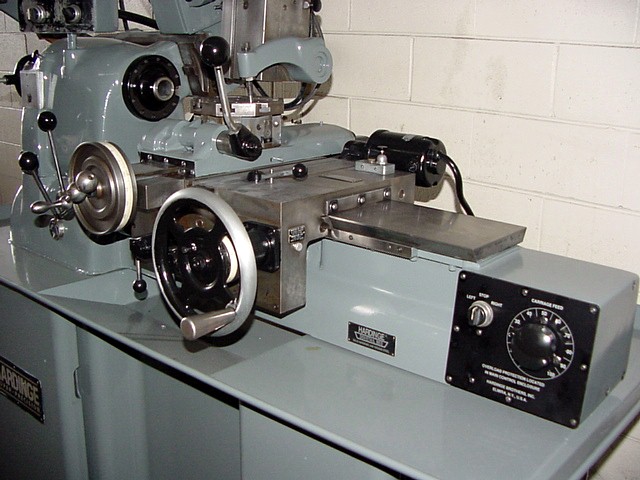

 - INDEPENDENT ELECTRICAL VARIABLE POWER FEED TO CARRIAGE

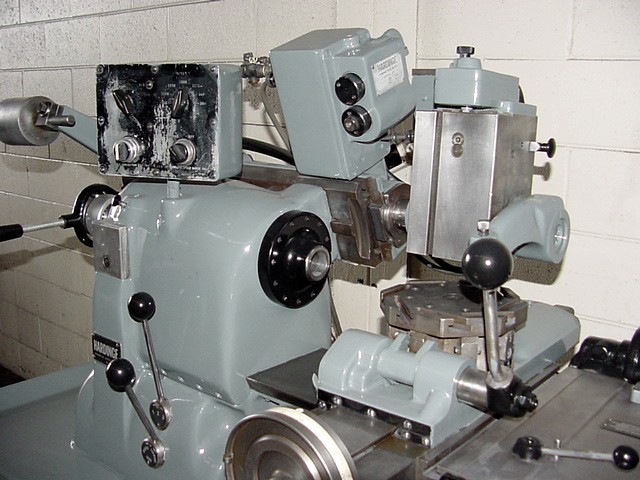

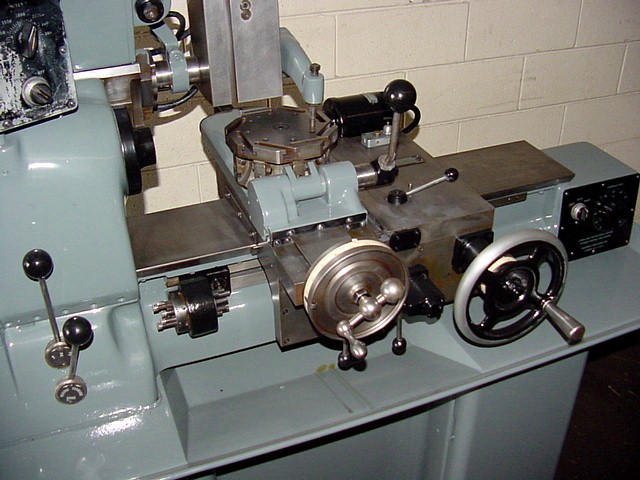

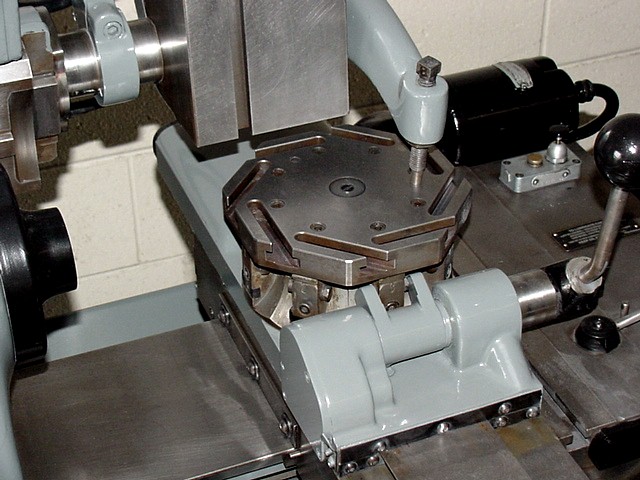

 - EIGHT STATION CROSS FEEDING TURRET WITH ADJUSTABLE STATIONS

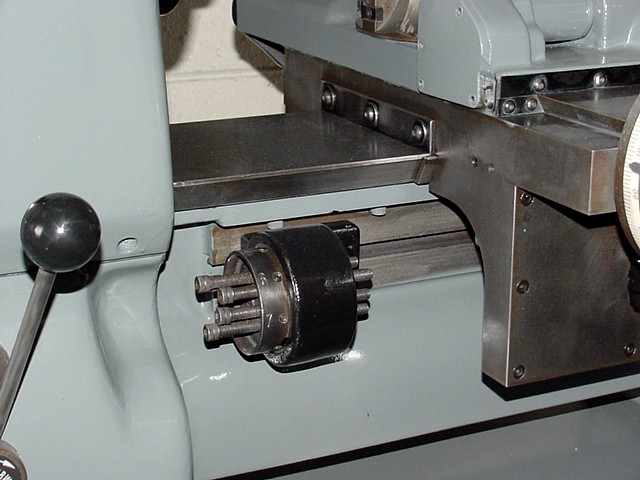

 - EIGHT POSITION TURRET-TYPE CARRIAGE STOP
 - SELF-CONTAINED COOLANT SYSTEM

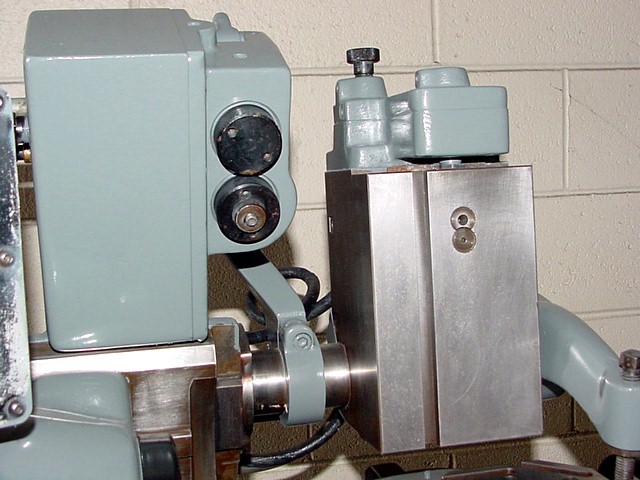

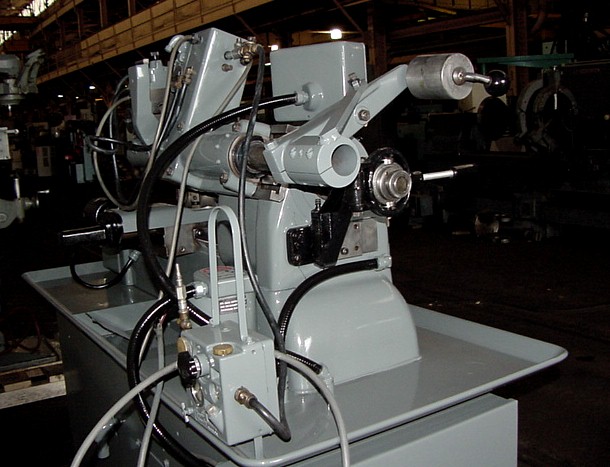

 - AUTOMATIC THREADING ATTACHMENT
 - ACCESSORIES LIKE CHUCKS OR TURRET TOOLING ARE AVAILABLE
 AT EXTRA COST

 INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

 CONDITION:    ****   VERY GOOD   ****
