Reference Number: 139347

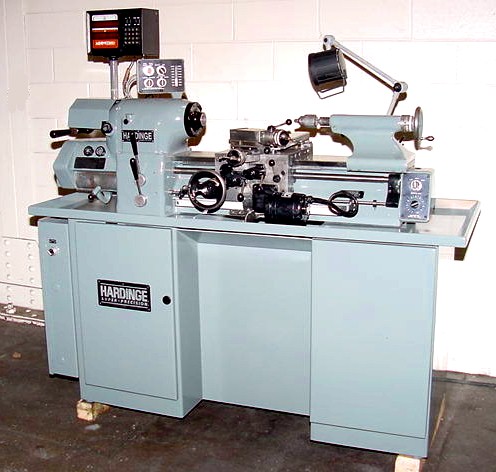

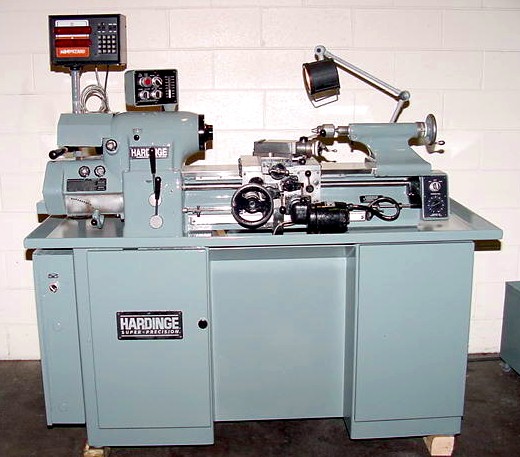

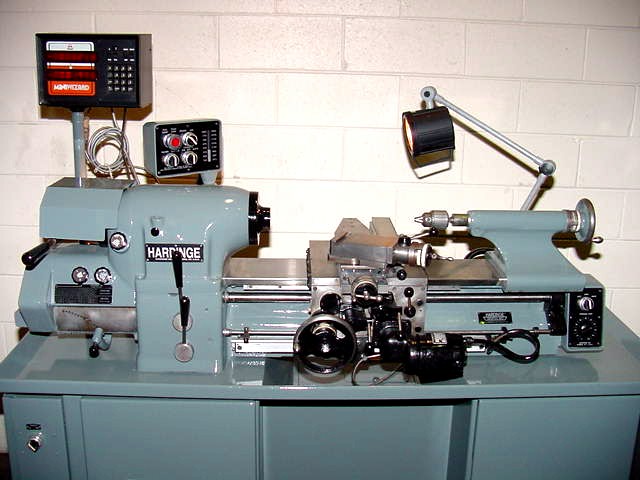

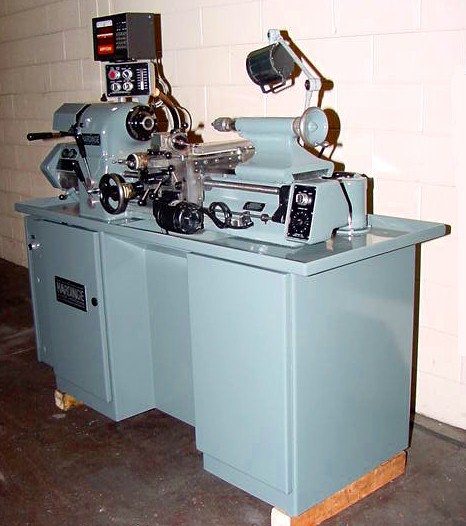

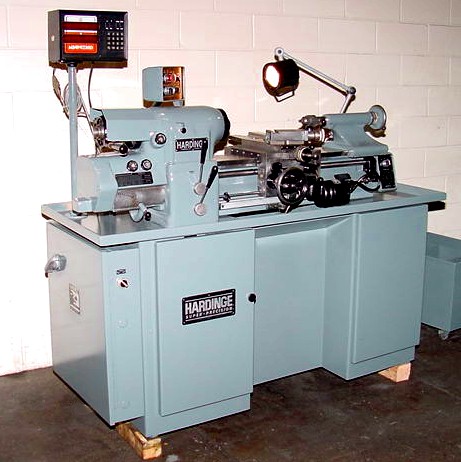

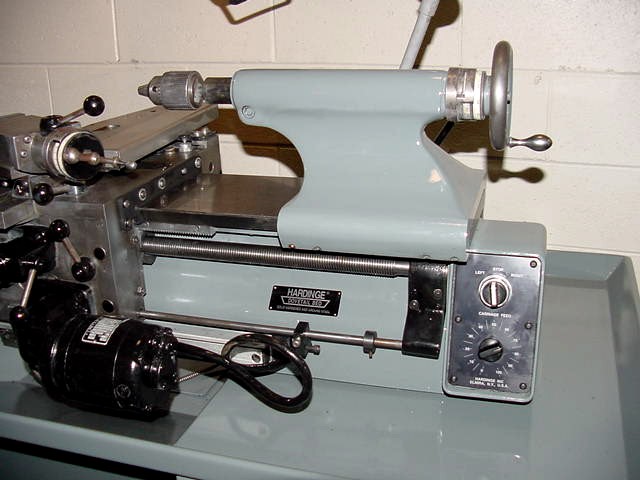

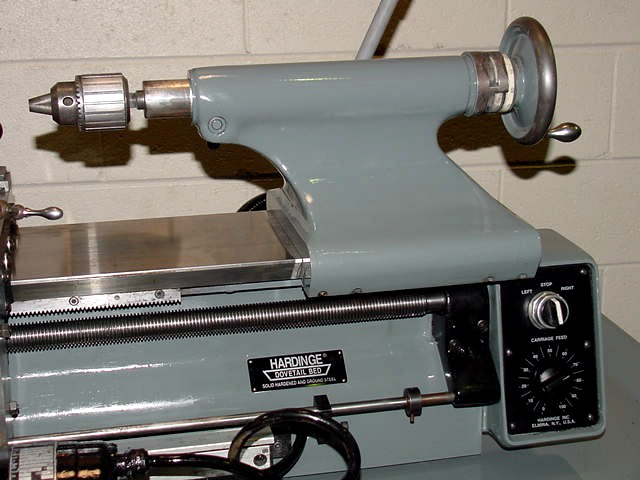

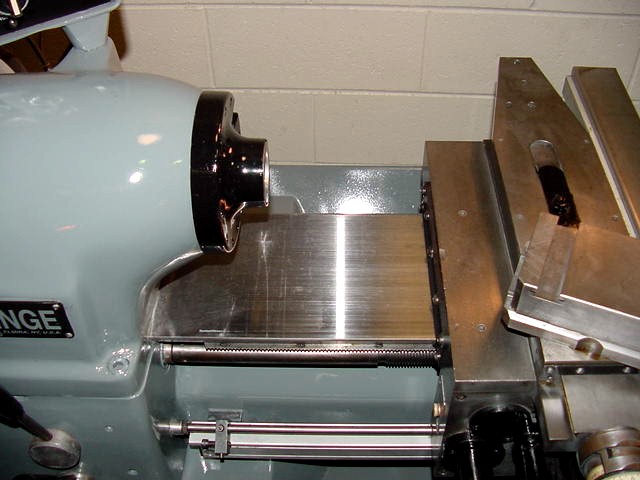

HARDINGE SUPER PRECISION TOOL ROOM LATHE,

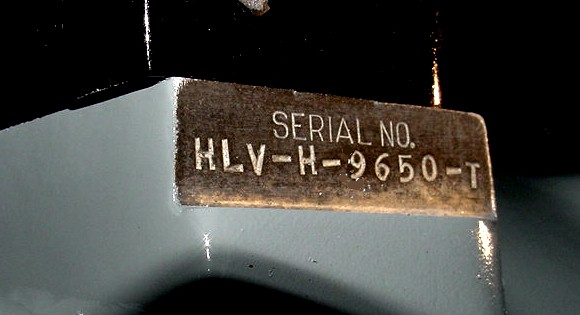

 MODEL HLV-H-EM,  S/N: HLV-H-9650-T,  NEW 1983
 SPECIFICATIONS:
 SPINDLE CONSTRUCTION ................. HARDINGE BALL BEARING
 SPINDLE NOSE ......................... HARDINGE TAPER
 SPINDLE CAPACITY:
     WITH ROUND TYPE 5C COLLETS ..... 1-1/16"
 WITH STEP CHUCKS ............... 1-1/16" TO 6"
 WITH JAW CHUCKS ................ 5"
 WITH EXPANDING COLLETS ......... 3"
 VARIABLE SPINDLE SPEEDS .............. 125 - 3,000 R.P.M.
 HOLE THROUGH SPINDLE ................. 1-1/4"
 SWING OVER BED ....................... 11"
 SWING OVER CARRIAGE .................. 9"
 SWING OVER CROSS SLIDE ............... 6"
 DISTANCE BETWEEN CENTERS ............. 18"
 COMPOUND SLIDE TRAVEL ................ 3"
 CARRIAGE POWER FEED RANGE ............ 5/16 - 7 I.P.M.
 CROSS SLIDE POWER FEED RANGE ......... 3/16 - 4 I.P.M.

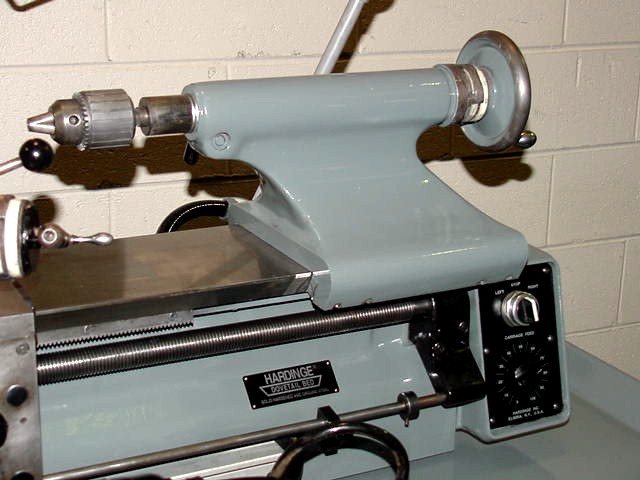

 TAILSTOCK SPINDLE DIAMETER ........... 1-3/8"
 TAILSTOCK SPINDLE TAPER .............. #2 MT
 INCH THREADING RANGE IN GEARBOX (36) . 11 - 108 T.P.I.
 METRIC THREADING RANGE IN GEARBOX (36) 0.275 - 2.7 MM
 APPROXIMATE WEIGHT ................... 1,700 LBS.

 EQUIPPED WITH:

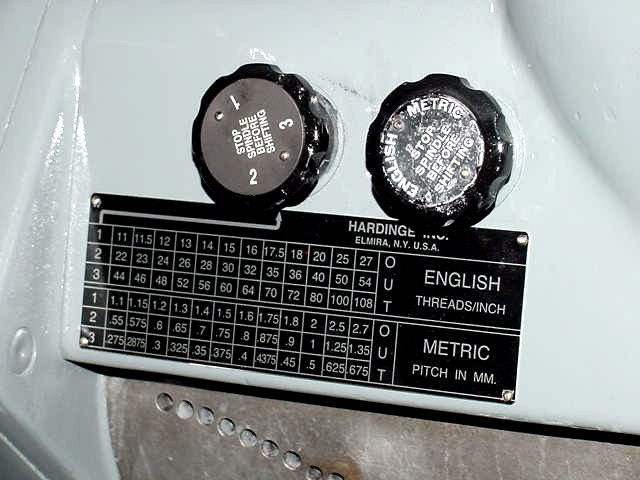

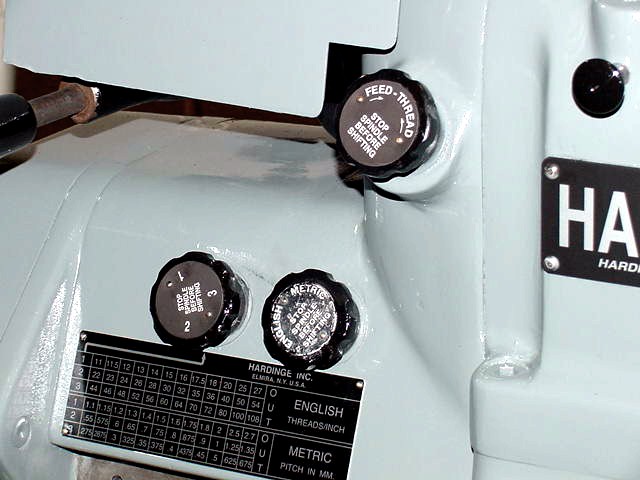

 - DUAL GEARBOX FOR PRECISION ENGLISH OR METRIC THREAD CUTTING

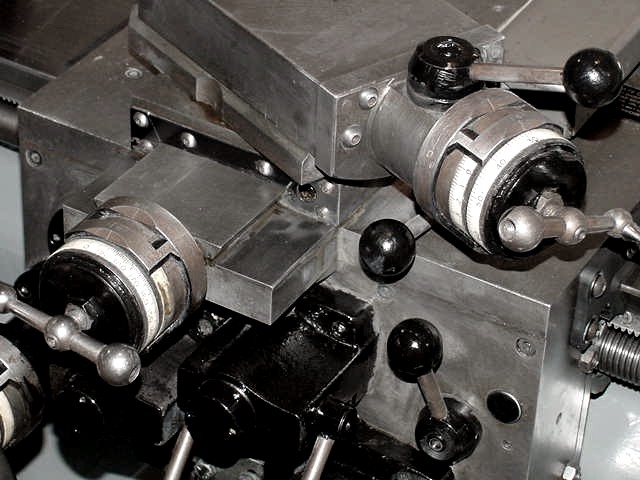

 - DUAL READING INCH/METRIC DIAL FOR COMPOUND AND TAILSTOCK

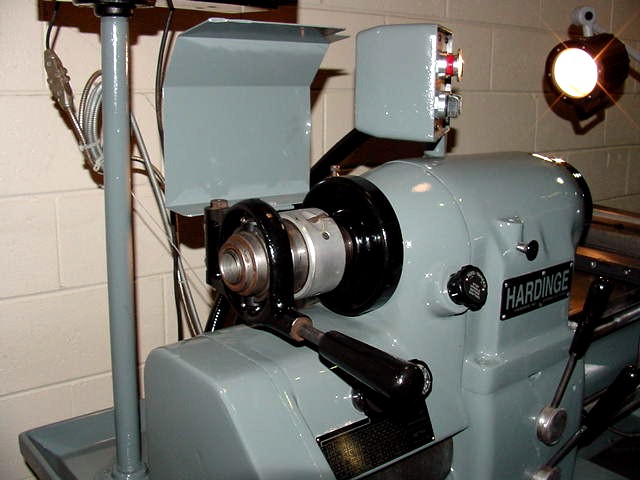

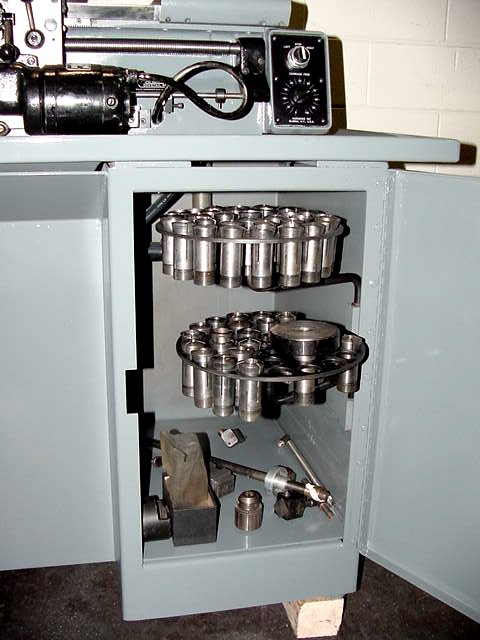

 - BALL BEARING QUICK ACTING 5C COLLET CLOSER WITH A LARGE
 ASSORTMENT OF TYPE 5C ROUND COLLETS

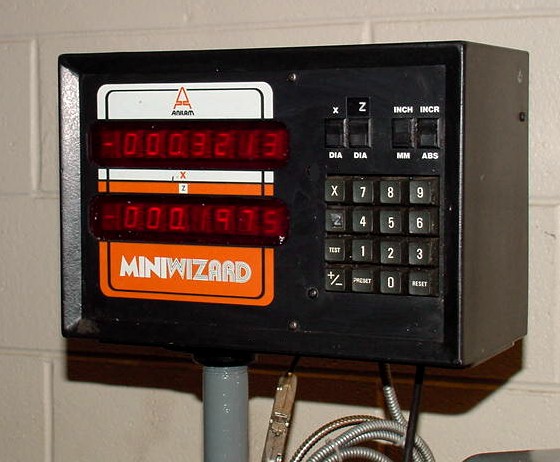

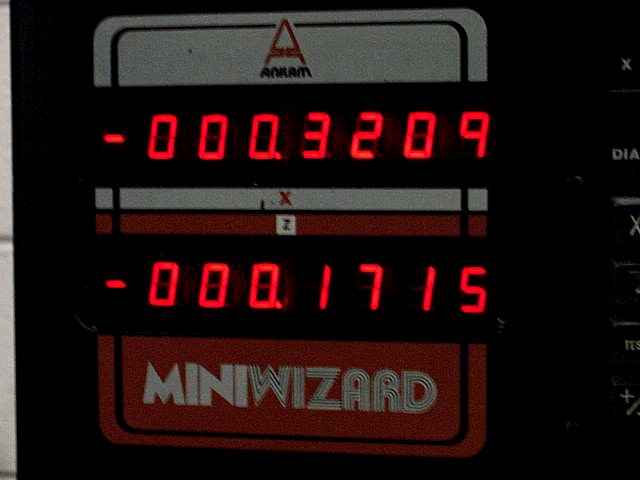

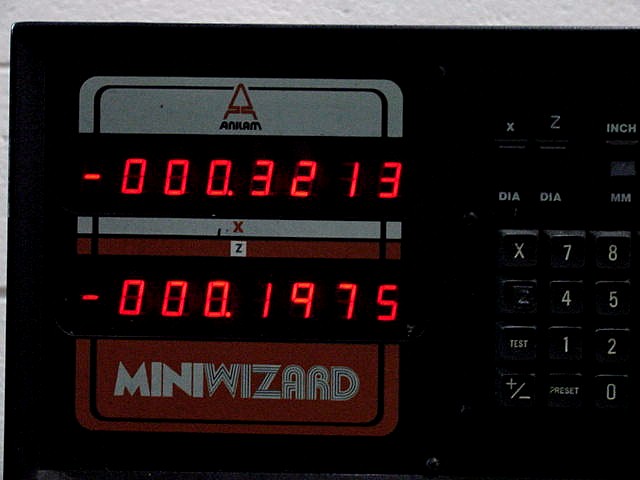

 - ANILAM MINI-WIZARD TWO-AXIS DIGITAL READOUT
 - SELF-CONTAINED COOLANT SYSTEM WITH TRANSPARENT CHIP AND
 COOLANT SHIELD
 - JACOBS DRILL CHUCK FOR TAILSTOCK
 - WORK LIGHT

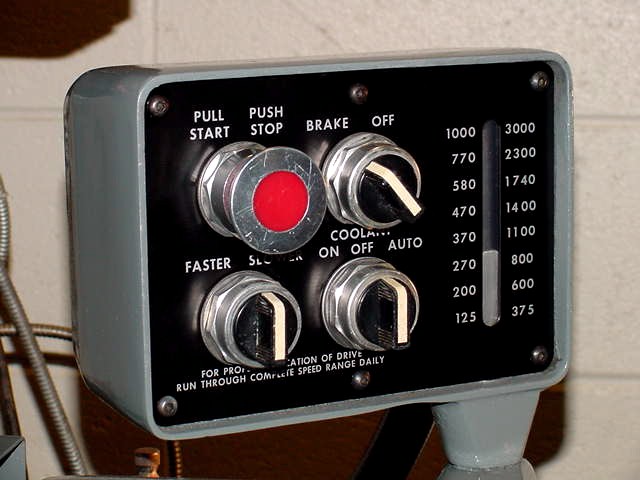

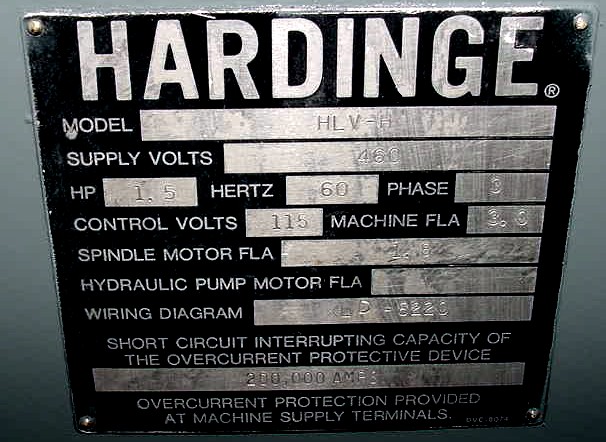

 - .5 - 1 H.P. 3/60/460 VOLT TWO-SPEED MAIN DRIVE MOTOR AND
 ELECTRICAL CONTROLS

 INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE.

 CONDITION: EXCELLENT - OUT OF A FORTUNE 500 COMPANY!!
