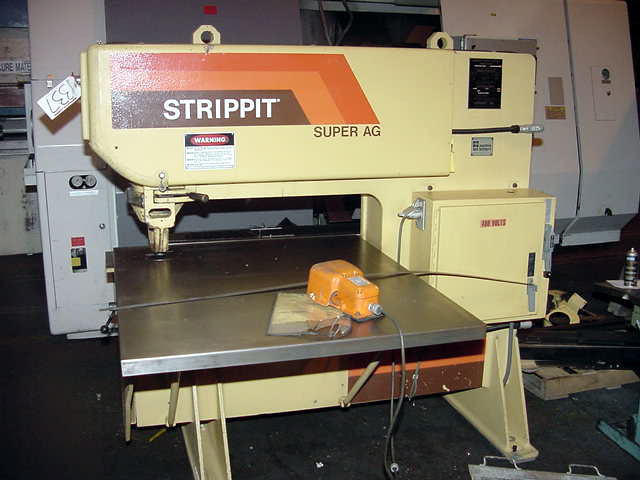

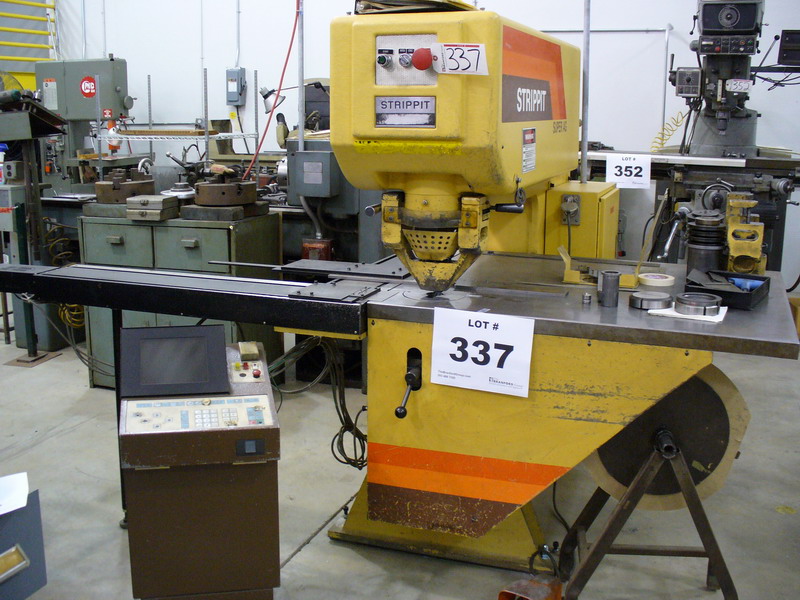

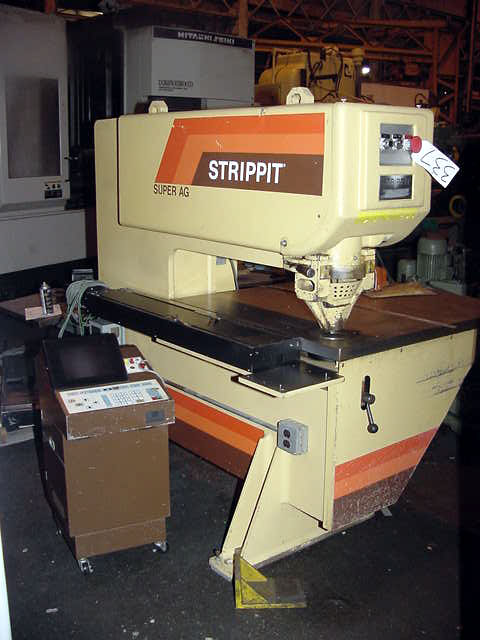

30 Tons 30'' Throat Strippit SUPER AG CNC PUNCH PRESS, Programmable CNC Control

















Reference Number: 139522


Strippit Super AG CNC 2-Axis Gauging

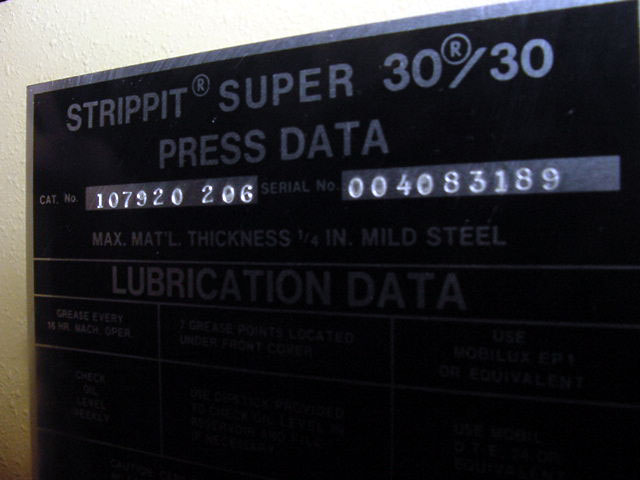

STRIPPIT SUPER AG  30/30
S/N 004083189     NEW 1989

Storage & Edit Bubble Memory (128K Memory).
Manual Data Input.
Calculation Mode.
Programmable Feed Rate.
Decimal Point Programming.
Absolute/Incremental Programming.
15 Digit Program / Part Number.

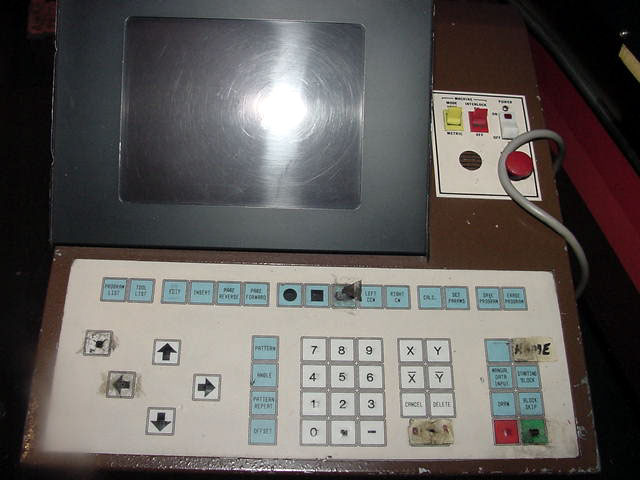

CRT Display for Command, Absolute Position, Tool.
Machine Status, Date, & Part Drawing.
Automatic Parts Counter.
Block Delete.
Inch/Metric Switchable.
Pattern Functions Includes.
Grid From Center Position.
Grid From Corner Position.
Bolt Hole Circle.
Rectangular Cut Out With Square or Radius Corners.
Arc.
Circular Nibbling.
Straight Nibbling.
All of above Can Be Rotated To Any Angle.
Lists All Programs.
Lists All Tools In Order Of Shape & Size Required For Individual
Programs.
Offset to Datum Lines

Maximum Material - .250" (6.3mm)

Capacity

1.000" dia. (25.4mm) in .250" (6.3mm) mild steel
3.500" dia" (88.9mm) in 12 ga. (2.6mm) mild steel

Axis Travel -  30.00" x 39.37" (400mm x 1000mm)

Positioning Accuracy -  +/.005" (+/.13mm)

Positioning Speed - Up to 590 IPM (15 MPM) -

Adjustable Strokes Per Minute - 80 (Operator Dependent)

Width - 100"
Height - 68"
Depth - 51"
Table Height - 39"
Shipping Weight 7,300 Lbs.


Price: $14,500
