Reference Number: 139647

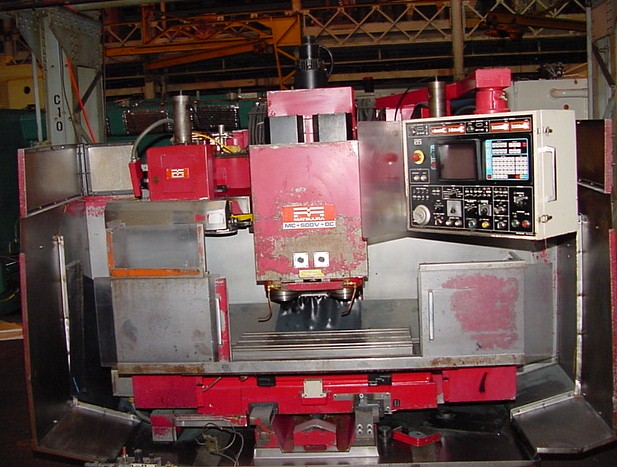

MATSUURA MC500VDC TWIN SPINDLE VERTICAL MACHINING CENTERPrice: $5,950
1985
SPECIFICATIONS:
TABLE DIMENSIONS 15" x 34"
MAX. TABLE LOAD 660 LBS.
AXIS TRAVELS X,Y,Z 20", 14", 17.7"
RAPID TRAVERSE 590 IPM
CUTTING FEEDRATE 0 - 197 IPM
SPINDLE NOSE TO TABLE 5.9" - 23.6"
SPINDLE CENTER DISTANCE 12"
SPINDLE CENTER TO COLUMN 16.14"
MAIN MOTOR 5/7.5 HP
SPINDLE SPEED 4000 RPM
SPINDLE TAPER BT - 35
NUMBER OF TOOLS 20 x 2
TOOL CHANGE TIME 6 SECS.
MAX. TOOL DIAMETER 5.9"
MAX. TOOL LENGTH 9.84"
MAX. TOOL WEIGHT 13.2 LBS.
MACHINE WEIGHT 8800 LBS.
MACHINE HEIGHT 97"
FLOOR AREA 3630mm x 2740mm
EQUIPPED WITH:
YASNAC MX-1 CONTROL
