Reference Number: 139679

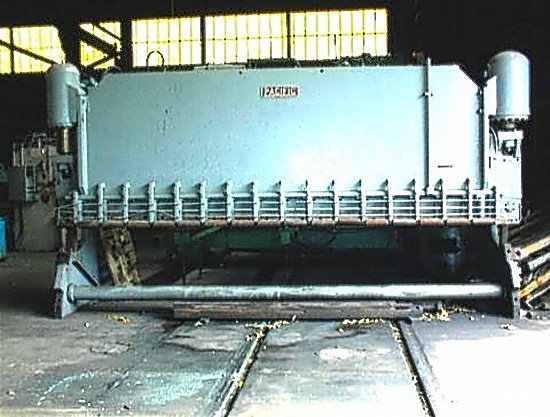

Price: $29,5001/2" x 16' PACIFIC Power Squaring Shear Capacity 16' x 1/2" @ Rake Angle 3/8" Per Foot
No. 500R16 New 1967
16' x 3/4" Rake Angle 5/8" Per Foot
Distance Between Housings 16'3"
Gap 18"
Rake Angle 3/8" Per Foot Adjustable to 5/8" Per Foot Maximum
Hydraulic Holddowns
Knive Clearance Adjustment
Ball Transfers in Bed
Two Speed Shearing with Build in Overload Protection
Inching Controls
All Steel Interlocked Construction
Full Length Dovetail in Bed Face
EQUIPPED WITH:
36" Front Operated Swing Away Power Back Gauge
Hydraulic Lift on Backgauge
Preset Levelling Buttons
Adjustable Ram Stiffener
Rod Type Knife & Holddown Guard
40 H.P. Main Drive Motor
Electrical Controls
Electric Foot Switch Operation
Weight, approx. 67,000 lbs.
Dimensions, approx. 216" L-R x 120" F-B x 136" H
