Reference Number: 139683

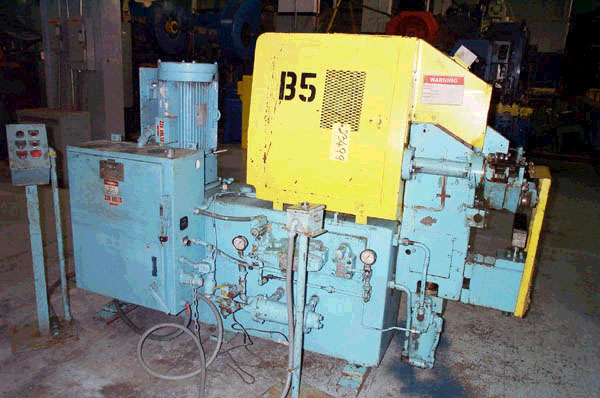

Price: $13,5001-1/4" PINES Hydraulic Rotary Pipe Bender
No. 5T New 1978
Capacity 5 Tons,
Non-Ferrous Tubing Y.P. to 25,000 PSI: (2) 1" O.D. x .072"Wall,
Mild Steel Tubing Y.P. to 40,000 PSI: (2) 1" O.D. x .065" Wall,
Stainless Steel Tubing Y.P. to 60,000 PSI: (2) 1" O.D. x .049"Wall,
Steel Pipe Schedule 80: (2) 3/8",
Square Tube (Mild Steel): (2)7/8" x .035",
Round Bar (Mild Steel): (2) 5/8",
Square Bar (Mild Steel): (2) 1/2",
Tube Size Range Up to 1-1/4" or (2) @ 1",
Centerline Radius Range: (Permitting Bending to Maximum Angle)
3-1/2" Maximum C.L.R., 2" - 3" Minimum Work Diameter,
Bend Angle: 140 Degrees Maximum, 165 Degrees with SpecialTooling,
Operating Pressure 2,000 PSI,
Production Speed 2,000 Bends Per Hour,
Variable Ram Speed Control,
Heavy Cast Steel C-Frame Type Construction,
Two Bends Per Stroke,
EQUIPPED WITH:
Digital Dial-A-Bend,
20 H.P. Main Drive Motor,
Electrical Controls,
Pedestal Mounted Push Button Operation,
Bijur Automatic Lubrication System,
Hydraulic Oil Cooler,
Weight, Approx. 3,000 Lbs.,
Dimensions, Approx. 64" L-R x 87" F-B x 60" H<
