Reference Number: 139686

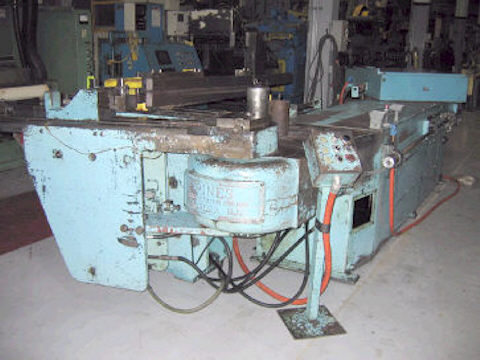

Price: $59,5004"PINES Hydraulic Rotary Tube Bender
No. 4 New 1978
Maximum Bend Radius: 30",
Average Maximum Bending Arm Speed: 1.5 RPM (Forward),
5.5 RPM (Reverse),
Standard Operating Pressure: 2,000 PSI,
Maximum Bend Angle: 180 Degrees (+ Overbend for Springback),
Counter Clockwise Bending Rotation,
EQUIPPED WITH:
Hydraulic Bending Speed Control Valve,
Clamp & Pressure Die Holders,
20 HP AC Main (Pump) Drive Motor; Electrical Controls,
Swinging Arm Safety Device; Multiple PB Operation (PedestalMtd.),
BENDING CAPACITIES:
I.P.S. Extra Heavy Pipe: 4",
Non-Ferrous Tubing Y.P. to 12,000 PSI: 6" O.D. x .300" Wall,
Non-Ferrous Tubing Y.P. to 25,000 PSI: 6" O.D. x .250" Wall,
Steel Tubing Y.P. to 40,000 PSI: 6" O.D. x .165" Wall,
Stainless Steel Tubing Y.P. to 60,000 PSI: 4-1/2" O.D. x .250"Wall,
Weight, Approx. 13,000 Lbs.,
Dimensions, Approx. 200" L-R x 80" F-B x 60" H<
