Reference Number: 139688

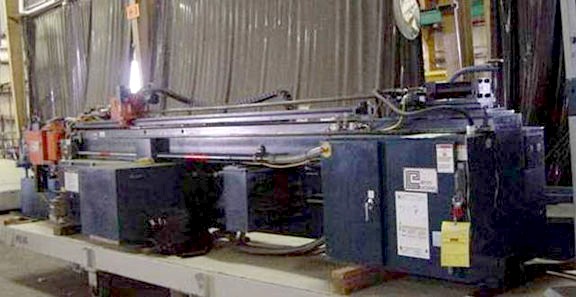

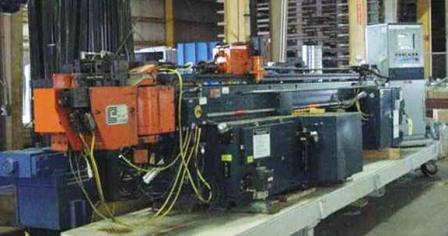

Price: $119,5003" EATON LEONARD Model VB300 HS CNC Tube Bender
New 1997
Maximum Tube Size (O.D. x Wall): 3" x .120",
Maximum Pipe Size (I.P.S. x Sch.): 2" Sch. 80,
Maximum Centerline Radius: 12",
Maximum Tube Length Over Mandrel: 12',
Maximum Bend Arm Travel: 195 Degrees,
Bend Arm Speed: 20 RPM,
Plane of Bend Speed: 50 RPM,
Carriage Travel Speed (IPM): 1700,
EQUIPPED WITH:

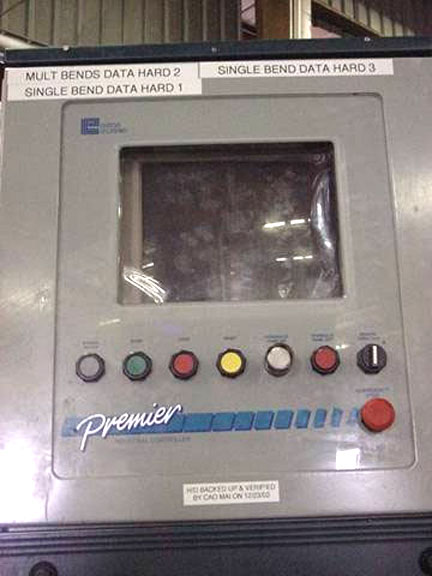

Premier Touch Screen CNC Control,
Programmable Pressure Die & Boost Settings,
Pneumatic Tube Support,
Pressure Die Assist,
Mandrel Bending Package,
Automatic Mandrel Lubrication,
4" Bore Bend Cylinder.
