Reference Number: 139689

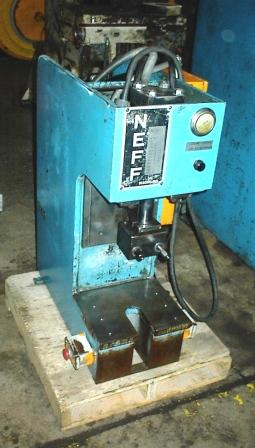

Price: On Request12Ton NEFF #D12-5M Hydraulic Trim Press
New 1985
Capacity: 12 Ton,
Stroke (Adjustable): 7" Max,
Cylinder Bore: 3.25",
Ram Diameter: 2",
Distance Ram Centerline to Frame (Throat): 7",
Daylight: 18",
Table Area: 14" L-R x 11" F-B,
Opening in Table: 2" L-R x 6" F-B,
Welded All Steel Frame,
Speeds: 235 IPM - Advance,
90 IPM - Press,
235 IPM - Return,
EQUIPPED WITH:
Dual Palm Button Operation,
5 H.P. Main Drive Motor,
Hydraulic Pump,
Complete Electrical Controls,
Hydraulic Pressure Gauge and Valve,
Non-Rotating Ram Guide,
Stroke Limit Collars,
Sight Type Oil Level Gauge,
Weight, Approx.: 1,750 Lbs.,
Dimensions, Approx.: 29" L x 36" D x 50" H,
New 1985.<
