Reference Number: 139691

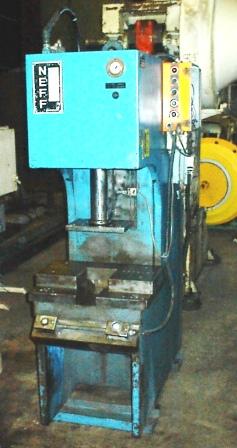

Price: On Request24Ton NEFF # DF24 Hydraulic Trim Press
New 1986
Capacity: 24 Ton,
Stroke (Adjustable): 10" Max,
Cylinder Bore: 5",
Ram Diameter: 3.5",
Distance Ram Centerline to Frame (Throat): 10",
Daylight: 24",
Welded All Steel Frame,
Speeds: 200 IPM - Advance,
94 IPM - Press,
200 IPM - Return,
EQUIPPED WITH:
Dual Palm Button Operation,
Main Drive Motor,
Hydraulic Pump,
Complete Electrical Controls,
Hydraulic Pressure Gauge and Valve,
Non-Rotating Ram Guide,
Stroke Limit Collars,
Sight Type Oil Level Gauge,
Factory Base,
Weight, Approx.: 6,000 Lbs.,
Dimensions, Approx.: 36" L x 58" D x 85" H
<
