Reference Number: 139693

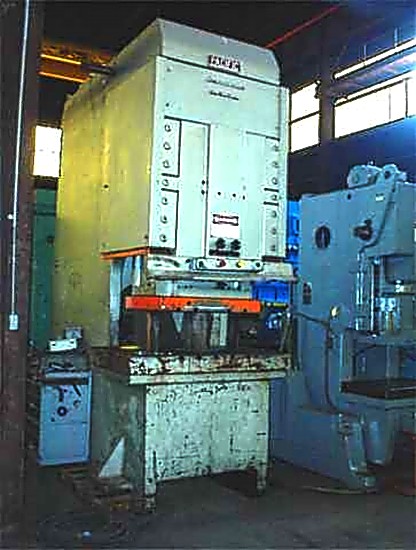

Price: $69,500250 Ton PACIFIC Hydraulic Press
#250PF 12" Stroke New 1984
Capacity 250 Ton,
Stroke 12" (Adjustable),
Open Height 21-3/4" Closed Height 9 3/4",
Bed Area 58" L-R x 34" F-B,
Slide Face Area 36" L-R x 28" F-B (T-Slotted),
Throat Depth 18",
Opening Thru Back 36",
Speeds 294 IPM - Rapid Advance,
126 IPM - Fast Press, 48 IPM Normal Press,
201 IPM - Fast Return, 77 IPM Slow Return,
Maximum PSI 2,400#,
Adjustable 8-Point Square-Type Gibbing,
Welded Steel Plate Construction,
EQUIPPED WITH:
Tonnage Control with Gauge,
T-Slotted Bolster Plate (5-1/2" Thick),
Hydraulic Knockout,
Hydraulic Overload Protection,
Automatic Decompression,
Stroke Control,
40 H.P. Main Drive Motor,
Electrical Controls,
Dual Palm Button Operation,
Weight, approx. 60,000#,
Dimensions, approx. 73" L-R x 115" F-B x 162" H
