Reference Number: 139696

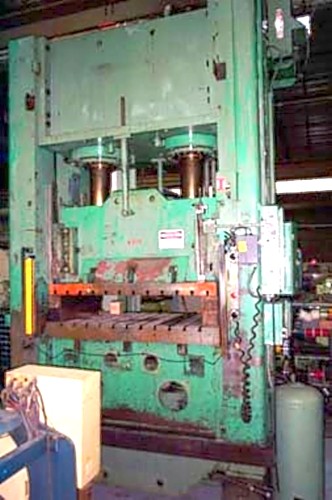

Price: $84,500500Ton PACIFIC Hydraulic Press
Model 500D6-42 18" Str, 36"DLO, 75" x 42"
New 1978
Capacity 500 Ton,
Stroke 18" Adjustable,
Open Height 36", Closed Height 18",
Bed Area 75" L-R x 42" F-B,
Bed Opening 68" L-R x 31" F-B
Slide Face Area 72" L-R x 42" F-B,
Window Opening 19-1/2" Wide x 38" High,
Speed: 413 IPM - Rapid Advance,
140 IPM - Fast Press,
48 IPM - Normal Press,
218 IPM - Fast Return,
78 IPM - Normal Return,
Distance Between the Housings 75",
Adjustable 8-Way Square Type Gibbing,
EQUIPPED WITH:
Dual Palm Button Operation,
Parallelism Adjustment,
Adjustable Stroke Setting,
Bolster Plate,
100 H.P. Main Drive Pump Motor,
Electrical Controls,
Automatic Centralized Lubrication System,
Tonnage Control,
Weight, Approx. 77,000 Lbs.,
Dimensions, Approx. 120" L-R x 60" F-B x 216" H<
