Reference Number: 139721

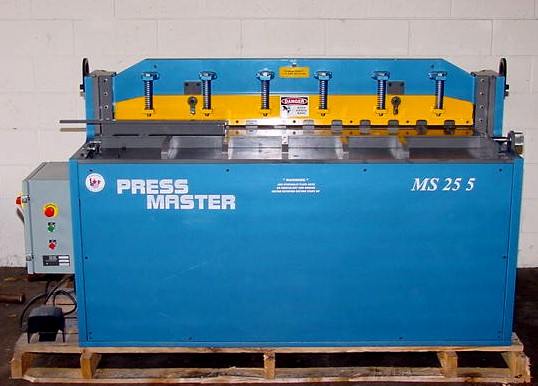

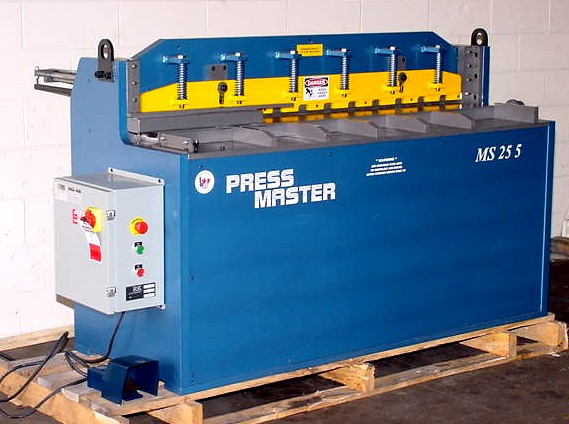

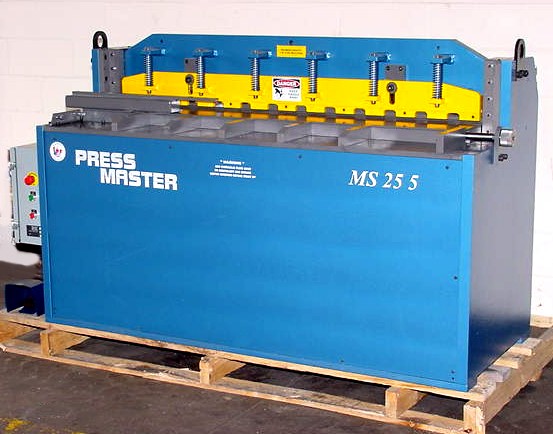

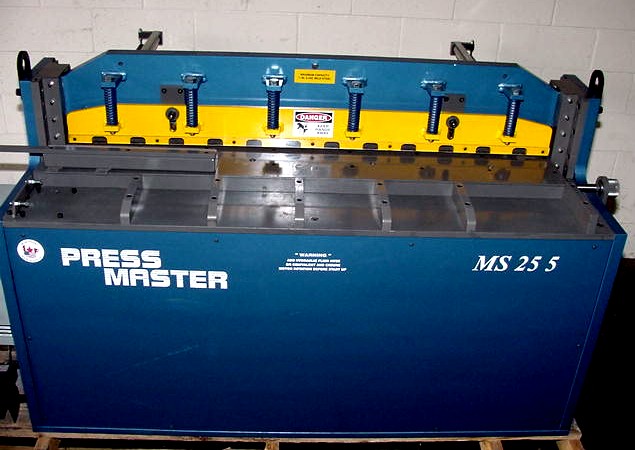

PRESSMASTER MODEL MS-25-5 HYDRAULIC SHEAR
 1/4" x 61" SHEAR
 BRAND NEW IN FACTORY CRATE

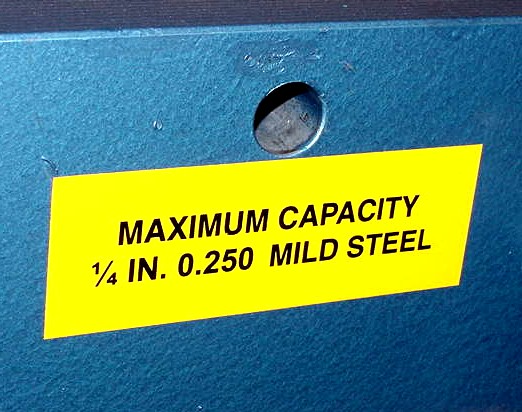

  CUTTING CAP. .............................. 1/4"
 CUTTING LENGTH ............................ 61"
 RAKE ANGLE ................................ 1.5" / 62"
 SPM ....................................... 20
 NUMBER OF HOLDDOWN CYLINDERS .............. 10
 MOTOR ..................................... 10 HP 1760 RPM
 VOLTAGES AVAILABLE ........................ 230/460/575
                                             3 PH/60 HZ
 TABLE DEPTH ............................... 18"
 TABLE WORK HEIGHT ......................... 34"
 FOOTPRINT ................................. 72" LONG
                                             28" WIDE
 WEIGHT .................................... 4,000 LBS.

 STANDARD FEATURES:
 - EQUIPPED WITH FULLY INTEGRATED HYDRAULIC UNIT, LOW WORKING
 PRESSURE.
 - ELECTRIC SOLENOID HYDRAULIC VALVING FOR INSTANTANEOUS
 RESPONSE.
 - CLEAN HYDRAULIC OIL IS ASSURED BY A RENEWABLE CARTRIDGE
 TYPE FILTER IN THE RETURN LINES.

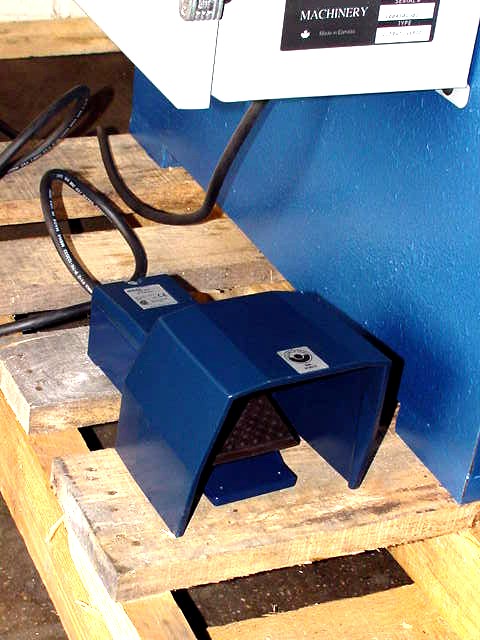

 - REMOTE FOOT PEDAL CONTROL, IF RELEASED ANYWHERE IN THE
 STROKE THE BLADE RETURNS TO THE "UP" POSITION.
 - LOW PROFILE DESIGN, UNDER-DRIVEN. TWO DOUBLE ACTING
 CYLINDERS WORKING UNIFORMLY.
 - BLADES MADE FROM D2 HIGH CARBON PREMIUM QUALITY TOOL
 STEEL.
 - THE BOTTOM BLADE CAN BE USED ON ALL 4 SIDES.
 - THE TOP BLADE HAS REVERSIBLE CUTTING EDGES WITH 5 DEGREE
 BACK BEVEL TO ENSURE A CLEAN CUT.
 - LOW RAKE ANGLE TO MINIMIZE WORKPIECE DISTORTION.

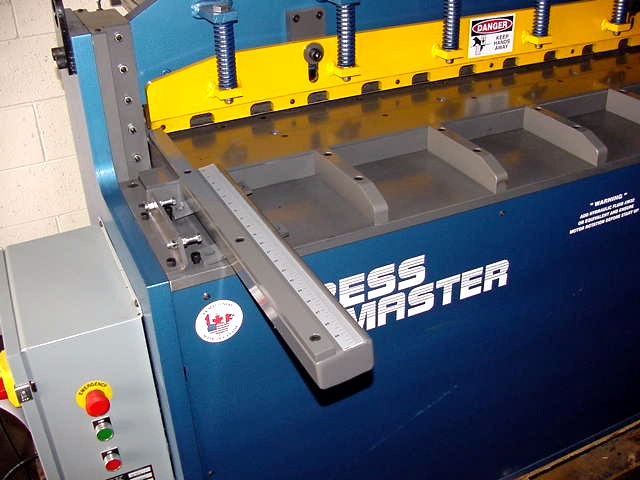

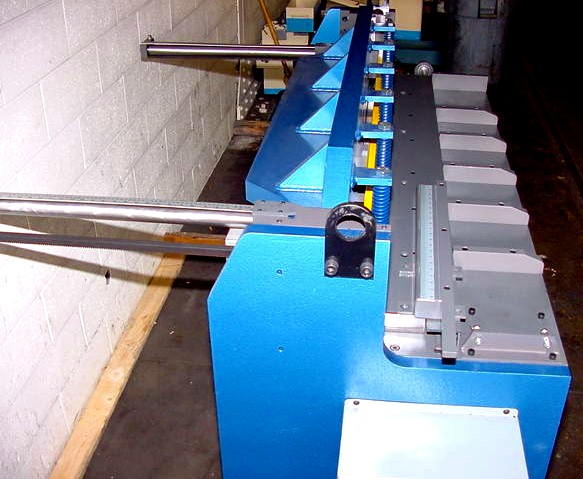

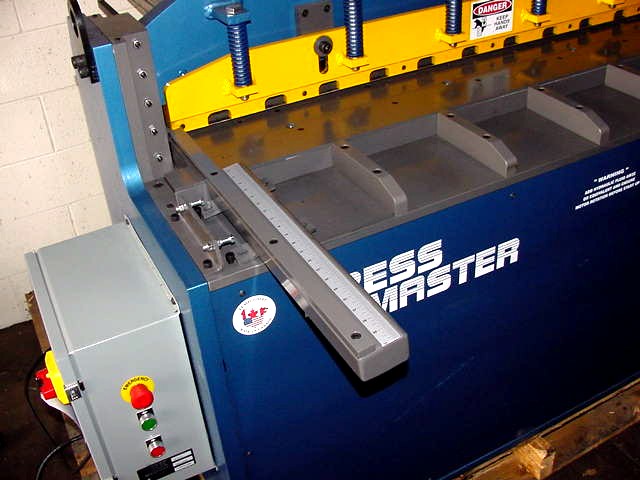

 - SQUARING ARM COMPLETE WITH MEASUREMENT INDICATOR.
 - FOR EASY HANDLING OF MATERIAL THE 5 SUPPORT ARMS ARE
 ROUNDED, THIS ALSO PREVENTS MARRING MATERIAL WHILE LOADING.

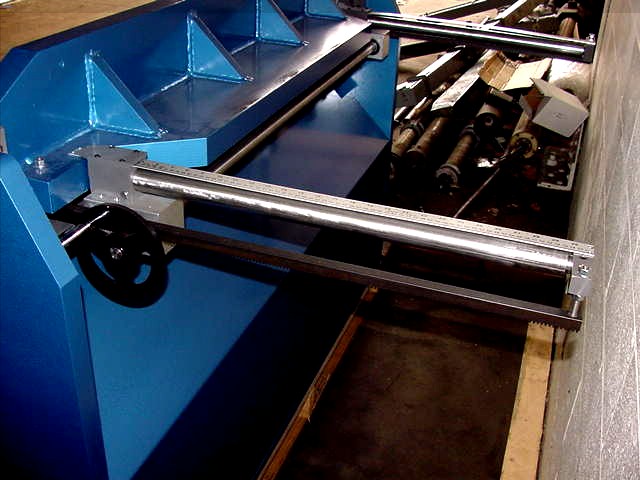

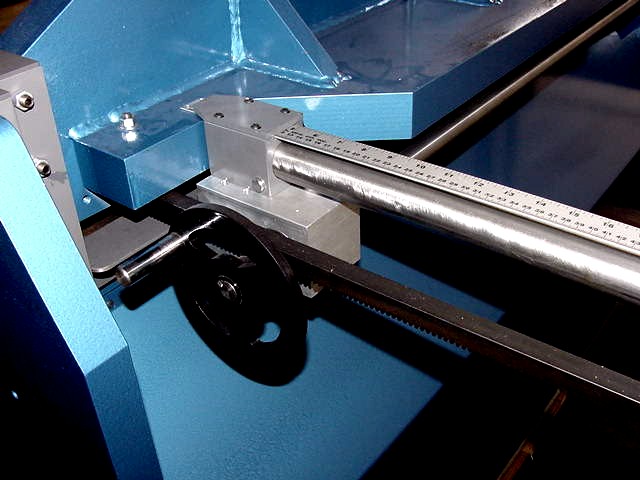

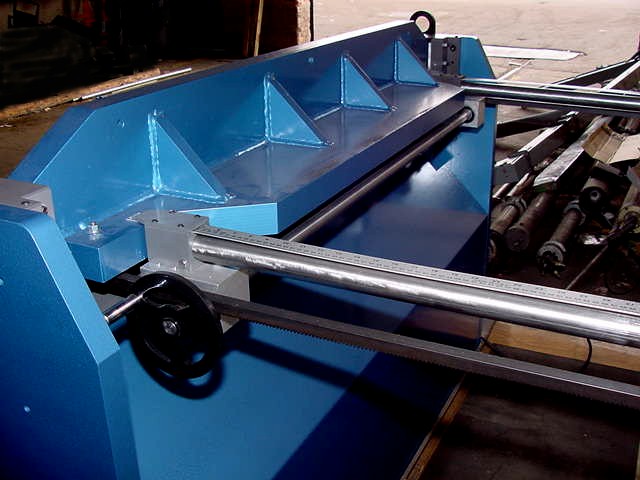

 - RACK & PINION, PARALLEL DRIVEN MANUAL 24" TRAVEL
 BACK GAUGE FOR FAST SETUPS AND HIGH ACCURACY.
 - LOW SPEED BALDOR ELECTRIC MOTOR.

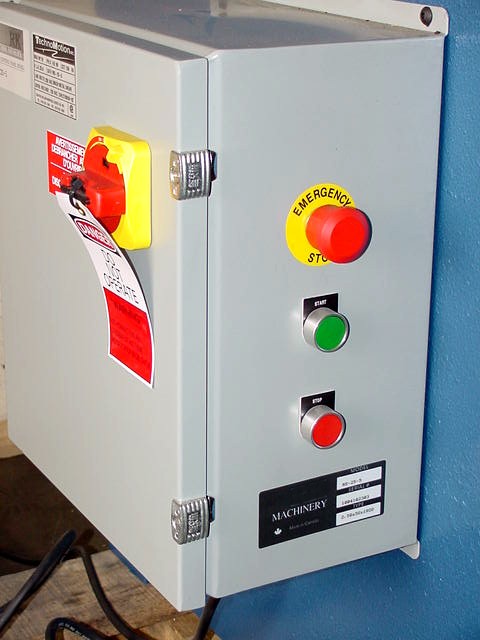

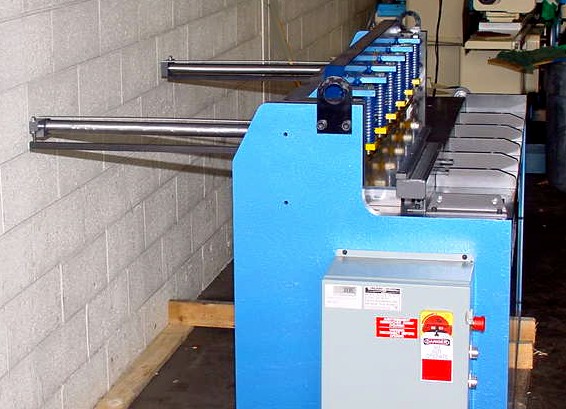

 - FULLY ENCLOSED CONTROL PANEL COMPLETE WITH LOW VOLTAGE
 CONTROLS.
 - THE FRAME IS MADE FROM A SOLID STEEL WELDED CONSTRUCTION,
 GIVING MAXIMUM RIGIDITY.
 - ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE
 INDUSTRY, MADE IN THE USA OR CANADA, AND READILY AVAILABLE
 ALMOST ANYWHERE.

 AVAILABLE AT EXTRA COST OPTIONS:
 - A MOTORIZED FRONT OPERATED BACK GAUGE, WITH DIGITAL
  READOUT AND FINE HANDWHEEL ADJUSTMENT.  THIS DIGITAL
  READOUT FEATURES FRACTIONS OR DECIMALS AND AN
  INCH/METRIC SWITCHABLE DISPLAY......$5,000.00
