Reference Number: 139800

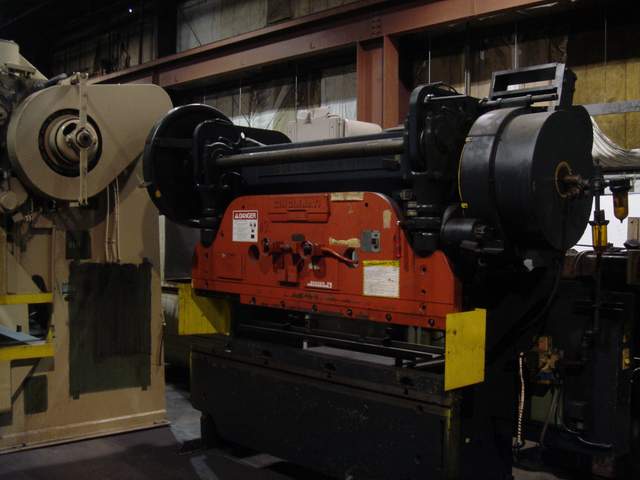

Price: $12,500CINCINNATI 135 TON X 8' MECH PRESS BRAKE CAPACITY .................................... 135 @ BOTTOM
Model 5 New 1967
90 @ MIDDLE
LENGTH OF BED & RAM .................................. 8'
DISTANCE BETWEEN HOUSING ............................. 6' 6"
STROKE ............................................... 3"
DIE SPACE ............................................ 7"
RAM ADJ. (POWERED) ................................... 5"
THROAT DEPTH ......................................... 8.25"
DISTANCE BED TO FLOOR ................................ 32"
STROKES PER MINUTE ................................... 35
WEIGHT .......................................... 13,400 LBS
OVERALL DIMENSIONS.................... 9' H X 129" L X 74" W
Equipped with:
- AIR CLUTCH
- PALM BUTTONS
- LINK 140C CONTROLS
- MILLED FOR ANGLES
