Reference Number: 139801

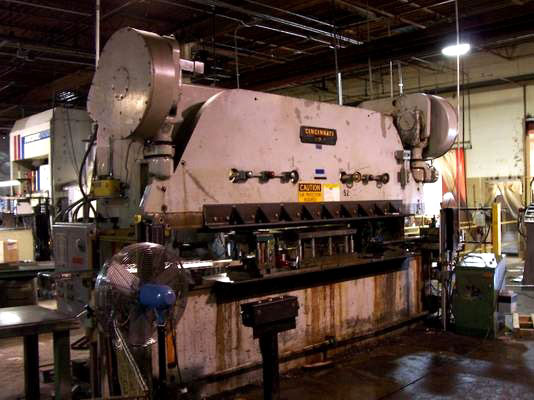

Price: $19,500CINCINNATI 175 X 14' FLANGED PRESS BRAKE CAPACITY............................... 175 TON NEAR BOTTOM
Model 7 X 12 Year 1962
115 @ MID STROKE
LENGTH OF BED & RAM................................. 168"
DISTANCE BETWEEN HOUSING............................ 150"
STROKE.............................................. 3"
SHUT HEIGHT......................................... 16"
RAM ADJUSTMENT...................................... 5"
THROAT DEPTH........................................ 8"
DISTANCE BED TO FLOOR............................... 40 1/2"
SPEED............................................... 30 SPM
OVERALL DIMENSIONS.............. 212" R-L x 84" F-B x 130"
APPROX.WEIGHT.................................... 40,000 LBS
OPEN HEIGHT ........................................ 19"
Equipped with:
- AIR ACTUATED MECH. CLUTCH
- LINK 501 CONTROLS
- LINKS BLACKMAX LIGHT CURTAINS
