Reference Number: 139812

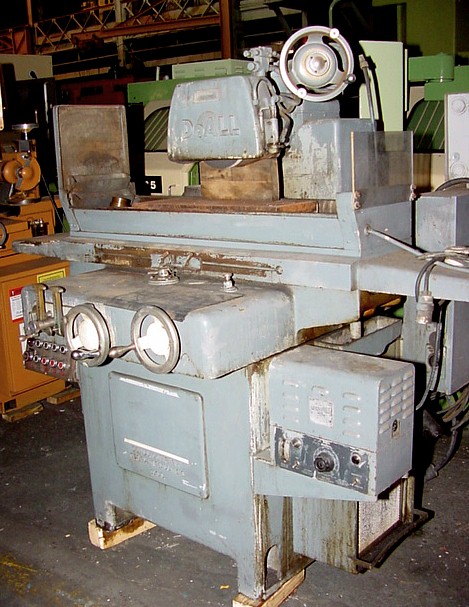

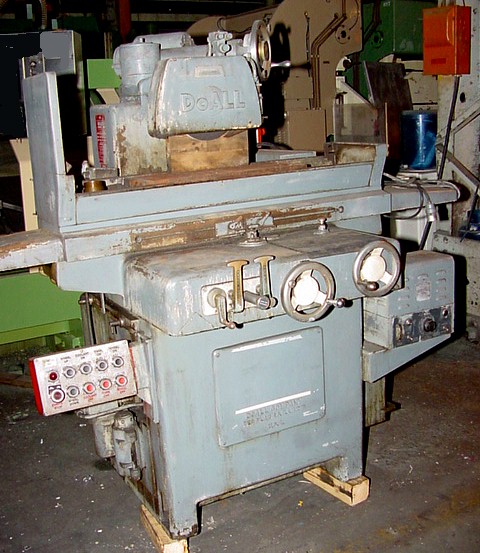

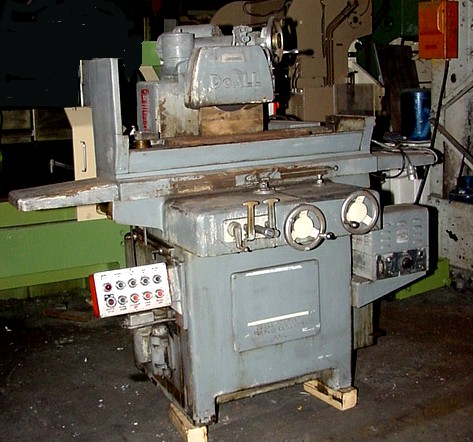

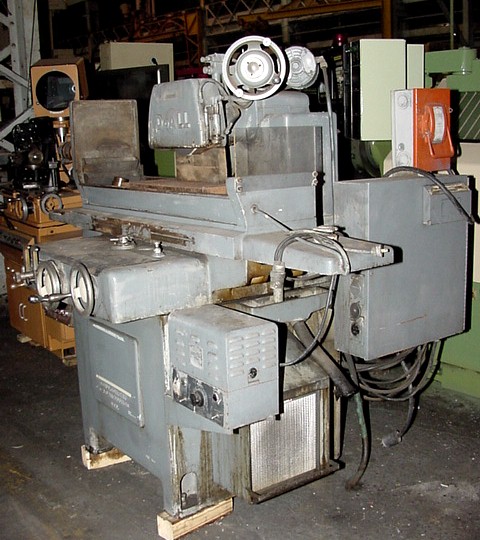

10" X 30" DOALL HYDRAULIC FEED SURFACE GRINDERPrice: On Request
**** QUALITY USA BUILT MACHINE ****

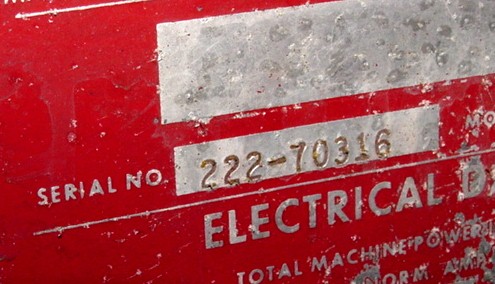

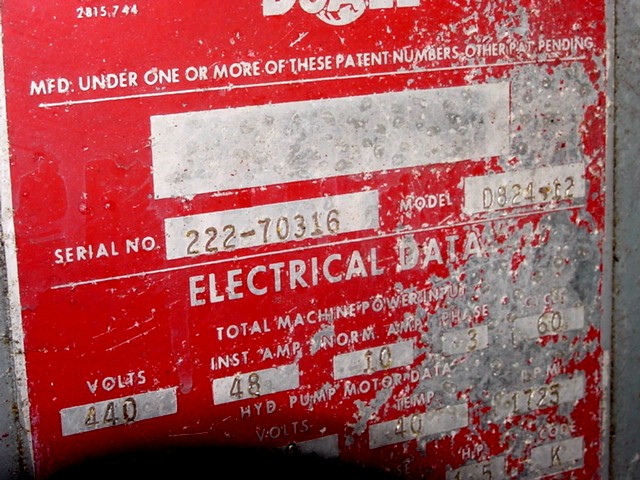

MODEL: D824-12 S/N: 222-70316 NEW: 1970
CHUCK SIZE................................... 8" X 24"
TABLE TRAVEL....................................... 28"
SADDLE TRAVEL...................................... 10"
DOWNFEED, TOTAL TRAVEL.......................... .. 15"
LONGITUDINAL TABLE SPEED.................. 5-125 F.P.M.
AUTO CROSS FEED(INCREMENTS).............. 0-.250 I.P.M.
AUTO DRESSING FEED........................ 0-150 I.P.M.
HAND CROSS FEED,DIAL GRAD. IN INCREMENTS OF .... .0002"
VERTICAL FEED, DIAL GRAD. IN INCREMENTS OF ..... .0001"
SPINDLE SPEED................................ 2000 RPM
GRINDING WHEEL SIZE... 12" DIAMETER X 1" WIDE X 3" BORE
APPROX. MACHINE WEIGHT ..................... 4,500 LBS.
EQUIPPED WITH:
TWO AXIS HYDRAULIC OPERATION
POWER RAPID WHEELHEAD POSITIONING
DIGITAL READOUT DISPLAY FOR WHEELHEAD POSITION

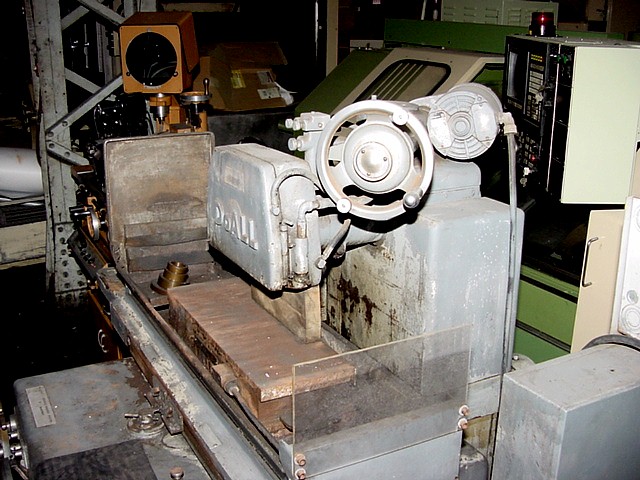

8" X 24" FINE DIVISION ELECTROMAGNETIC CHUCK
WITH VARIABLE HOLD NEUTRFIER CONTROL
COOLANT SYSTEM & GUARDING
SUPER PRECISION, CARTRIDGE-TYPE V-BELT SPINDLE
MOTORIZED POWER RAPID TRAVERSE TO GRINDING WHEELHEAD
BIJUR LUBRICATION SYSTEM
(1) WHEEL MOUNT

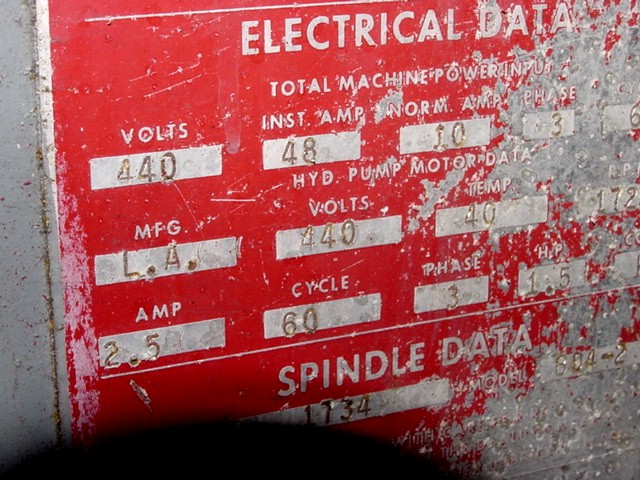

1/4 H.P. 3/60/230-460 VOLT WHEELHEAD RAPID TRAVERSE MOTOR
1-1/2 H.P. 3/60/220-440 HYDRAULIC PUMP MOTOR
5 H.P. 3/60/220-440 VOLT 1740 RPM SPINDLE DRIVE MOTOR

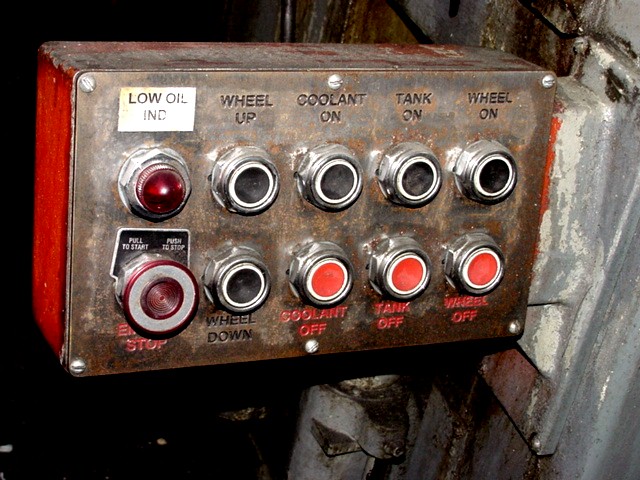

AND ELECTRICAL CONTROLS
MACHINE IS WIRED FOR 220 VOLT OPERATION
* EXCELLENT CONDITION & APPEARANCE *
* INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE *
