Reference Number: 139896

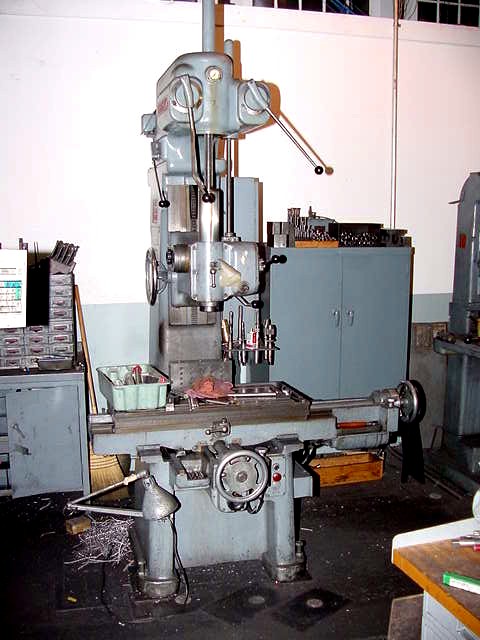

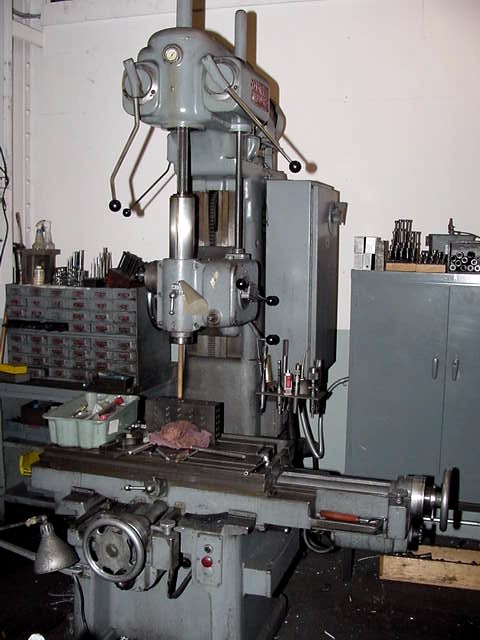

CLEERMAN LAYOUT DRILLING MACHINE
S/N: EB218 YEAR: 1956
SPECIFICATIONS:
TABLE SIZE .............................. 18" x 36"
LONGITUDINAL TABLE TRAVEL ............... 30"
CROSS TABLE TRAVEL ...................... 15"
DIA. OF SPINDLE ......................... 3-7/8"
SPINDLE TAPER ........................... #4 MORSE
TRAVEL OF SPINDLE ....................... 15"
SPINDLE SPEEDS .......................... 50 - 1000 RPM
FEEDS ................................... .0023 .023 IPR
FACE OF COLUMN TO CENTER OF SPINDLE ..... 14"
MAX. DISTANCE SPINDLE TO TABLE .......... 25
APPROXIMATE WEIGHT ...................... 5,500 LBS
APPROX HEIGHT ........................... 8'4"
EQUIPPED WITH:
POWERFEED TO SPINDLE
QUICK SWITCH SPINDLE
LOTS OF #4 MORSE TAPER TOOLING
5 HORSE POWER MAIN MOTOR
Price: $3,500
