Reference Number: 139907

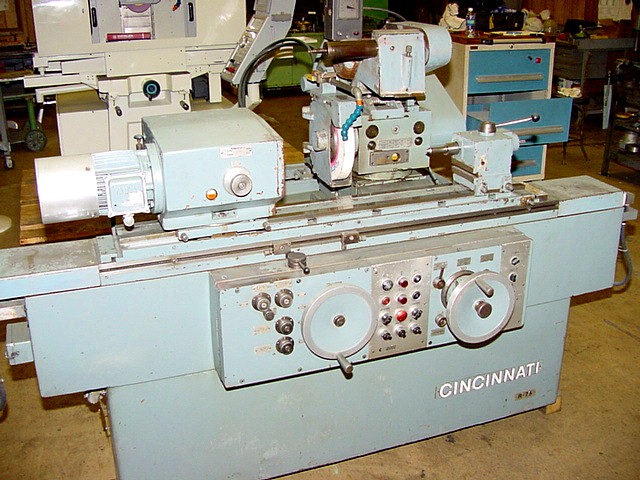

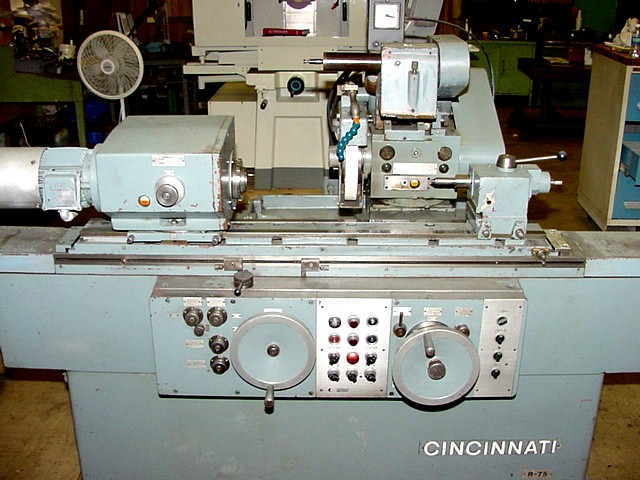

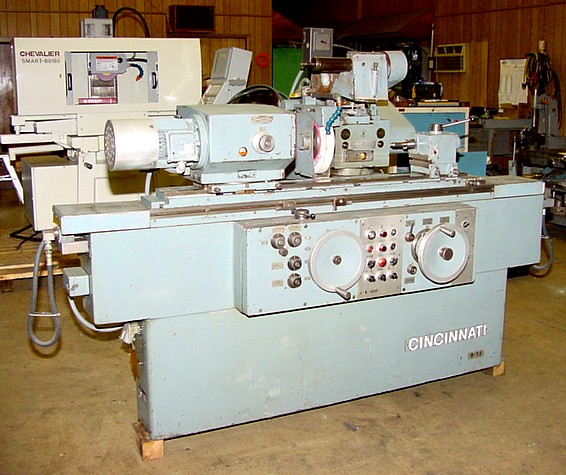

10" x 31" CINCINNATI-MILACRON UNIVERSAL I.D./O.D.
 CYLINDRICAL GRINDER

  MODEL: R-75     S/N: M27295    NEW: 1975

  SPECIFICATIONS:
 SWING OVER TABLE........................... 10"
 DISTANCE BETWEEN CENTERS................... 31"

  TABLE
 -MAXIMUM TABLE TRAVEL .................... 31"
 -INFINITELY VARIABLE TRAVERSE SPEEDS ..... 2" - 240"
 -TABLE TRAVERSE PER REV. OF HANDWHEEL .... 0.1" & 0.5"
 -INFINITELY VARIABLE TABLE TARRY.......... 0 TO 6 SEC.
 -MAXIMUM SWIVEL OF TABLE (+/-)............ 10 DEG.

  HEADSTOCK
 -INF. VARIABLE SPINDLE SPEEDS............. 60 TO 480 RPM
 -SWIVEL RANGE............................. 0-90 DEGREES
 -DIAMETER OF BORE IN SPINDLE ............. 1.4"
 -CENTER TAPER IN SPINDLE ................. #13 JARNO
 -MACHINE CENTER (USED W/ADAPTER) ......... #8 JARNO

  WHEELHEAD
 -RAPID ADVANCE STROKE..................... 2"
 -MANUAL INFEED ONE REV. OF HANDWHEEL
 (ON DIA.)............................... 0.050"
 -AUTO PICKFEED ON DIA. IN (8) STEPS .. 0.0002" - .0016"
 -AUTO INFEED (ON DEMAND) MAX. STOCK
 REOVAL ON DIAMETER .................... 0.079"
 -HAND LEVER PICKFEED ON DIAMETER ........ 0.0001"
 -SWIVEL (UPPER & LOWER) ................. +/- 90 DEGREES
 -GRINDING WHEELHEAD SIZE ................ 12" DIA.
 1.5" WIDTH
 5" BORE
 -WHEEL SPEED ............................ 6,500 SFM

  APPROXIMATE MACHINE WEIGHT .............. 5,302 LBS.
 APPROX. DIMENSIONS ...................... 81" X 72 X 57"H

  EQUIPPED WITH:
 SWING DOWN I.D. ATTACHMENT W/(1) SPINDLE
 DOUBLE SWIVEL WHEELHEAD DESIGN
 DUAL LIVE/DEAD WORKHEAD SPINDLE
 4 H.P. 3/60/230-460 VOLT WHEELHEAD MOTOR

 HYDRAULIC OPERATION FEATURING:
 POWER TABLE TRAVERSE
 AUTO INFEED
 AUTO PLUNGE INFEED (DUAL COARSE & FINE FEED)
 RAPID WHEELHEAD ADVANCE & RETRACTION
 SPARKOUT TIMER


 ** EXCELLENT APPEARANCE & CONDITION **
 ** INSPECT UNDER POWER IN OUR HARRISON, NJ  **
