Reference Number: 139927

   HURRICANE PANEL MANUFACTURING EQUIPMENT

 A Complete Line of Equipment and Engineering for the
 Manufacturing of Florida State Building Code (FBC) Approved .050
 Aluminum Mill Finish Storm (Full and/or Half) Panels. Approval
 number FL#5075 is for High Velocity Hurricane Zone (HVHZ
 installations. Approval number FL# 6637 is for Zero Separation
 Installations. The panels have a 2" profile, with a 14 ½" width.
 Punched holes are double keyway 6" on center.

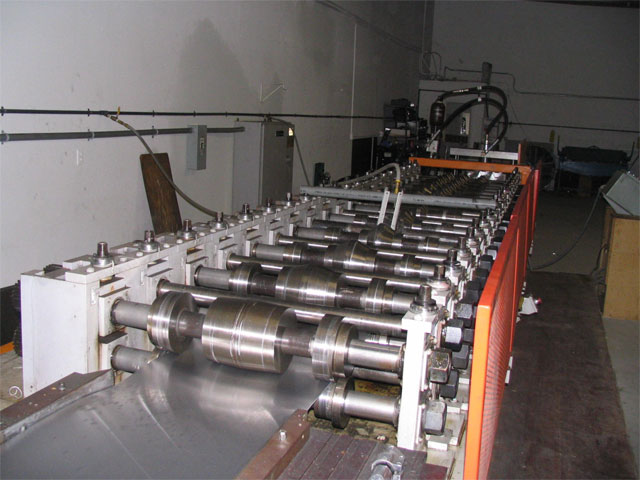

 DAHLSTROM Roll Forming Line. Model # 450-20-08, 20-2 ¼-32,
 Serial # 1202
 Line Speed variable 25 to100 ft/minute. (1200 60" panels/hour)

 COOPER WEYMOUTH 5,000 lb Dual Spindle Decoiler
 Holds two 2,500 lb coils for minimum change over time between
 coils. While Roll Former is supplied by one side the other side is
 loaded

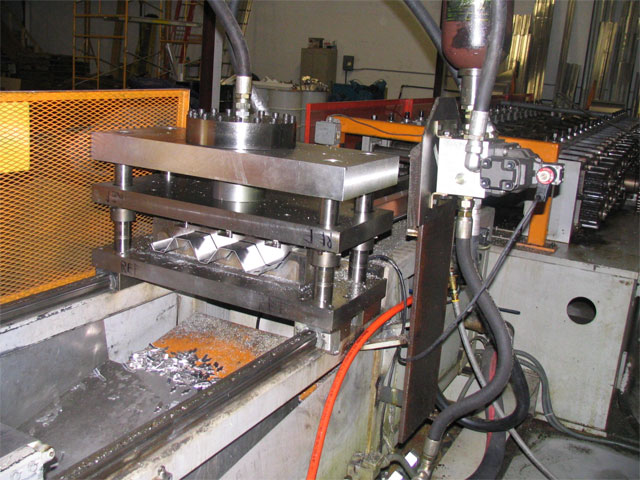

 FLYING HYDRAULIC CUTOFF by Form Process Engineering
 Allows panels to be cut to size and punched without the Roll Former
 stopping or even slowing down

 JAN TEC 15' Variable Speed Conveyor
 Takes finished Panels away from the Roll Former.

 AMS MP 300 Control Console Model MP350
 Controls length and number of panels cut. Programs up to ninety nine
 continuous jobs without interruption.

 Also included is transferable Florida Building Code Engineering for
 Standard and Zero Separation installation applications.
