Reference Number: 139930

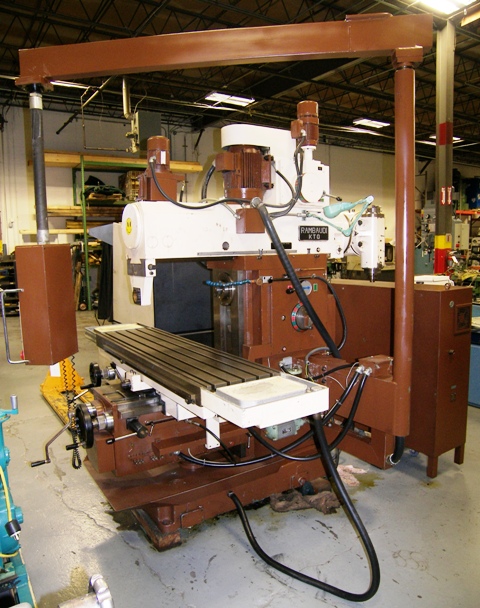

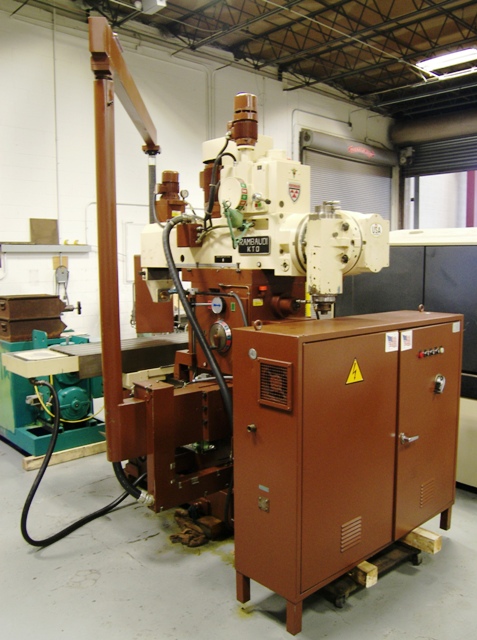

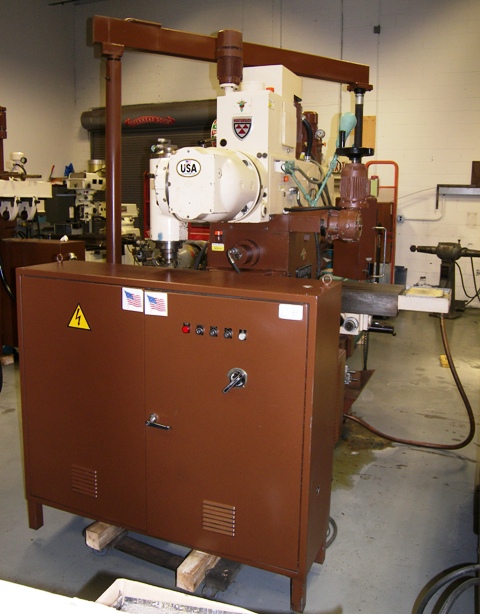

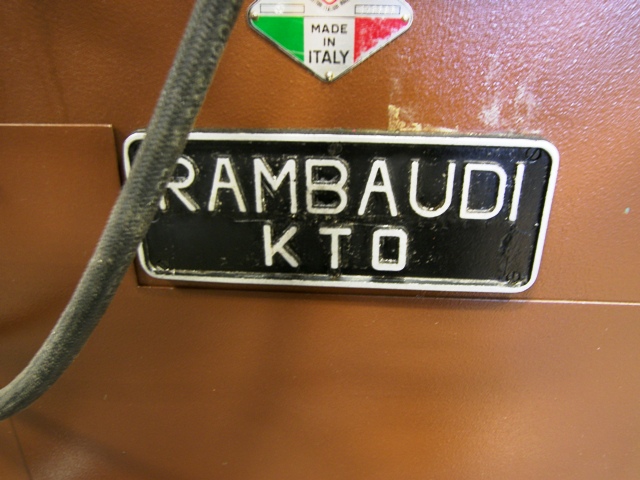

RAMBAUDI COMBINATION RAM-TYPE HORIZONTAL MILL
 WITH INDEPENDENT MOTORIZED
 & DOUBLE SWIVEL VERTICAL HEAD,
 MODEL KTO, S/N: K480 (143696),
 NEW APPROXIMATELY: 1987
 SPECIFICATIONS:

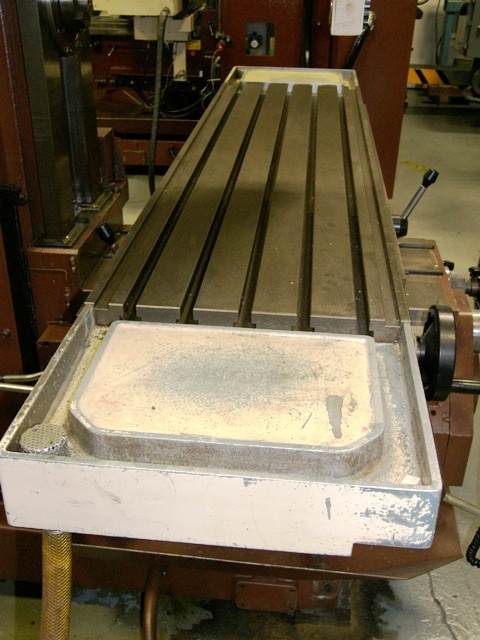

 TABLE:

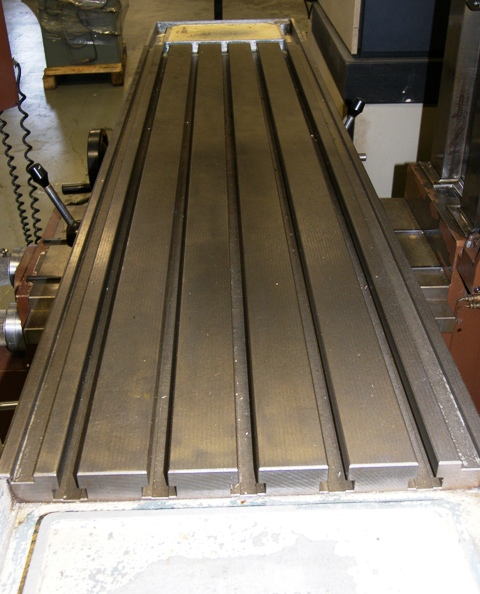

 WORKING SURFACE OF TABLE ................. 17-3/4" X 63"
 NUMBER OF TABLE T-SLOTS (WIDTH) .......... 5 (11/16")
 RANGE: LONGITUDINAL ...................... 47"
 CROSS .................................... 15-3/8"
 VERTICAL (KNEE) .......................... 16-1/2"
 MAXIMUM TABLE LOAD ....................... 2,200 LBS.
 FEEDS:
     LONGITUDINAL AND CROSS ............. .2 TO 78.75 IPM
     VERTICAL ........................... .12 TO 39-3/8 IPM
 RAPID TRAVERSE RATE:
     LONGITUDINAL AND CROSS ............. 78-3/4 IPM
     VERTICAL (KNEE) .................... 39-3/8 IPM

 HORIZONTAL SPINDLE:
 SPINDLE TAPER ............................ ISO 50
 FRONT BEARING DIAMETER ................... 5"
 MAXIMUM DIAMETER OF CUTTER ............... 12"
 MAXIMUM/MINIMUM DISTANCE, SPINDLE CENTER
     TO TOP OF TABLE .................... 16"/0"
 SPINDLE SPEEDS (18) ...................... 25-1,900 RPM
 SPINDLE MOTOR ............................ 20-2,000 RPM
 DOUBLE SWIVEL VERTICAL MILLING ATTACHMENT: 20-2,000 RPM
 SPINDLE TAPER ............................ ISO 50
 FRONT BEARING DIAMETER ................... 5"
 MAXIMUM/MINIMUM DISTANCE, FACE OF SPINDLE
     TO TABLE ........................... 19-11/16" TO 3-1/8"
 SPINDLE SPEEDS (18) ...................... 11 KW SPINDLE MOTOR
 APPROX WEIGHT ............................ 8,000 LBS
 APPROX DIMENSIONS ........................ 89"x105"x110-1/2"

 EQUIPPED WITH:

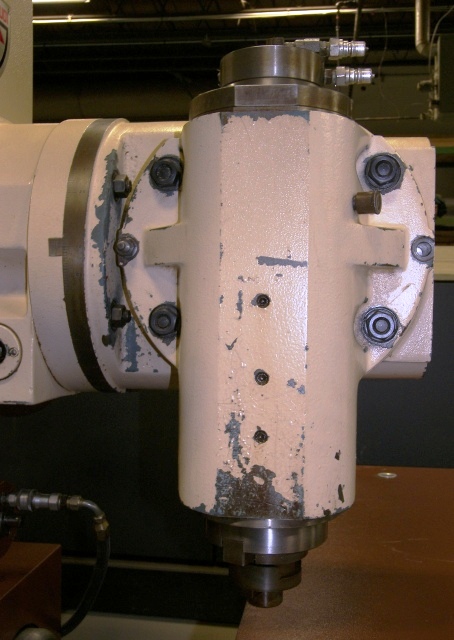

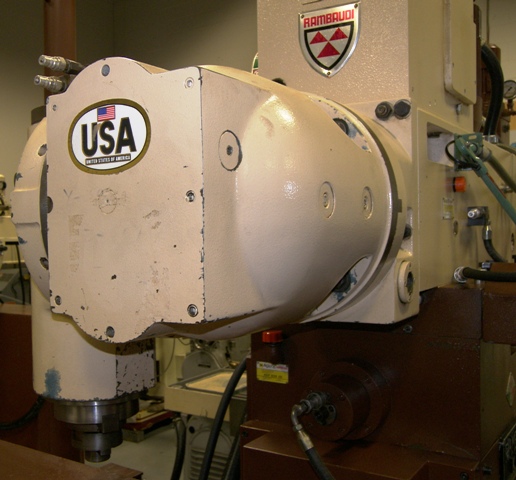

 - DOUBLE SWIVEL VERTICAL MILLING ATTACHMENT (FIXED SPINDLE)
 WITH INDEPENDENT MOTOR DRIVE

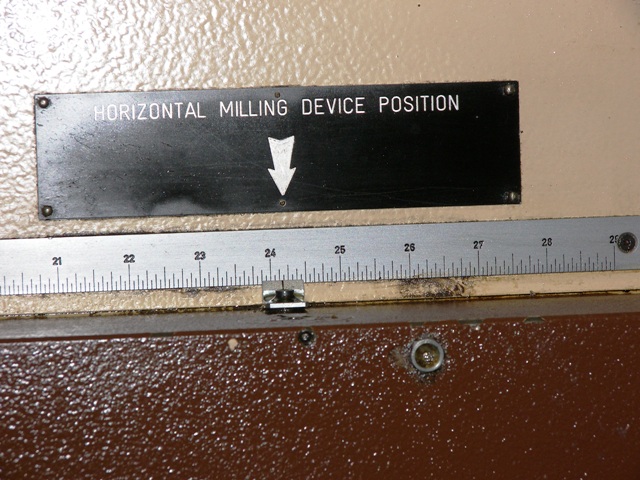

 - 180 DEGREE SWIVEL OF OVERARM FOR SELECTION OF VERTICAL OR
 HORIZONTAL MODE OF OPERATION

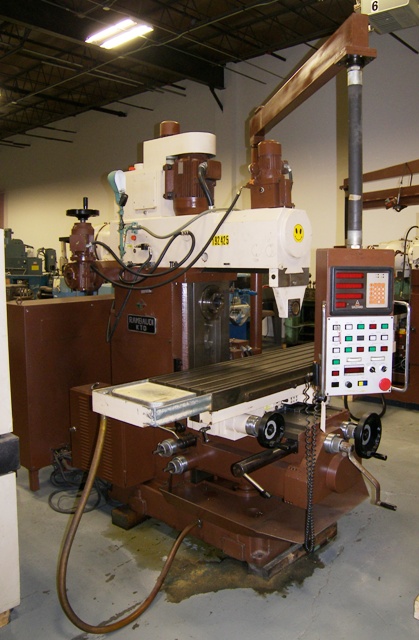

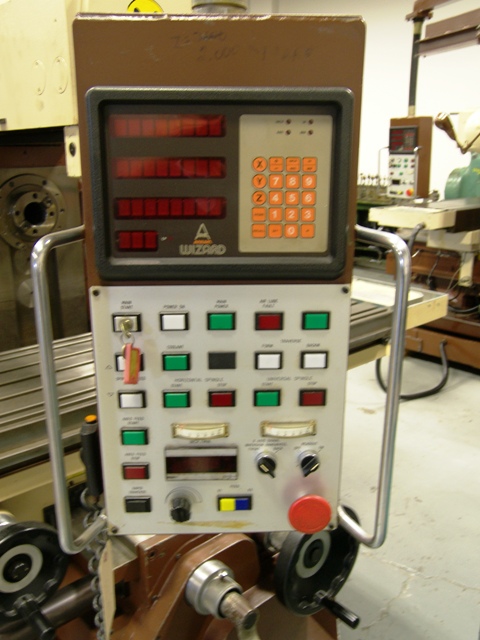

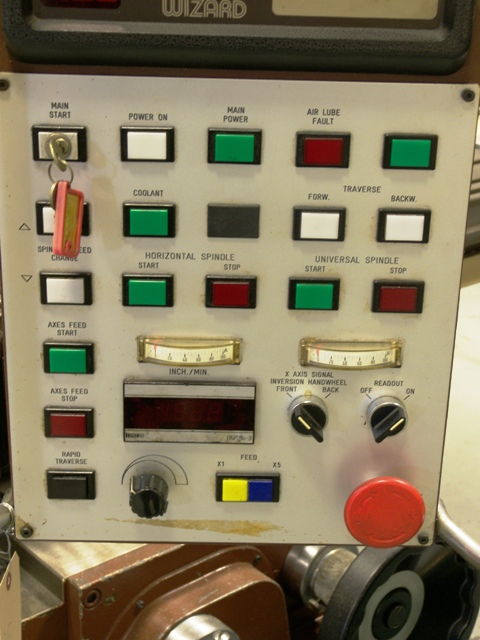

 - FULL PENDANT CONTROL WITH ANILAM WIZARD THREE-AXIS DIGITAL
 DISPLAY OF AXIS TRAVEL AND A SEPARATE DISPLAY FOR AXIS FEED
 RATE IN TWO FEED RANGES WITH FINITE ADJUSTMENT THROUGHOUT
 THE FEED RANGE.  CONTROL ALSO INCLUDES ELECTRICALLY ACTUATED
 SWITCHES FOR SPINDLE(S) SPEED, SPINDLE(S) START/STOP, RAM
 TRAVEL FORWARD/BACK, RAPID TRAVERSE,   COOLANT, AS WELL AS
 DUAL MOTOR LOAD METERS.
 - MOTORIZED OR MANUALLY OPERATED POSITIONING OF OVERARM
 FORWARD AND BACK (29" TRAVEL)

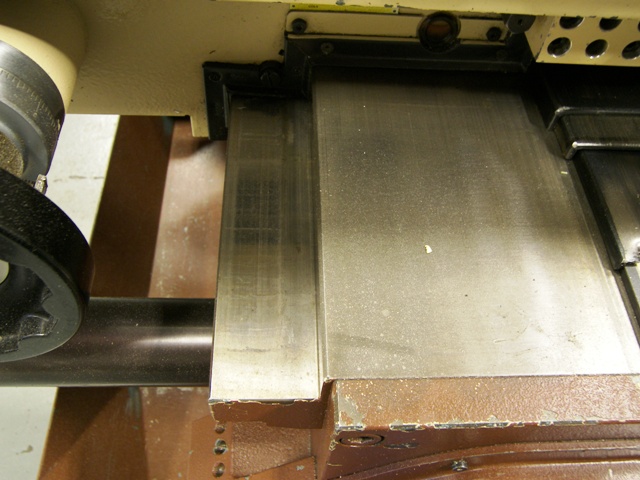

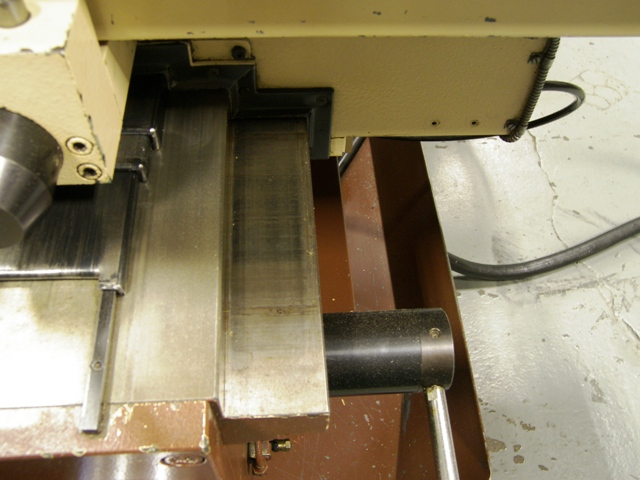

 - HARDENED AND GROUND SQUARE WAYS ON KNEE
 - HYDRAULICALLY ACTUATED POWER DRAWBOLTS FOR BOTH HORIZONTAL
 AND VERTICAL SPINDLES
 - (1) ARBOR SUPPORT

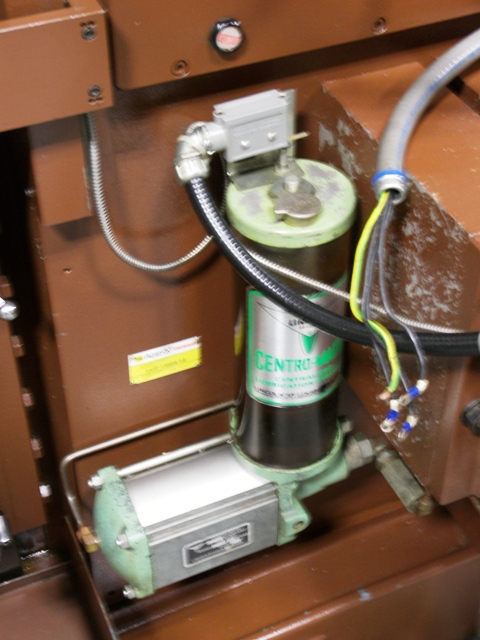

 - CENTRO-MATIC CENTRALIZED AUTOMATIC LUBRICATION SYSTEM

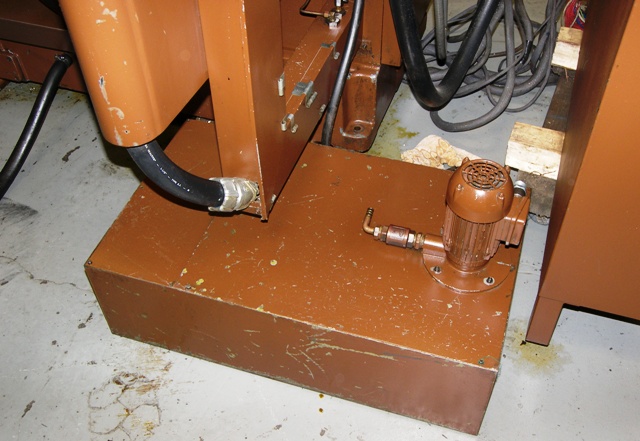

 - EXTERNAL COOLANT PUMP AND TANK
 - 11KW (14.75 H.P.) HORIZONTAL SPINDLE MOTOR
 - 11KW (14.75 H.P.) VERTICAL SPINDLE MOTOR

 MACHINE IS WIRED FOR 230 VOLT OPERATION.
