Reference Number: 139998

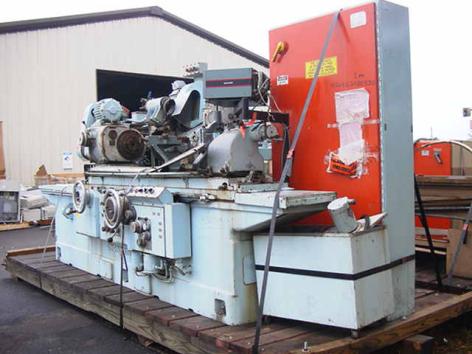

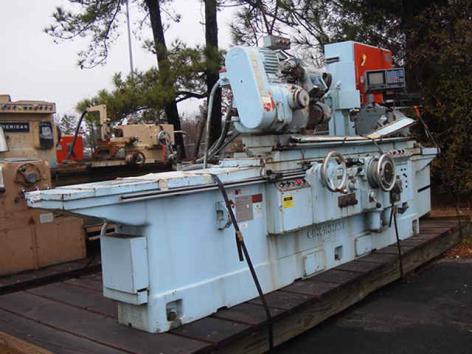

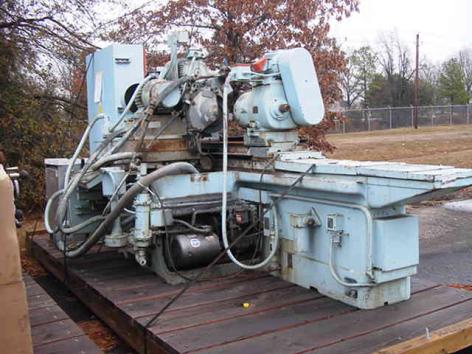

 18" X 48" CINCINNATI UNIVERSAL CYLINDRICAL GRINDER
 W/SWING DOWN I.D. GRINDING ATTACHMENT W/SPINDLE

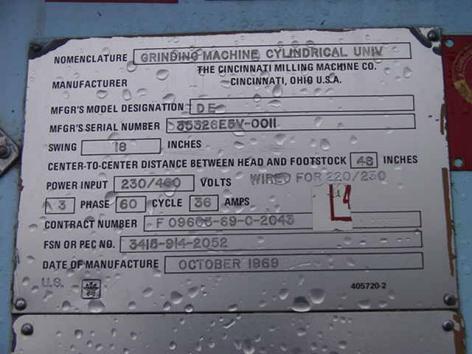

 MODEL: DE     S/N: 35326E5Y-0011    NEW: 1969

 SPECIAL NOTE:
 ORIGINAL AQUISITION COST BY U.S. GOV'T IN 1969 WAS $85,682

  SWING OVER TABLE ............................ 18-15/16"
 DISTANCE BETWEEN CENTERS .......................... 48"
 TABLE SWIVEL, TOWARD WHEELHEAD .............. 9 DEGREES
              AWAY FROM WHEELHEAD ........... 2 DEGREES

  GRINDING WHEELHEAD:
 LOWER SWIVEL LEFT & RIGHT OF CENTER ............ 90 DEG.
 UPPER SWIVEL, RIGHT & LEFT ..................... 30 DEG.
 MOTOR .......................................... 5 HP
 GRINDING WHEEL SIZE ....... 14" WHEEL DIA. X 1-1/2" X 5"

  TABLE TRAVERSE:
 INF. VARIABLE TABLE SPEEDS ............. 3" TO 220" IPM
 HAND TABLE TRAVERSE PRE REVOLUTION OF HANDWHEEL
 (RAPID/SLOW) ............................ 15/16" / 0.2"

  CROSS FEED:
 AUTOMATIC INFEED AT TABLE REVERSAL:
 LOW ................................. 0.0002" TO .0005"
 HIGH ................................. .0005" TO .0125"
 WHEELHEAD MOVEMENT PER TURN OF HANDWHEEL:
 LOW ............................................ 0.050"
 HIGH ........................................... 0.250"
 MINIMUM INFEED ON DIAMETER ................... 0.00005"

  HEADSTOCK:
 MOTOR .......................................... 1 H.P.
 TAPER HOLE IN SPINDLES ........................ #9 B&S
 INF. VARIABLE WORKHEAD SPEEDS .......... 50 T0 500 RPM
 SPINDLE NOSE, AMERICAN STANDARD ................... 5"
 HEADSTOCK SWIVEL, TOWARD WHEELHEAD ............ 90 DEG.
                    AWAY FROM WHEELHEAD ....... 30 DEG.

 FLOOR SPACE FOR OPERATION:....................72" X 185"
 APPROX. DIMENSIONS:............ 166" L-R, 72" F-B, 66" H
 APPROX. MACHINE WEIGHT ...................... 12,800 LBS

 FULL HYDRAULIC OPERATION FEATURING:
 -POWER TABLE TRAVERSE

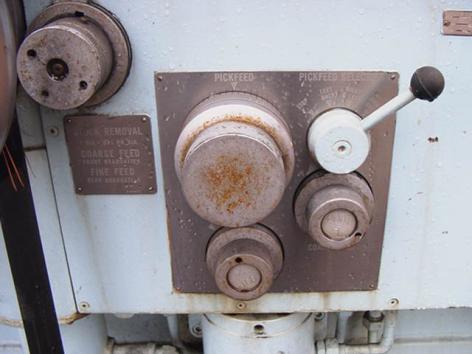

 -PICK FEED (AUTO INFEED)
 -PLUNGE
 -RAPID ADVANCE & RETRACTION OF WHEEL
 -SPARKOUT TIMER

 SWING DOWN I.D. ATTACHMENT W/SPINDLE

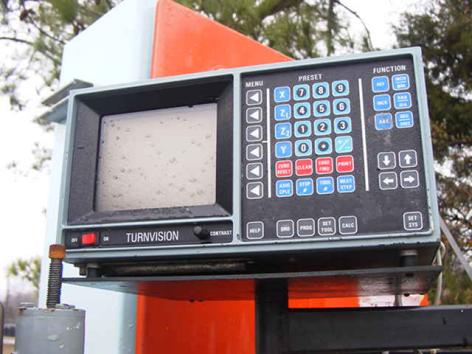

 "ACU-RITE" "TURNVISION" DIGITAL READOUT DISPLAY
 MACHINE WILL ACCEPT AN 14" WHEEL
 INFINITELY VARIABLE WORKHEAD SPINDLE SPEEDS
 WORKHEAD SPINDLE IS BOTH LIVE & DEAD

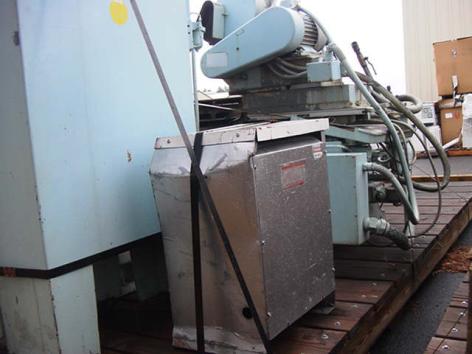

 ELECTRICAL CABINET
 SELF-CONTAINED COOLANT SYSTEM
 5 H.P./3/60/230-460 VOLT SPINDLE MOTOR
 PRESENTLY WIRED FOR 220 OR 230 VOLTS

 * PURCHASED FROM THE U.S. ARMY, RED RIVER ARMY DEPOT,
  HOOKS TEXAS .... PICTURES WERE TAKEN THERE *

 ** MACHINE HAS ARRIVED TO OUR HARRISON, NJ WAREHOUSE **
 ** INSPECT UNDER POWER IN OUR HARRISON, NJ FACILITY **
 ** EXCELLENT CONDITION & APPEARANCE **
