Reference Number: 140014

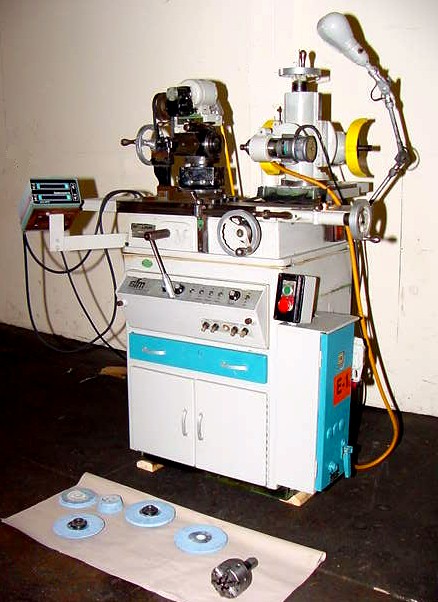

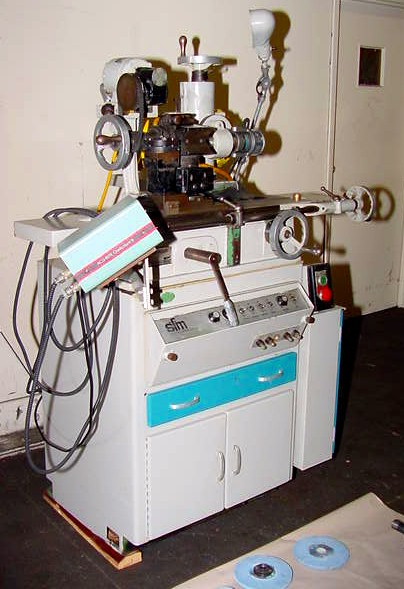

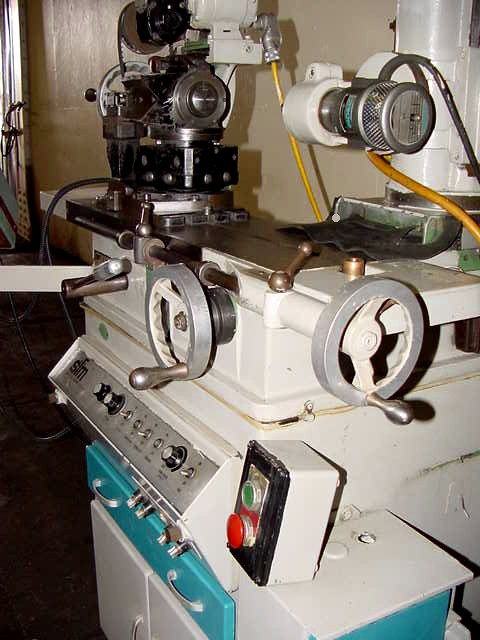

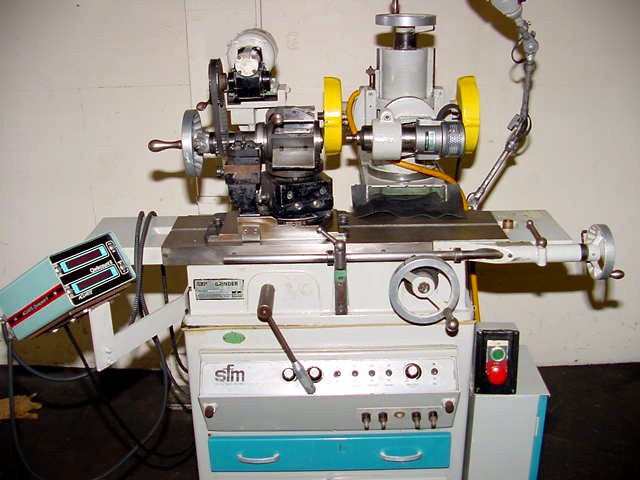

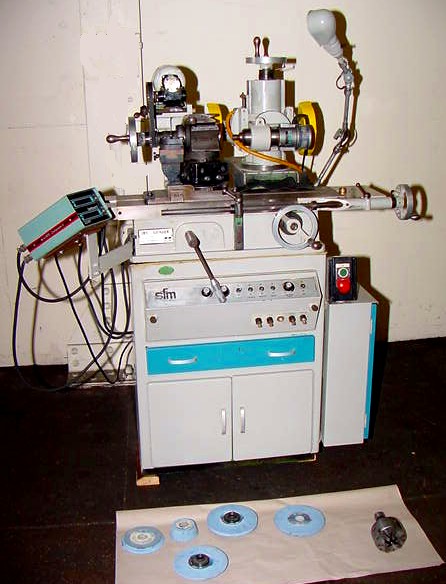

SENECA FALLS (ROYAL OAK) FORM RELIEVING GRINDERPrice: On Request

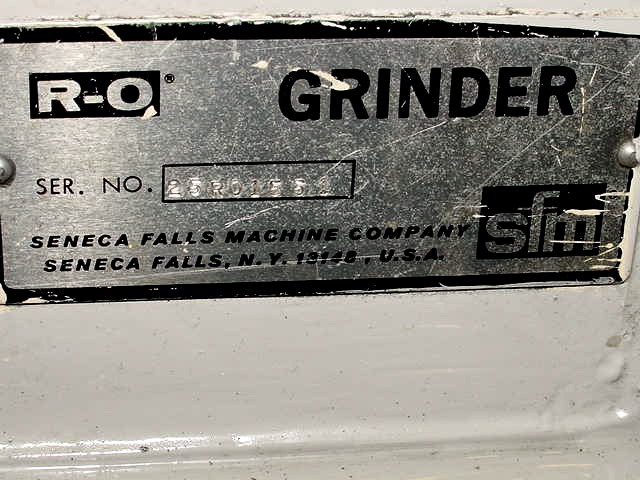

MODEL: 25R0 S/N: 25R01555 NEW: 1983
PLATEN TABLE SIZE ........................ 8-7/8" X 30"
PLATEN TABLE TRAVEL ............................... 16"
GRINDER COLUMN CROSS TRAVEL .................... 5-1/8"
GRINDER SPINDLE VERTICAL TRAVEL ................ 5-1/4"
GRINDER SPINDLE TILT ......... 25 DEGREES ABOVE & BELOW
GRINDER SPINDLE INDEXES ................... 360 DEGREES
MAXIMUM DIAMETER BETWEEN CENTERS OF FORM RELIEVING
FIXTURE WITH .......................... 1-3/4" SQUARE
CENTER HOLDING FIXTURE ....................... 5-1/2"
MAXIMUM LENGTH BETWEEN CENTER OF FORM RELIEVING
FIXTURE WITH .......................... 1-3/4" SQUARE
CENTER HOLDING FIXTURE ........................... 8"
MAXIMUM COLLET CAPACITY OF FORM RELIEVING
FIXTURE ...................................... 2-1/2"
APPROX. MACHINE WEIGHT ..................... 1,000 LBS.
EQUIPPED WITH:

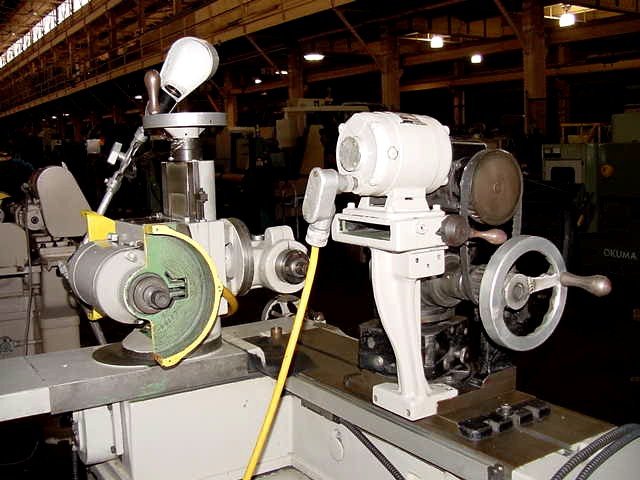

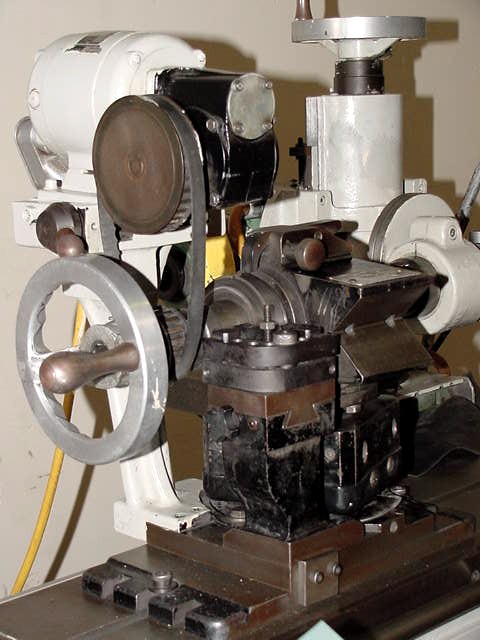

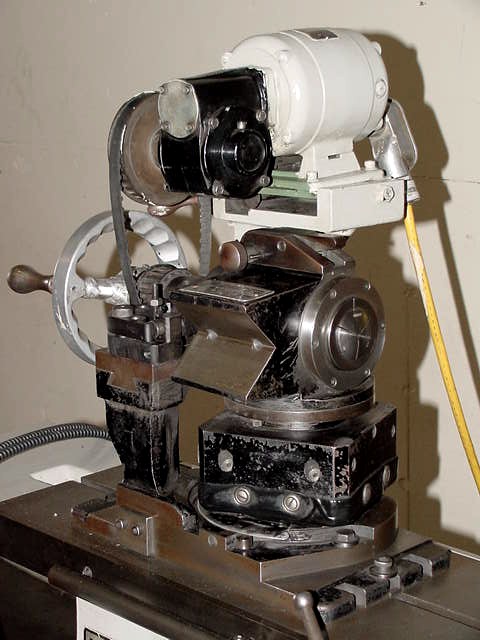

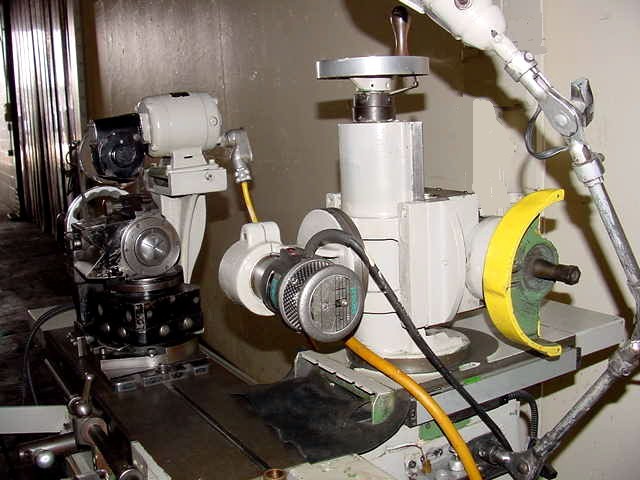

R-O MOTORIZED RELIEVING FIXTURE W/VARIABLE SPEED RHEOSTAT
CONTROL

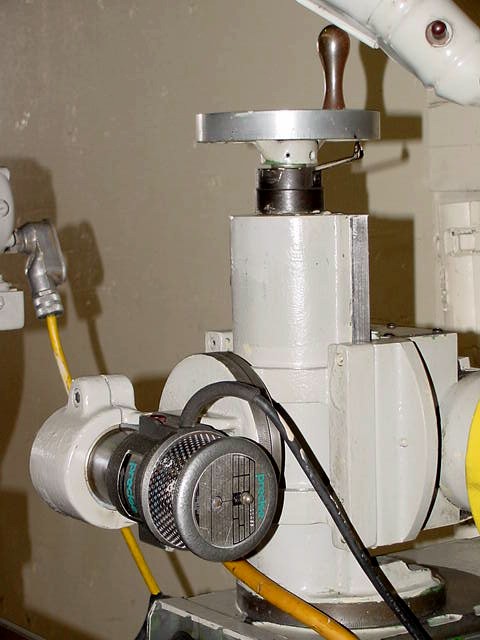

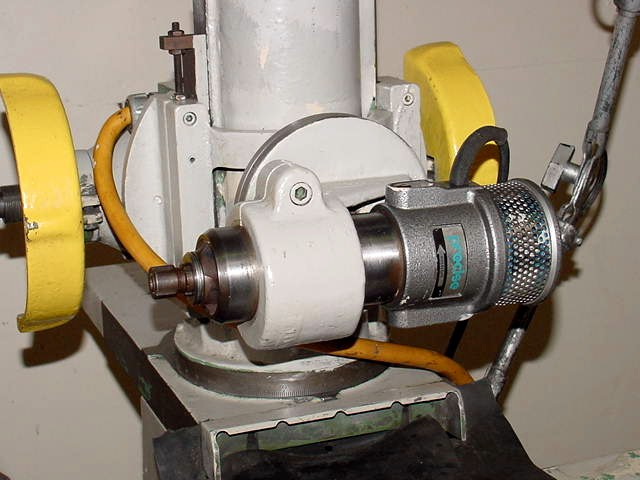

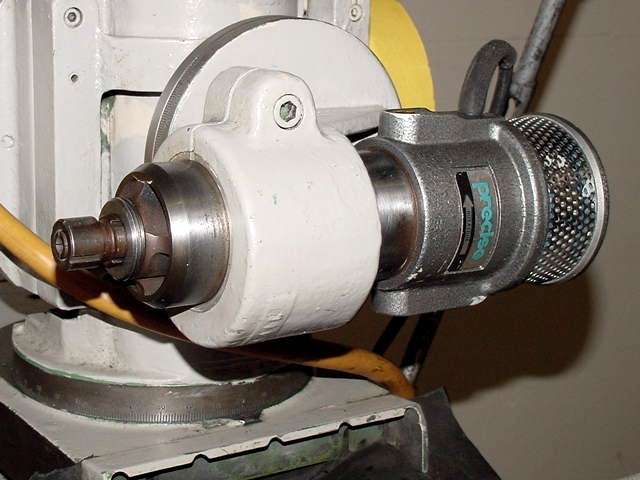

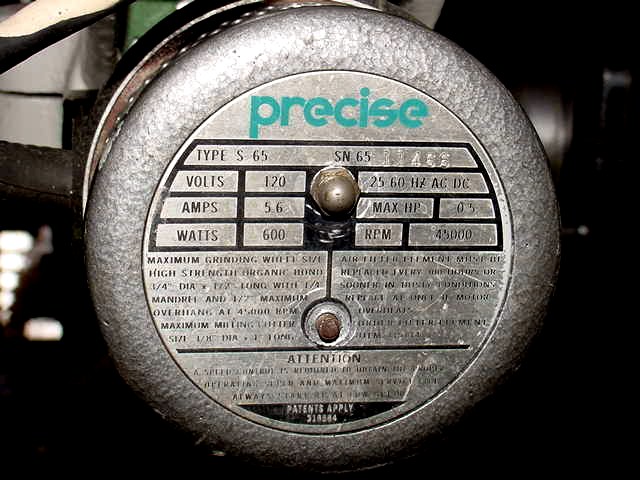

"PRECISE" HIGH SPEED I.D. GRINDING W/INFINITELY VARIABLE
SPINDLE CONTROLLER (UP TO 45,000 RPM)
5C COLLETS

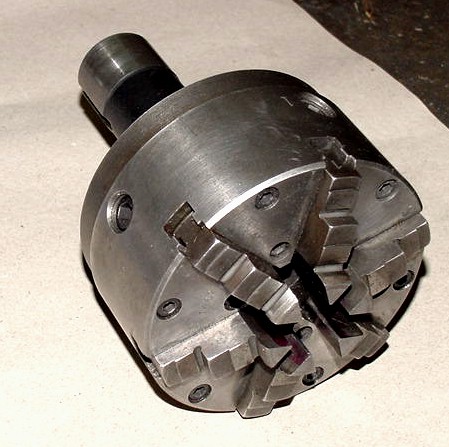

"BUCK" 6-JAW CHUCK

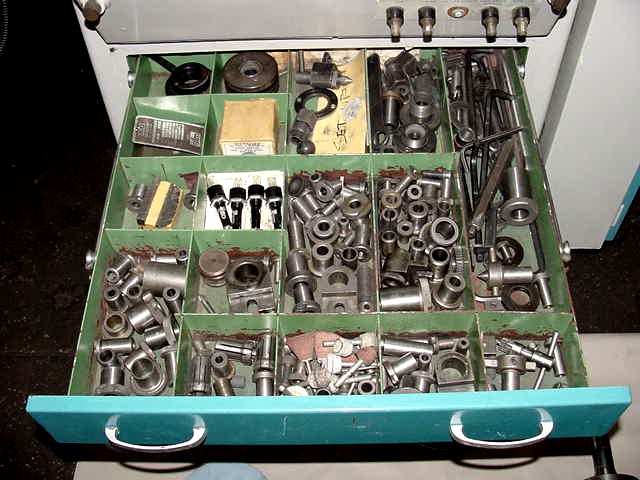

CAMS & INDEX PLATES

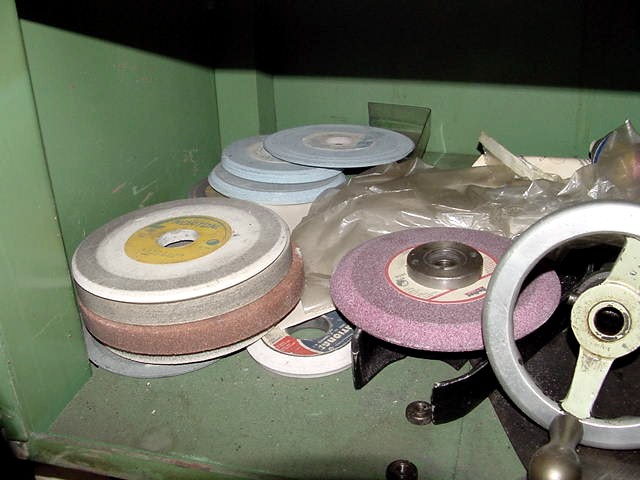

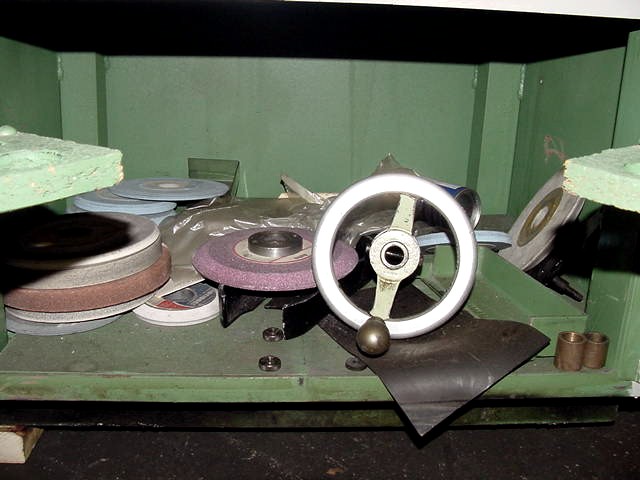

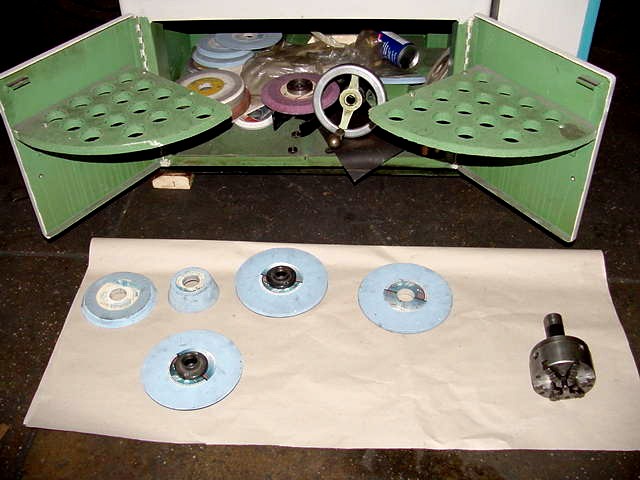

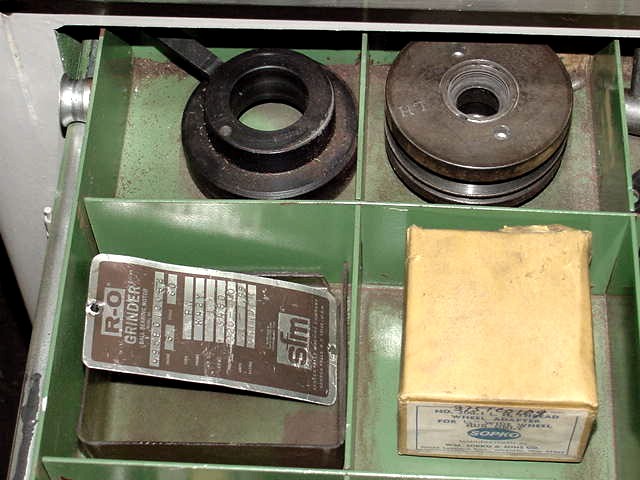

EXTRA WHEEL HUBS

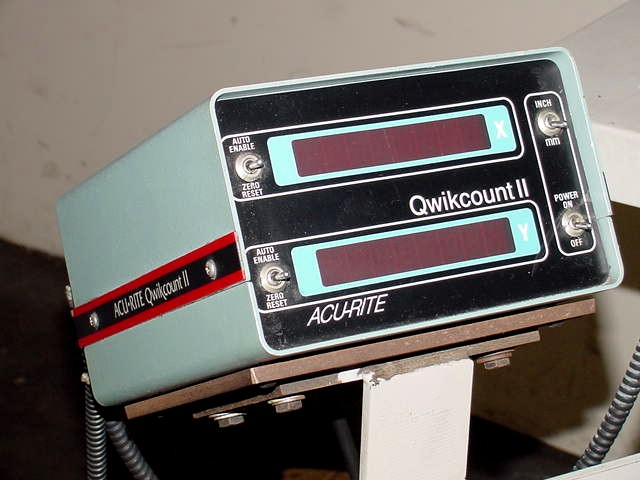

"ACU-RITE" 2-AXIS DIGITAL READOUT
R-O GRINDING WHEELHEAD W/1 H.P. MOTOR
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
*** EXCELLENT CONDITION & APPEARANCE ***
