Reference Number: 140016

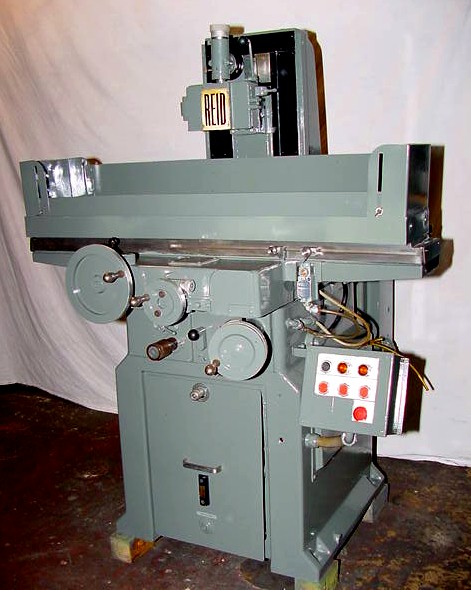

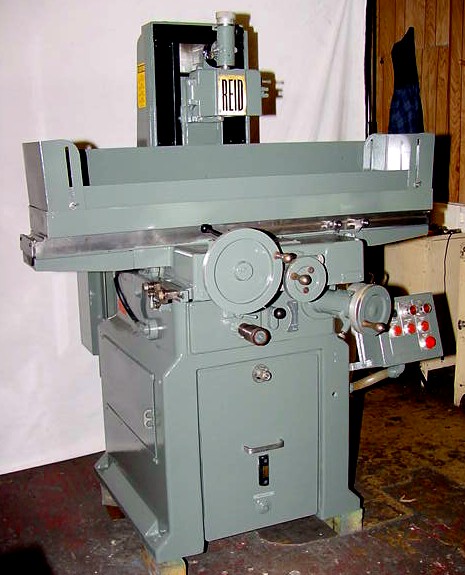

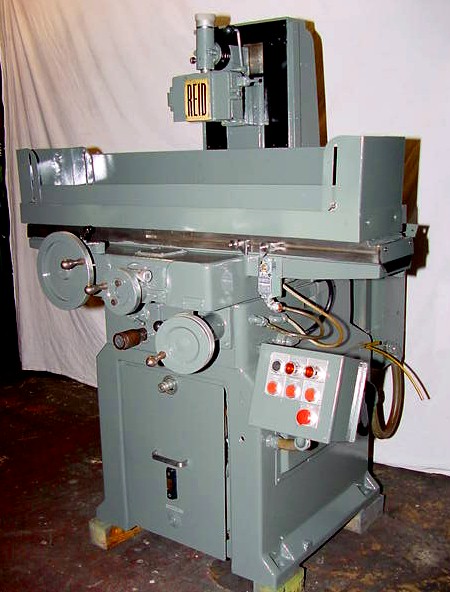

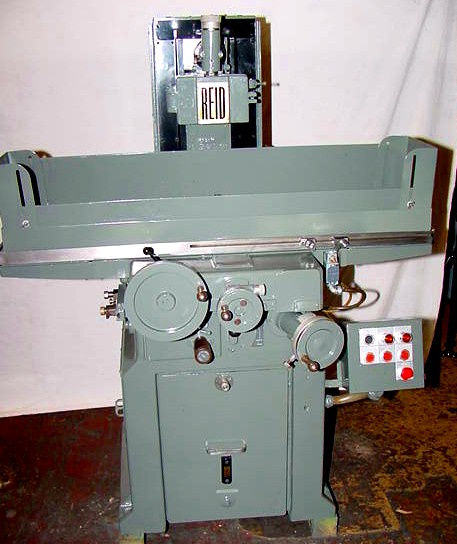

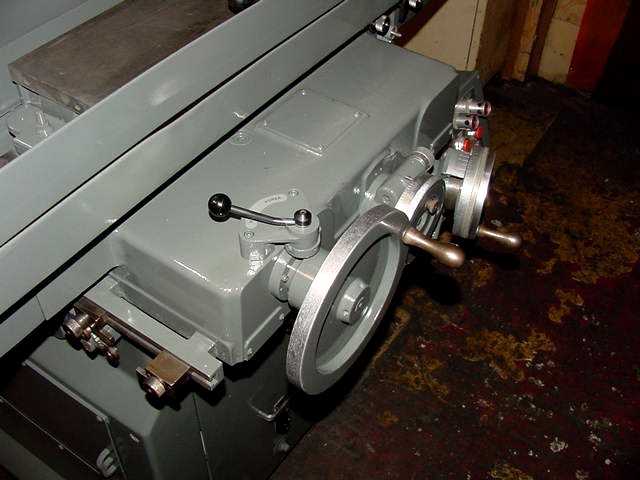

6" X 18" REID (MADE IN USA) HYDRAULIC SURFACE GRINDERPrice: On Request
MODEL: 618-HYD S/N: 30066FC NEW: 1987
WORK CAPACITY ................................ 6" X 18"
WORK HEIGHT UNDER 7" WHEEL ........................ 15"
MAXIMUM LONGITUDINAL TRAVEL ....................... 20"
MAXIMUM CROSS TRAVEL ............................... 7"

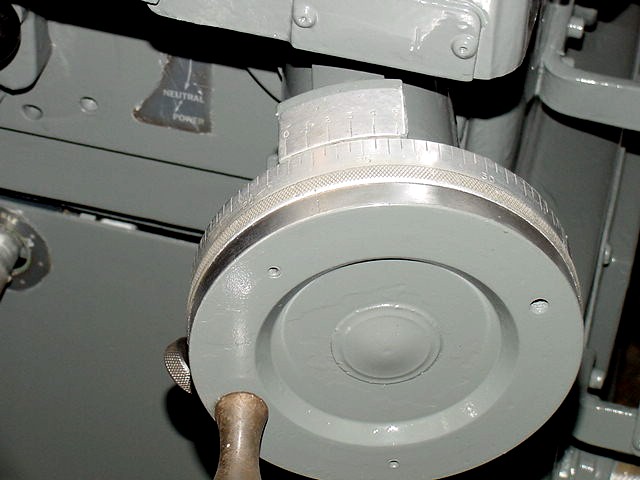

TABLE TRAVEL (LONG.) PER REV. OF HANDWHEEL .... 2-5/16"
CROSS FEED PER REV. OF HANDWHEEL ............... 0.125"
VERTICAL TRAVEL PER REV. OF HANDWHEEL .......... 0.050"
INF. VARIABLE POWER TABLE SPEEDS ...... 10' TO 125' FPM
AUTOMATIC CROSS FEED INCREMENT ......... 0.005 TO .250"
GRINDING WHEEL SIZE ................ 7" X 1/2" X 1-1/4"
APPROXIMATE WEIGHT .......................... 2,500 LBS
EQUIPPED WITH:

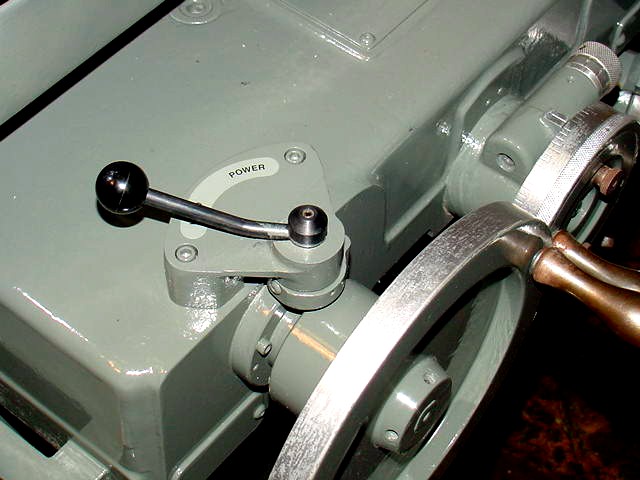

HYDRAULIC LONGITUDINAL & CROSS FEEDS

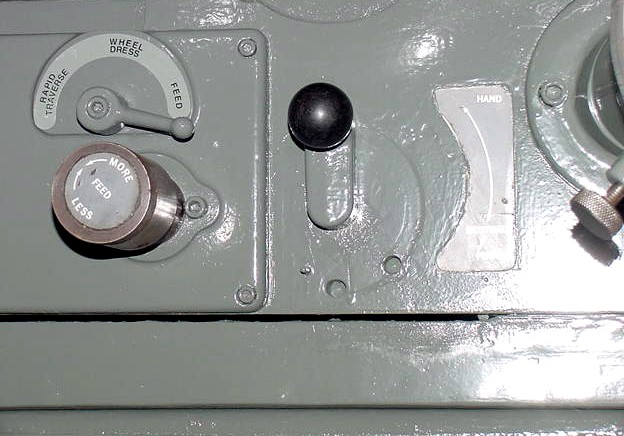

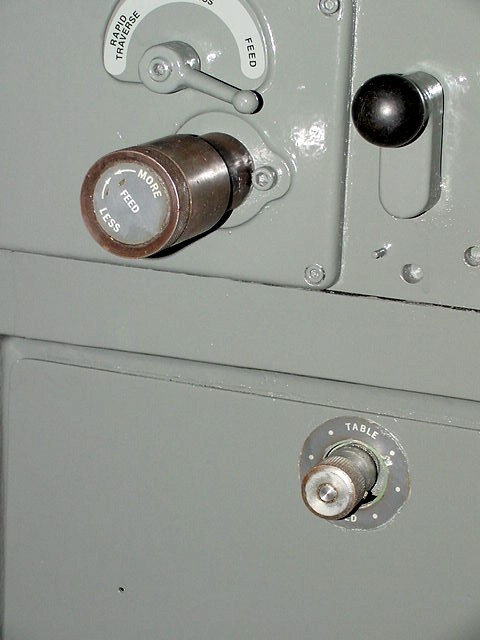

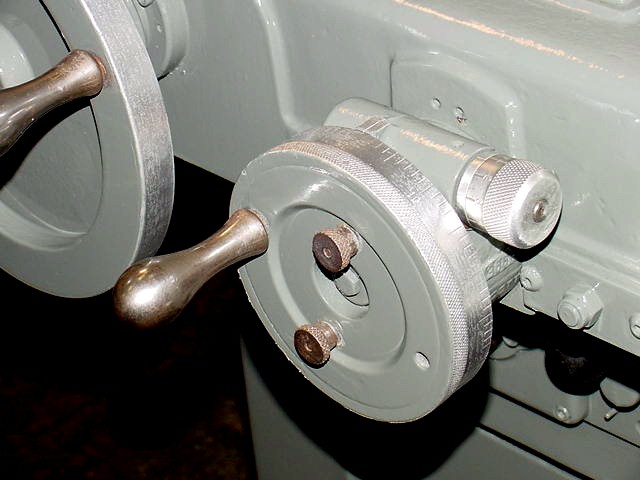

FINE FEED KNOB FOR CROSSFEED

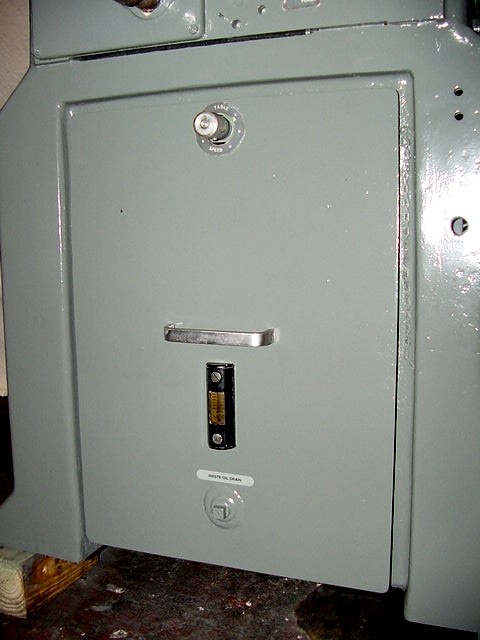

SELF-CONTAINED HYDRAULIC SYSTEM
HEAVY, RIBBED CAST IRON CONSTRUCTION
AUTOMATIC LUBRICATION SYSTEM

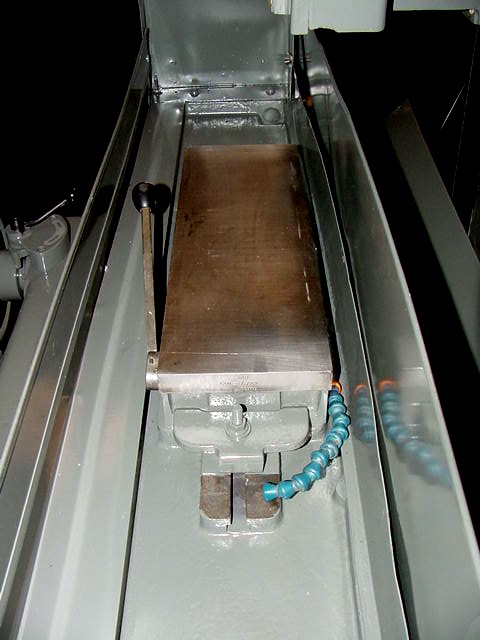

6" X 18" O.S. WALKER FINE-DIVISION PERMANENT MAGNETIC CHUCK

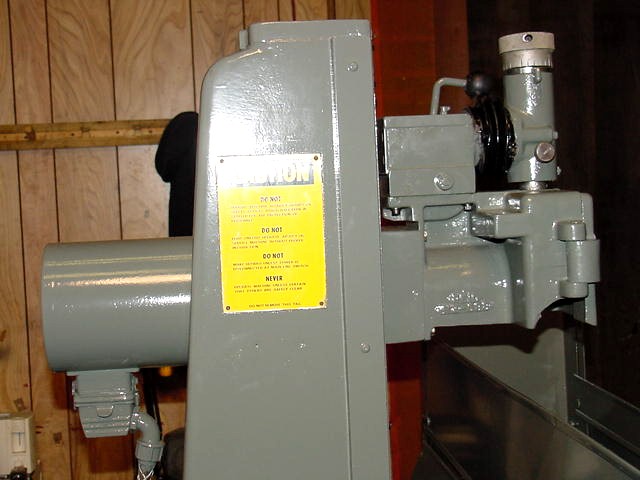

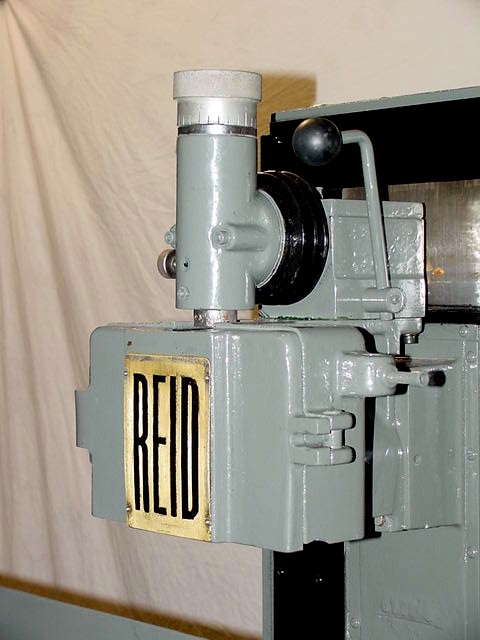

OVER-THE-WHEEL WHEEL DRESSER w/MICROMETER ADJUSTMENT
COOLANT SYSTEM w/TANK, PUMP, SPLASH GUARDS, ETC.

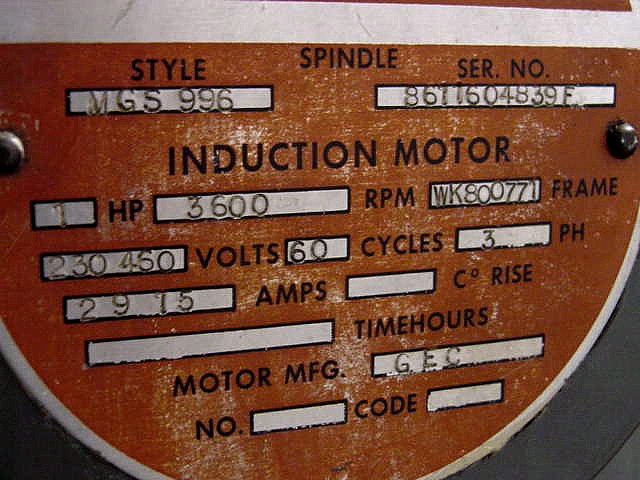

1 HP "REID" 3/60/230-460 VOLT DIRECT DRIVE
SUPER-PRECISION SPINDLE

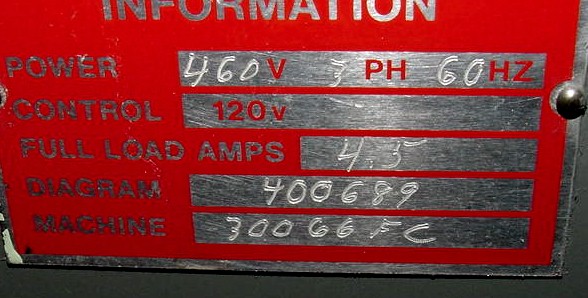

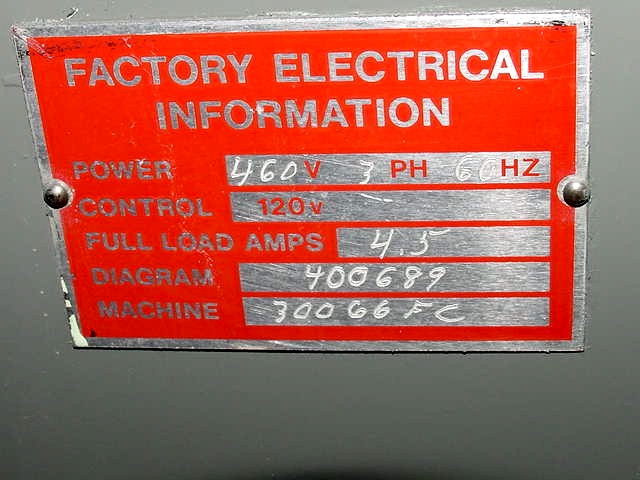

MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS
** EXCELLENT CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
