Reference Number: 140032

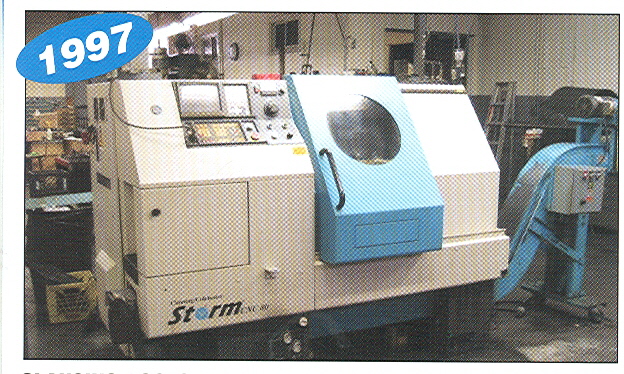

CLAUSING/COLCHESTER STORM 80 2Axes CNC Slant Bed Turning Center, S/N T70065,

 New 1997 (low hours)

 Specifications:
 Swing over bed covers ...................... 16.54"

 Swing over carriage cover .................. 11.02"

 Max. turning diameter ...................... 6.69"

 X-axis travel .............................. 6.5"

 Z-axis travel .............................. 13.78"

 Carriage inclination ....................... 60º (slant)

 Spindle center height from floor ........... 34.45"

 Spindle nose ............................... A2-5

 Spindle bore ............................... 2.13"

 Bar capacity ............................... 1.65"

 Spindle front bearing internal diameter .... 3.15"

 Max. spindle speed ......................... 6000 RPM

 X and Z axis rapid traverse rate ........... 394/591 IPM

 Turret tool disc diameter .................. 13.39"

 Tooling type ............................... VDI 3425/30

 Turning tool shank dimensions .............. .787" x .787"

 Max. boring bar diameter ................... 1.26"

 Max. travel below center line .............. .866"

 Cross-slide width .......................... 8.39"

 Width over linear guide ways ............... 7.36"

 Bed width .................................. 11.97"



 EQUIPPED WITH:
  - GE Fanuc 21T-B CNC CONTROL w/RS232 Port
  - 6" 3-Jaw Hydraulic Chuck
  - 12 Station Turret
  - Programmable tailstock
  - Automatic chip conveyor
  - Flood coolant system
  - (26) Turret tool holders with misc. tooling
  - 15 HP Spindle Drive
  - 3/60/230 Volt electrics with transformers for 3/60/208 Volt input

  Condition: Excellent
  Approx. Weight: 5075 lbs
